Rock5 Model B ROLLOUT

Rock5 Model B ROLLOUT
$129.00

PLEASE NOTE: ordering this ROLLOUT version without pre-order code will not ship until all pre-orders have been sent out.

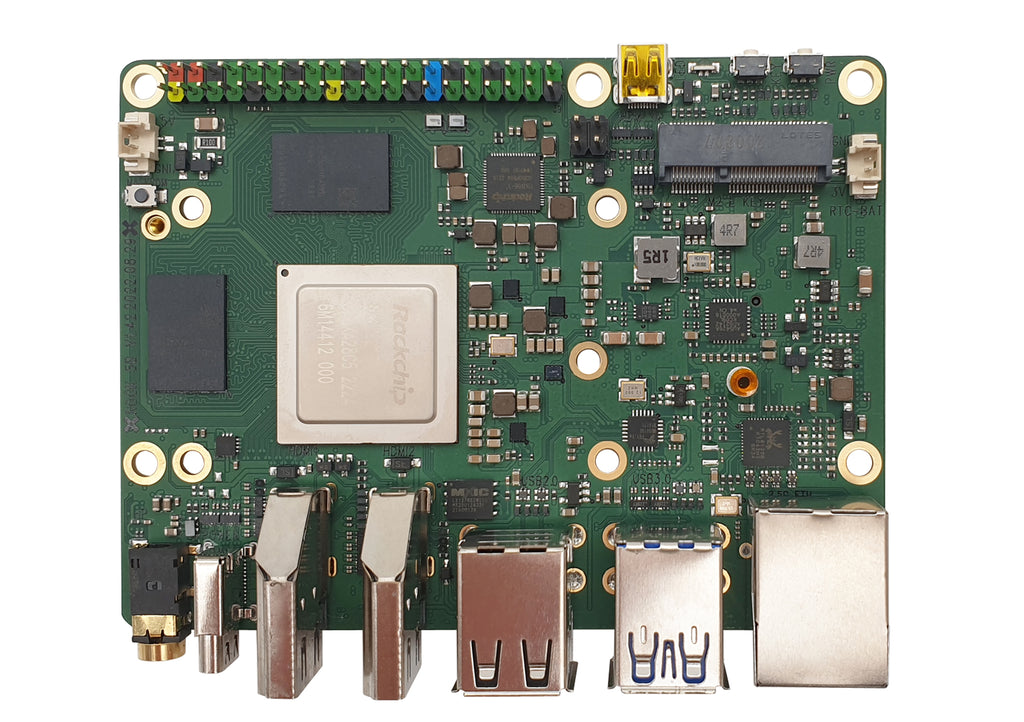

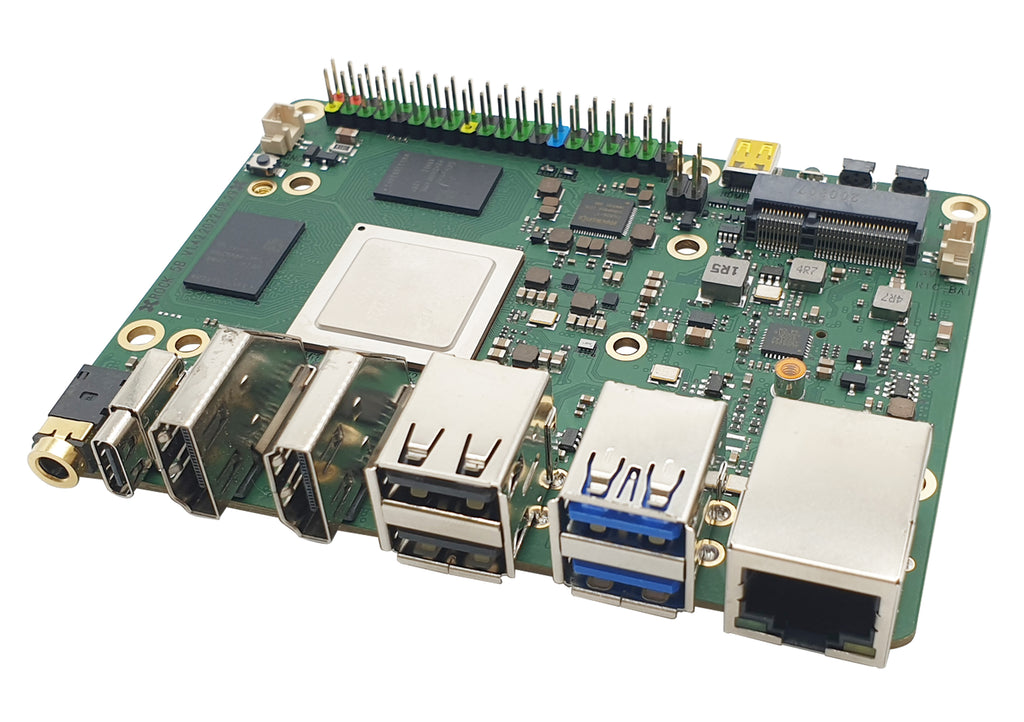

Rockchip RK3588 64bit octa core ARM based SBC

RADXA´s latest generation SBC based on the just released Rockchip RK3588 in the new standard form factor. Leading edge SOC technology (8nm manufacturing process) combined with a packed feature set and highest  SBC development skills will define new standards in the global SBC market. They are completed with competitive pricing and allows this SBC to open new market segments.

PLEASE NOTE: ordering this ROLLOUT version without pre-order code will not ship until all pre-orders have been sent out.



Rockchip RK3588 64bit octa core ARM based SBC

RADXA´s latest generation SBC based on the just released Rockchip RK3588 in the new standard form factor. Leading edge SOC technology (8nm manufacturing process) combined with a packed feature set and highest  SBC development skills will define new standards in the global SBC market. They are completed with competitive pricing and allows this SBC to open new market segments.

Rock5 Model B product details*

RK3588 64bit octa core processor

Quad Core A76 2.4GHz + Quad Core A55 1.8GHz

GPU

Mali G610MP4 GPU (up to 5 channel 4k UI)

8K 10bit decoder, 8K encoder

NPU

6T NPU

Memory LPDDR4

LPDDR4x with 4, 8 or 16GB

SPI Flash

32MB SPI flash soldered

Wifi/BT

WiFi 6E and BT5.2 support

eMMC module (removable)

Industrial level high performance eMMC storage, 16G/32G/64G/128G available

Micro SD card

uSD slot supports up to 128G uSD card

M.2 Interfaces

M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes

M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported

Display HDMI

Triple display support (with HDR)

2x HDMI 2.1 up to 8k@60FPS

1x USB-C with DP up to 8K@30FPS

HDMI in with up to 4K@60FPS

1x MIPI DSI

Peripherals

MIPI DSI 2 lanes via FPC connector

HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.

Audio 3.5mm jack with mic

HD codec that supports up to 24-bit/96kHz audio.

Camera MIPI CSI

MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

USB 3.0 HOST x3

1x USB-C

2x USB-A

Network

Wireless / Bluetooth

WiFi 6E and BT5.2

LAN

2.5GbE LAN with PoE support

additional HAT is required for powering via PoE

IO 40-pin expansion header :

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others

RTC battery connector for time backup

Power USB PD (new generation QC/PD protocol IC)

Support USB Type C PD 2.0, 9V/2A, 12V/2A

Power Supply Qualcomm® Quick Charge™

Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

Size 100mm x 72mm (Pico ITX form factor)



Essentials You Need

  • ROCK5 Model B
  • PD/QC compliant power adapter with USB- C port equal or larger than 15W
  • Keyboard & Mouse
  • Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

*certain technical specs can be subject to change without notice

Purchasing & Delivery

You may be liable for import duties, sales tax, or customs processing fees. It's your responsibility to ensure you're fully aware of the local requirements for importing goods from China to your location. We cannot offer any refunds due to unexpected charges applied locally. We are required to include a commercial invoice with all shipments.

EU SHIPMENTS JULY 1st 2021

Since July 1st, 2020 EU buyers are obliged to pay local VAT on all orders shipped. The previously VAT free value of up to €22 has been cancelled. Instead there is a new regulation for goods imported to the EU for values up to €150. (i.e. not subject to excise duties)

Because ALLNET China is not able to pre-collect the related VAT on the checkout yet, you will be contacted directly when the parcel arrives in your country and asked to pay the outstanding amount.

After that the parcel will be delivered to you like before. We work on a solution to make this more convenient for you and hope to present it to you soon.

IMPORTANT NOTICE! If the requested payments from the EU tax authorities are not balanced, the parcels will be either destroyed or returned to us. In this case we unfortunately can not refund both shipment cost and product price. The return process creates high cost on administration, shipment and re-import which have to be covered.
