DC Connector wired for e.g. QuinLED Dig Uno
New
translation missing: en.products.product.regular_price $1.90

For a convenient testing environment with your controller

translation missing: en.products.product.regular_price $1.90

For a convenient testing environment with your controller

  • DC connector with screw terminal
  • DC 5.5/2.5 barrel
  • max 5A current
  • cable length 6cm
DC12V 5A (60W) wall plug Power Supply
New
translation missing: en.products.product.regular_price $10.98

Universal and flexible 12V 5A DC power supply with exchangeable power plug

Stable and sufficient power for your Sata HAT and SATA KIT setup!

translation missing: en.products.product.regular_price $10.98

Universal and flexible 12V 5A DC power supply with exchangeable power plug

Stable and sufficient power for your Sata HAT and SATA KIT setup!

INPUT

  • 100-240V
  • ~ 50/60Hz 1.5A

OUTPUT

  • Regulated +12VD
  • Current 5A

CERTIFICATES

  • CE, GS, CB, UL/CUL, FCC, PSE, CCC, RoHS, Reach

SPECIAL

  • exchangeable power plug for US, EU, UK, AU
  • (other country plugs on request)

DIMENSION

  • 100x50x40mm
  • wire length 1m
  • DC Barrel (5.5x2.5) 90°

PRODUCT CONTENT

  • power supply
  • country plug
  • additional country plugs (optional)
DC5V 6A (30W) wall plug Power Supply
New
translation missing: en.products.product.regular_price $8.40

Universal and flexible 5V 6A DC power supply

Stable and sufficient power for your e.g. Rock Pi 4 Model C+!

translation missing: en.products.product.regular_price $8.40

Universal and flexible 5V 6A DC power supply

Stable and sufficient power for your e.g. Rock Pi 4 Model C+!

INPUT

  • 100-240V
  • ~ 50/60Hz 1.5A

OUTPUT

  • Regulated +5VD
  • Current 6A

CERTIFICATES

  • CE, GS, CB, UL/CUL, FCC, PSE, CCC, RoHS, Reach

DIMENSION

  • 100x50x40mm
  • wire length 1.5m
  • Type C Connector

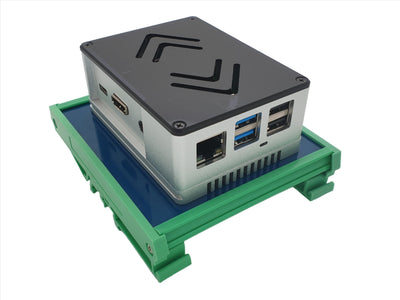

    DIN Rail Kit including ecoPI PRO Aluminum housing

    Get your ROCK 4 / 4 SE properly mounted in your equipment racks.

    This products sells as kit with the ecoPI PRO aluminum housing.

    $36.00

    Get your ROCK 4 / 4 SE properly mounted in your equipment racks.

    This products sells as kit with the ecoPI PRO aluminum housing.

    Use your ROCK 4 as e.g. PoE powered home automation server

    Product Content:

    • DIN Rail Mount Kit
    • ecoPI PRO LP/ HP housing
    DisplayPort 1.4 to HDMI 2.0 8K UHD
    translation missing: en.products.product.regular_price $29.80

    High performance DisplayPort -> HDMI 2.0 8K UHD cable

    • 8K@30HZ, 4K@60Hz
    • only DP to HDMI directional support
    • aluminum shells
    • Nylon braided cable protection
    • Gold plated connectors
    • 1.8m
    translation missing: en.products.product.regular_price $29.80

    High performance DisplayPort -> HDMI 2.0 8K UHD cable

    • 8K@30HZ, 4K@60Hz
    • only DP to HDMI directional support
    • aluminum shells
    • Nylon braided cable protection
    • Gold plated connectors
    • 1.8m
    Dual band antenna kit for Rock Pi S case
    New
    translation missing: en.products.product.regular_price $2.49

    Extend the signal of your Rock Pi S WiFi with this dual band antenna kit

    translation missing: en.products.product.regular_price $2.49

    Extend the signal of your Rock Pi S WiFi with this dual band antenna kit

    • 90° pigtail for case assembly
    • Fixed 90° antenna with especially short sma connector
    • 2.4/5GHz dual band antenna

    Product Content:

    • Pigtail with uFL and 6cm cable
    • Dual band antenna 5.7cm

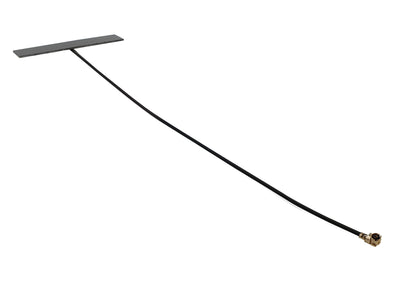

    Dual Frequency PCB WIFI Antenna
    New
    translation missing: en.products.product.regular_price $1.49

    For use in small cases where extended signal is needed

    • WiFi 2.4/5.8GHz
    • 3dBi gain
    • uFL Female connector
    • 15cm cable length
    • adhesive tape
    translation missing: en.products.product.regular_price $1.49

    For use in small cases where extended signal is needed

    • WiFi 2.4/5.8GHz
    • 3dBi gain
    • uFL Female connector
    • 15cm cable length
    • adhesive tape
    Dual Frequency PCB WIFI Antenna short
    New
    translation missing: en.products.product.regular_price $1.10

    For use with e.g. CM3 in small cases where extended signal is needed

    • WiFi 2.4/5.8GHz
    • 3dBi gain
    • uFL Female connector
    • 6cm cable length
    • adhesive tape
    translation missing: en.products.product.regular_price $1.10

    For use with e.g. CM3 in small cases where extended signal is needed

    • WiFi 2.4/5.8GHz
    • 3dBi gain
    • uFL Female connector
    • 6cm cable length
    • adhesive tape

    Build your NAS based on Raspberry Pi 3/4 or Rock Pi 4  with up to 4 HDD/SSD and up to a capacity of 20TB. (depending on your setup)

    Dual/Quad SATA HAT utilizes the dual USB3 bus on the Raspberry Pi 4

    $25.00 Sold Out

    Build your NAS based on Raspberry Pi 3/4 or Rock Pi 4  with up to 4 HDD/SSD and up to a capacity of 20TB. (depending on your setup)

    Dual/Quad SATA HAT utilizes the dual USB3 bus on the Raspberry Pi 4

    Features

    • up to 4x HDD/SSD´s - 2.5 or 3.5inch storage is supported
    • utilizes two independent USB3 buses on Raspberry Pi 4
    • 12V DC Type power input for powering 2.5inch drives and Raspberry Pi 4
    • External standard ATX power supply support for 3.5inch HDD´s
    • PWM Fan and heatsink for Raspberry Pi 4 CPU cooling
    • HDD suspend mode supported
    • UASP support
    • Software RAID 0/1/5 support
    • Optional Top board with PWM controlled fan for HDD heat dispatch, OLED display for IP address, storage and status information and function assignable switch

    For 3.5inch HDD setups, a 12V 5A DC PS or standard ATX PSU is recommended to power the HDD´s and the Raspberry Pi. With 4x 3.5inch HDD´s the PSU should provide at least 60W or more.

     PLEASE NOTE: ! DOES NOT FIT THE PREVIOUS CASE KIT !

    For 2.5inch HDD setups the 12V DC 4A power adapter ( >=30W power adapter ) is sufficient to power the disk drives and the Raspberry Pi 4 together.

    It is important to mention that the power connector on the SATA HAT must be used to power up the NAS with Raspberry Pi 4.



    Performance

    The Quad SATA HAT utilizes two high performance JMS561 (one JMS561 for the Dual SATA HAT) and provides up to 400MB/s read/write performance with four disks in RAID0 mode.

     Product Content

    Dual or Quad SATA HAT board
    USB3.0 Connection adapter
    Screws and brass bolts for mounting the HAT on top of the RASPI4
    PWM controlled active heat-sink for the Raspi 4 CPU

     optional: SATA HAT Top Board



    What you need to run this NAS?

    For 2.5inch HDD operation

    12V DC 4A/5A Power adapter
    2.5inch HDD/SSD
    Raspberry Pi 4 with OS running

    For 3.5inch HDD operation

    12V DC 5A or ATX PSU > 60W
    3.5inch HDDs

    SATA cables
    Raspberry Pi 4 with OS running

     PLEASE NOTE: ! DOES NOT FIT THE PREVIOUS CASE KIT !



    ecoPI Easycase 0815               wood housing for ROCK 4
    translation missing: en.products.product.regular_price $4.50

    Put your ROCK 4 into this beautiful wood housing

    Easy to assemble, protective for the PCB and flexible. M.2 Extension board can be mounted,

    translation missing: en.products.product.regular_price $4.50

    Put your ROCK 4 into this beautiful wood housing

    Easy to assemble, protective for the PCB and flexible. M.2 Extension board can be mounted, M.2 Extension cable is long enough to as well allow the micro SD card to be inserted if needed.

    Build e.g. your own media-player, use a Bluetooth remote control (coming soon) to e.g. manage AndroidTV and installed applications on it.

    Recycled FSC certified wood is used for production.

    Does only work with the big heat-sink.

    We do add a longer ribbon cable to allow the insertion of the microSD card together with the M.2 extension board.

    ecoPI Easycase Developer wood housing for ROCK 4
    translation missing: en.products.product.regular_price $4.50

    Put your ROCK 4 into this beautiful wood housing.

    Easy to assemble, protective for the PCB and flexible. M.2 Extension board can be mounted,

    translation missing: en.products.product.regular_price $4.50

    Put your ROCK 4 into this beautiful wood housing.

    Easy to assemble, protective for the PCB and flexible. M.2 Extension board can be mounted,

    M.2 Extension cable is long enough to as well allow the micro SD card to be inserted if needed.

    The camera, display and GPIO openings allow the full utilization of the ROCK 4.

    Build e.g. your own media-player, use a Bluetooth remote control (coming soon) to e.g. manage AndroidTV and installed applications on it.

    Recycled FSC certified wood is used for production.

    Does only work with the big heat-sink.

    We do add a longer ribbon cable to allow the insertion of the microSD card together with the M.2 extension board.

    Product does not include M.2 Extension board, microSD card or development HAT.

    ecoPI PRO HP Aluminum housing for ROCK 3A

    Luxury version for the engaged ROCK 3A fan with additional height!

    Perfect as media player or server with e.g. the M.2 Extension board option

    $19.90

    Luxury version for the engaged ROCK 3A fan with additional height!

    Perfect as media player or server with e.g. the M.2 Extension board option

    • sufficient height for assembly of the M.2 Extension board including SSD heatsink up to 5mm thickness inside of the housing
    • Easy access to the board
    • remove only 4 screws to get complete access to your ROCK 3A
    • attractive clean design
    • very convenient access to SD card slot or M.2 slot without opening the case
    • setup or develop open, run it closed..
    • has enough height to get the PoE hat into the closed case (only Rock Pi 3A Variants!)
    • external antenna hole
    • on/off button access
    • Dimension 94x71x47mm

    Package content

    • Aluminum housing
    • acrylic cover
    • screws
    • silicon feet

    Perfect as media player or server with the M.2 Extension board option

    Assembly instructions (Rock Pi 4A/B) will be updated asap:

    QIG

    QIG with M.2

    QIG with PoE hat (watch our video here)
