StarFive
High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU
StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.
This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.
High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU
StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.
This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.
Technical Details:
Processor
- StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
- IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)
Memory
- 4GB, 8GB LPDDR4 (up to 2800Mbps)
Storage
- Onboard TF card slot
- Flash
- eMMC socket for optional eMMC module up to 128GB
- M.2 NVMe SSD slot
Wireless Connectivity
- WiFi dongle (only for WiFi board variants)
Video Output
- 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
- 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
- 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps
Camera
- 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps
Encoder/Decoder
- Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
- Video encoder supports up to 1080p@30fps and multi-stream for H265
- JPEG encoder/decoder
Peripherals
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
- 2x RJ45 Ethernet Connector
- 3.5 mm Audio jack (4-pole stereo audio output)
- M.2 Connector
- eMMC Socket
- 2 pin fan header
- Micro-SD card slot for system boot and data storage
- Reset and Power Button
Power Supply
- Power 5V DC with PD, up to 30W
Power Connector
- USB Type-C port or 40-pin GPIO header
Dimension
- 100mm x 72 mm
Compliance
- RoHS, FCC, CE
Connect to the StarFive VisionFive ecosystem here: rvspace.org
High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU
StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.
This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more. ! Please note the expected delivery time for both variants at the bottom of this page. !
High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU
StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.
This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more. ! Please note the expected delivery time for both variants at the bottom of this page. !
Technical Details:
Processor
- StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
- IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)
Memory
- 2GB, 4GB, 8GB LPDDR4 (up to 2800Mbps)
Storage
- Onboard TF card slot
- Flash
Wireless Connectivity
- WiFi dongle (only for WiFi board variants)
Video Output
- 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
- 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
- 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps
Camera
- 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps
Encoder/Decoder
- Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
- Video encoder supports up to 1080p@30fps and multi-stream for H265
- JPEG encoder/decoder
Peripherals
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
- 2x RJ45 Ethernet Connector
- 3.5 mm Audio jack (4-pole stereo audio output)
- M.2 Connector
- eMMC Socket
- 2 pin fan header
- Micro-SD card slot for system boot and data storage
- Reset and Power Button
Power Supply
- Power 5V DC with PD, up to 30W
Power Connector
- USB Type-C port or 40-pin GPIO header
Dimension
- 100mm x 72 mm
Compliance
- RoHS, FCC, CE
*)
Super Early Bird
StarFive VisionFive2 Single Board Computer
Dual Lan port with 1x 10/100 Mbit and 1x 1Gbit
EXPECTED DELIVERY DATE 15th DEC 2022
Early Bird Version
StarFive VisionFive2 Single Board Computer
Dual Lan port with 2x 1Gbit
EXPECTED DELIVERY DATE 15th February 2023
Upgrade RADXA boards 3B and 5B with active heat management.
Works as well with e.g. Starfive VisionFive SBC
Upgrade RADXA boards 3B and 5B with active heat management.
Works as well with e.g. Starfive VisionFive SBC
The hardware is experimental and strictly for engineering and development purposes only!
VisionFive is world's first generation of affordable RISC-V boards designed to run Linux. Based on RISC-V architecture, VisionFive pushes open-source to the next level and gives developers more freedom and power to innovate and design industry-leading solutions.
Connect to the StarFive VisionFive ecosystem here: rvspace.org
The hardware is experimental and strictly for engineering and development purposes only!
VisionFive is world's first generation of affordable RISC-V boards designed to run Linux. Based on RISC-V architecture, VisionFive pushes open-source to the next level and gives developers more freedom and power to innovate and design industry-leading solutions.
Connect to the StarFive VisionFive ecosystem here: rvspace.org
Technical Details:
Processor
- RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 2MB L2 cache @ 1.0GHz
- Vision DSP Tensilica-VP6 for computing vision @ 600MHz
- NVDLA Engine (configuration 2048 MACs @ 800MHz)
- Neural Network Engine (1024MACs @ 500MHz)
Memory
- 8GB LPDDR4
Wireless Connectivity
- 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- Bluetooth 4.2 (BLE)
Video Processing
- 2 x MIPI-CSI (up to 4K@30fps), 1 x MIPI-DSI (up to 4K@30fps)
- 1 x HDMI 1.4 (up to 1080p@60fps display)
- Video Decoder (H264/H265) up to 4K@60fps; Support Dual stream decoding for 2K@30fps each
- Dual channels of ISP, each channel support up to 4K@30FPS
- Support MIPI-CSI TX for video output after ISP and AI processing
- JPEG encoder/decoder
Dedicated Audio Processing DSP and Sub-system
- Ultra-low power Voice Activity Detector for audio bit-stream as a Voice Trigger
- On-chip Audio DAC
- Support DMIC and AMIC, up to 4 channels
Peripherals
- 4 x USB 3.0 ports
- 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
- Gigabit Ethernet Connector
- 3.5 mm Audio jack (4-pole stereo audio output)
- Micro-SD card slot for system boot and data storage
- Support TRNG and OTP
- Support DMAC, QSPI and other peripheral
- Reset and Power Button
Power Supply
- Power supply PD/QC 9V/12V/15V/20V 2A
Power Connector
- USB Type-C port or 40-pin GPIO header
Dimension
100 mm × 72 mm
Remarks
Connect to the StarFive VisionFive ecosystem here: rvspace.org
- The hardware is experimental and strictly for engineering and development purposes only! -
Starter Kit content
StarFive VisionFive Single Board Computer
Heatsink with fan
32GB SD card with pre-flashed Fedora OS
Advanced Kit content
StarFive VisionFive Single Board Computer
Heatsink with fan
32GB SD card with pre-flashed Fedora OS

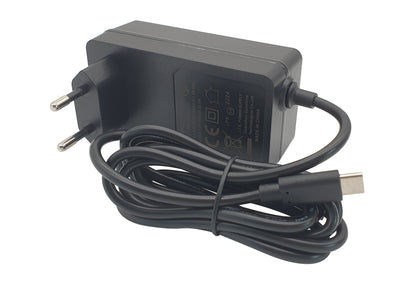

Power supply
USB-A to USB-C power/data cable
40 pin pin-header extension
Acrylic protector case incl. mounting spacers and WiFi antenna
