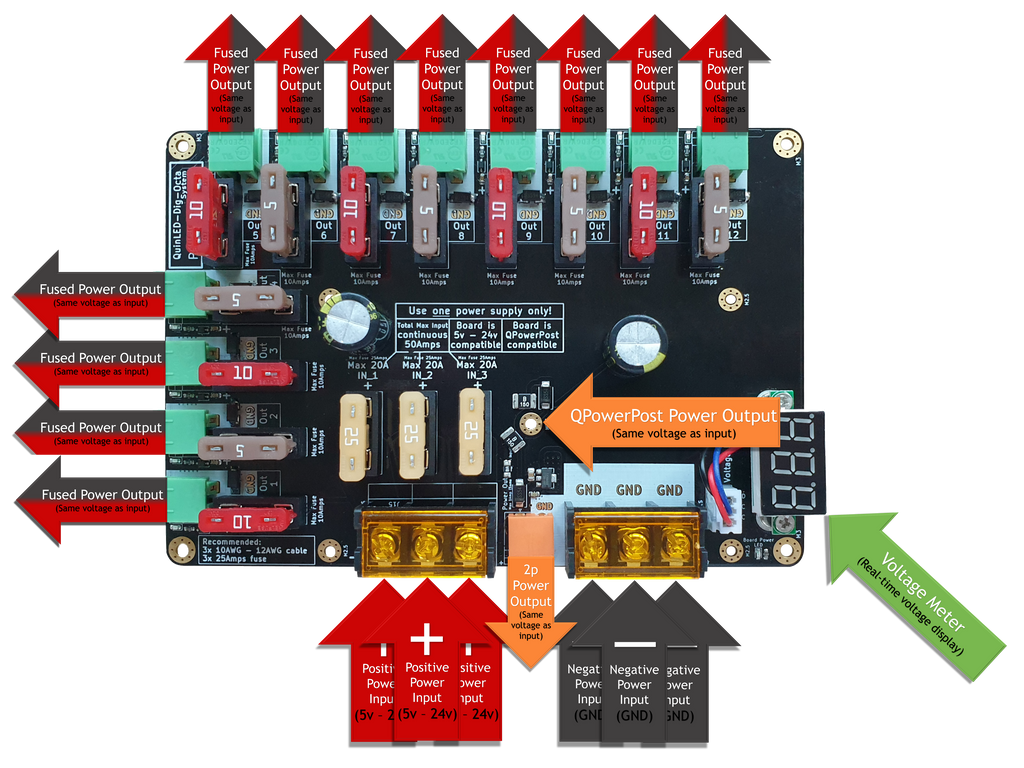

The Dig-Octa Power-5 power board provides stable power distribution via its 12 pluggable output terminals.
It is stackable and has the standardized form factor of all power boards in the Dig-Octa line of products.
- 3x 9.5mm “barrier block” input terminals for both positive and negative
- Board recommended max 50Amp continuous load total
- 12x 5.08mm pluggable output terminals
- 5v-24v capable
- “Broken Fuse” light per output
- Onboard capacitors
- Onboard Voltage display
- 4x M3 mounting holes
- Equipped with QPowerPost* (power distribution without wires)
Additional 1x 5.08mm pluggable terminal (VCC and GND out)
*) what is QPowerPost?
QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature.
It allows a flexible and quick installation of the complete stack and works without additional wiring.
**) in depth product details you find @QuinLED.info (pls follow the link)
