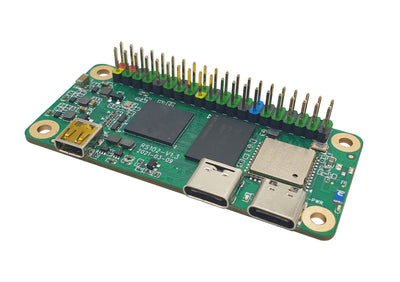

RADXA Zero
$20.50

Amlogic S905Y2 64bit quad core based Mini SBC

Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of an USB-stick.

$20.50

Amlogic S905Y2 64bit quad core based Mini SBC

Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of an USB-stick.

Available Models:

512MB RAM, WIFI4/BLE4, no eMMC, GPIO header, onboard antenna
1GB      RAM, WIFI4/BLE4, no eMMC, GPIO header, onboard antenna
2GB      RAM, WIFI5/BT5, 8GB eMMC, GPIO header, onboard antenna
2GB      RAM, WIFI5/BT5, 8GB eMMC, external antenna connector
4GB      RAM, WIFI5/BT5, 16GB eMMC, GPIO header, onboard antenna
4GB      RAM, WIFI5/BT5, 16GB eMMC, external antenna connector
4GB      RAM, WIFI5/BT5, 32GB eMMC, GPIO header, onboard antenna
4GB      RAM, WIFI5/BT5, 32GB eMMC, external antenna connector
4GB      RAM, WIFI5/BT5, 64GB eMMC, GPIO header, onboard antenna
4GB      RAM, WIFI5/BT5, 64GB eMMC, external antenna connector
4GB      RAM, WIFI5/BT5, 128GB eMMC, GPIO header, onboard antenna
4GB      RAM, WIFI5/BT5, 128GB eMMC, external antenna connector



RADXA Zero product details

Amlogic S905Y2 64bit quad core processor

Quad Cortex-A53, frequency 1.8Ghz, 12nm

GPU

Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile

Memory LPDDR4

64bit dual channel LPDDR4@3200Mb/s, 1GB/ 2GB or 4GB

Wifi/BT Antenna

Wifi/BT with external antenna support*

* WIFI4/BLE4 and WIFI4/BLE5 available for different models!

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

HDMI 2.1, 4K@60 HDR

Peripherie

 HD codec H265/VP9 decode 4Kx2K@60

USB 3.0 Type-C HOST x1

USB 3.0 HOST

dedicated USB3.0 channel

USB 2.0 Type-C OTG x1

 USB 2.0 OTG

Network (depending on the model)

Wireless 802.11 abgn wifi 2,4GHz, Bluetooth 4.2

Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0

IO 40-pin expansion header (depending on the model):

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others

Crypto Engine

one button

Size 66mm x 30mm



Essentials You Need

  • RADXA ZERO
  • Power adapter with USB type C port equal or larger than 5W
  • MicroSD Card or onboard eMMC module
  • Keyboard & Mouse
  • Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

COMING UP SOON!

______________________________________________________

RADXA Zero 2 Pro
$55.00 Sold Out

Amlogic  A311D 64bit hexa core based Mini SBC

Hexacore power with 4GB LPDDR4 RAM and high performance onboard storage

$55.00 Sold Out

Amlogic  A311D 64bit hexa core based Mini SBC

Hexacore power with 4GB LPDDR4 RAM and high performance onboard storage



RADXA Zero 2 Pro product details

Amlogic A311D 64bit quad core processor

Amlogic A311D with Quad core Cortex‑A73 (Arm® v8) 64‑bit SoC @ 2.2GHz and Dual core Cortex‑A53 (Arm® v8) 64‑bit SoC @ 1.8GH

GPU

Arm® G52 MP4 GPU, supporting OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0

Memory LPDDR4

4GB 64bit dual channel LPDDR4@3200Mb/s

Wifi/BT Antenna

Wifi5 / BT5 with external antenna support

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 32GB/ 64GB/ 128GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

HDMI 2.0, 4K@p60 (CEC)

Peripherie

H.265/VP9 (HEVC) hardware decode (up to 4Kp60)

H.264 hardware decode (up to 4Kp60)

USB 3.0 Type-C HOST x1

USB 3.0 HOST (downstream current limit app. 1A)

dedicated USB3.0 channel

USB 2.0 Type-C OTG x1

USB 2.0 OTG

MIPI Interfaces

MIPI CSI

MIPI DSI

Network

Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0

GPIO 40-pin expansion header:

- 3 x UART
- 2 x SPI bus
- 2 x I2C bus
- 3 x PWM
- 2 x ADC
- up to 22 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian / Ubuntu Linux support
- Android 9 support
Hardware access/control library for Linux/Android

Others

2 button

Temp range: 0°C to 50°C

Size 65mm x 36mm



Essentials You Need

  • RADXA ZERO 2 Pro
  • Power adapter with USB type C port equal or larger than 15W (5V3A) (alt. 5V via GPIO PIN 2 & 4)
  • MicroSD Card or onboard eMMC module
  • Keyboard & Mouse
  • Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

COMING UP SOON!

______________________________________________________

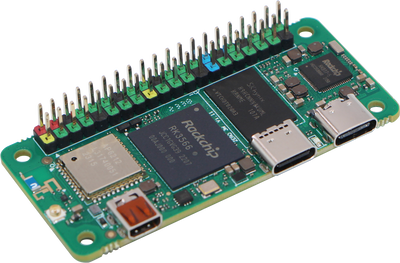

RADXA Zero 3W
$15.00 Sold Out

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

$15.00 Sold Out

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.


RADXA Zero 3W product details

Rockchip RK3566 64bit quad core processor

Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz

GPU

Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0

Memory LPDDR4

LPDDR4 1GB /2GB /4GB /8GB

WiFi/BT onboard (WiFi4+BT/WiFi6+BT5.4)

WiFi4 (802.11 a/b/g/n) /BT with onboard antenna and uFL connector*

WiFi6 (802.11 a/b/g/n/ac/ax) /BT5.4 with onboard antenna and uFL connector*

* antenna option can be configured via software

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB/ 32GB/ 64GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

1080p@60fps via Micro HDMI

Peripherie

H.264/H.265 decoder up to 4K@60fps

H.264/H265 encoder up to 1080p@60fps

USB 2.0 Type-C HOST x1

USB 2.0 HOST

USB 2.0 Type-C OTG x1

USB 2.0 OTG (for power and data)

MIPI CSI x1

MIPI CSI Camera Interface

Network

Wireless 802.11 abgn, WiFi4, Bluetooth 5.0

Wireless 802.11 abgn/ac/ax, WiFi6, Bluetooth 5.4

IO 40-pin expansion header (depending on the model):

- up to 5 x UART
- 1 x SPI bus
- up to 2 x I2C bus
- 1 x PCM/I2S
- up to 6 x PWM
- up to 28 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian/Ubuntu Linux support
- Hardware access/control library for Linux

Others

Maskrom button

Size 65mm x 30mm



Essentials You Need

  • RADXA ZERO 3W
  • Power adapter with USB type C port equal or larger than 5W
  • MicroSD Card or onboard eMMC module
  • Keyboard & Mouse
  • Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

https://docs.radxa.com/zero/zero3/getting-start

______________________________________________________

RADXA ROCK S0
$11.90 Sold Out

Rockchip RK3308BS based tiny yet feature rich SBC



$11.90 Sold Out

Rockchip RK3308BS based tiny yet feature rich SBC



  • Rockchip RK3308BS Quad Cortex-A35 64bit SOC @1.3GHz
  • 256 / 512MB DDR3 RAM variants
  • 2GB / 4GB or 8GB onboard eMMC
  • USB 2.0 OTG (via 4-pin MX1.25mm connector)
  • USB 2.0 HOST (via 4-pin MX1.25mm connector)
  • 10/100Mbit Ethernet (via 4-pin MX1.25mm connector)
  • 802.11 b/g/n Wifi (4) + Bluetooth 5.0 with external antenna connector
  • Reset button
  • Maskrom button
  • TF card slot
  • 40 pin GPIO header
    • I2C x4
    • PWM x3
    • SPI x2
    • UART x3
    • I2S0 x1
    • 5V DC power in x2
    • 3.3V DC power in x2
  • ARMv8 Instruction Set
  • Debian, Ubuntu Linux support
  • Hardware access/control library for Linux
  • Power demand idle: 0.5W / full load: <=5W
  • CPU does only need heat management when operated continuously under high load or high environmental temperature!
  • Operating temperature 0-50°C
  • Dimensions 65x30mm



    FURTHER DETAILS ON ROCK S0 FROM STARTER TO DEVELOPER

    Main documentation page on ROCK S0





    ROCK 3A
    Translation missing: en.products.product.regular_price $49.00 $45.00 On Sale

    Rockchip RK3568 64bit quad core based SBC

    The latest generation SBC based on RK3568 in the traditional form factor. Outstanding features, highest flexibility and leading edge development standards make this SBC a highlight in this market segment.

    Translation missing: en.products.product.regular_price $49.00 $45.00 On Sale

    Rockchip RK3568 64bit quad core based SBC

    The latest generation SBC based on RK3568 in the traditional form factor. Outstanding features, highest flexibility and leading edge development standards make this SBC a highlight in this market segment.

    Rock 3A product details

    RK3568 64bit quad core processor

    Quad Core Cortex-A55 up to 2GHz

    GPU

    Mali G52 GPU, OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, high performance dedicated 2D processor

    NPU

    0.8T NPU

    Memory LPDDR4

    64bit dual channel LPDDR4@3200MT/s, 2, 4 & 8GB

    DRAM controller frequency up to 1560MHz

    SPI Flash

    16MB SPI flash soldered

    Wifi/BT

    Wifi/BT with external M.2 module support

    eMMC module (removable)

    Industrial level high performance eMMC storage, 16G/32G/64G/128G available

    Micro SD card

    uSD slot supports up to 128G uSD card

    M.2 Interfaces

    M.2 connector M key (bottom) for NVMe with PCIe 3.0 x2 lanes

    note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock 3

    M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported (please check the available M.2 WiFi modules)

    Display HDMI

    HDMI 2.0 up to 4k@60

    1x MIPI DSI

    Peripherals

    MIPI DSI 2 lanes via FPC connector

    HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.

    Audio 3.5mm jack with mic with improved mechanics

    HD codec that supports up to 24-bit/96kHz audio.

    Camera MIPI CSI

    MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

    USB 3.0 OTG x1

    USB 3.0 HOST x1

    hardware switch for host/device switch, upper one

    dedicated USB3.0 channel, lower one

    both USB3.0 ports can be configured in SATA mode with an optional SATA breakout cable (muxed USB3.0/SATA mode)

    USB 2.0 HOST x2

    Network

    Wireless / Bluetooth

    via optional M.2 WiFi/ BLE modules

    LAN

    GbE LAN with PoE support

    additional HAT is required for powering via PoE

    IO 40-pin expansion header :

    - 1 x UART
    - 2 x SPI bus
    - 2 x I2C bus
    - 1 x PCM/I2S
    - 1 x SPDIF
    - 1 x PWM
    - 1 x ADC
    - 6 x GPIO
    - 2 x 5V DC power in
    - 2 x 3.3V power pin

    Others

    RTC battery connector for time backup

    Power USB PD (new generation QC/PD protocol IC)

    Support USB Type C PD 2.0, 9V/2A, 12V/2A

    Power Supply Qualcomm® Quick Charge™

    Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

    Size 85mm x 54mm



    Essentials You Need

    • ROCK 3A
    • PD/QC compliant power adapter with USB- C port equal or larger than 15W
    • Keyboard & Mouse
    • Monitor with HDMI input
    • optional M.2 WiFi module
    • optional M.2 extension board

    ______________________________________________________

    Additional information & Setup instructions

    under preparation

    ______________________________________________________

    ROCK 3B
    $51.00

    Rockchip RK3568 64bit quad core based SBC

    The latest generation SBC based on RK3568 in the Pico-ITX form factor. Outstanding features, an optional industrial version and leading edge development standards make this SBC a highlight in this market segment.

    $51.00

    Rockchip RK3568 64bit quad core based SBC

    The latest generation SBC based on RK3568 in the Pico-ITX form factor. Outstanding features, an optional industrial version and leading edge development standards make this SBC a highlight in this market segment.

    Rock 3B product details

    RK3568* 64bit quad core processor

    Quad Core Cortex-A55 up to 2GHz

    *RK3568J for industrial variant

    GPU

    Mali G52 GPU, OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, high performance dedicated 2D processor

    NPU

    0.8T NPU

    Memory LPDDR4

    64bit dual channel LPDDR4@3200MT/s, 2, 4 & 8GB

    DRAM controller frequency up to 1560MHz

    SPI Flash

    16MB SPI flash soldered

    Wifi/BT

    Wifi/BT with external M.2 module support

    eMMC module (removable)

    Industrial level high performance eMMC storage, 16G/32G/64G/128G available

    Micro SD card

    uSD slot supports up to 128G TF card

    M.2 Interfaces

    M.2 connector M key (bottom) for NVMe with PCIe 3.0 x2 lanes (2280 SSD)

    M.2 connector E key (top) for WiFi & BT support (WiFi 4/5/6) (please check the available M.2 WiFi modules)

    M.2 connector B key (top) for 4G cellular with SIM card slot ( for 3042 B key modules)

    Multiple Display Interfaces

    1x HDMI 2.0 up to 4k@60 (CEC)

    2x MIPI DSI (1x 4-lane MIPI DSI/LVDS and 1x 2-lane MIPI DSI)

    1x eDP v1.3 with touch panel support (up to 2560X1600@60Hz)

    Peripherals

    Audio 3.5mm jack with mic with improved mechanics

    HD codec that supports up to 24-bit/96kHz audio.

    Camera MIPI CSI

    MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

    USB A 3.0 x2

    upper one - USB3.0 OTG

    lower one - USB3.0 HOST

    USB A 2.0 HOST x2

    Network

    Wireless / Bluetooth

    via optional M.2 WiFi/ BLE modules

    LAN

    2x GbE LAN with PoE support

    additional HAT is required for powering via PoE

    IO 40-pin expansion header :

    - 5 x UART
    - 1 x SPI bus
    - 2 x I2C bus
    - 1 x PCM/I2S
    - 1 x CAN
    - 6 x PWM
    - 1 x ADC
    - 6 x GPIO
    - 2 x 5V DC power in
    - 2 x 3.3V power pin

    Others

    RTC battery connector for time backup

    Power USB PD (new generation QC/PD protocol IC)

    Support USB Type C PD 2.0, 9V/2A, 12V/2A

    Power Supply Qualcomm® Quick Charge™

    Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

    Size 100.2mm x 74.2mm

    Temperature range:

    RK3568 standard variant  0°C to 50°C

    RK3568J industrial variant  ‑40°C to 85°C



    Essentials You Need

    • ROCK 3B
    • PD/QC compliant power adapter with USB- C port equal or larger than 15W
    • Keyboard & Mouse
    • Monitor with HDMI input
    • optional M.2 WiFi module

    ______________________________________________________

    Additional information & Setup instructions

    coming soon!

    ______________________________________________________

    Rock3 Model C
    Translation missing: en.products.product.regular_price $54.00 $35.00 On Sale

    ROCK 3C features a quad core Cortex-A55 ARM processor, 32bit 3200Mb/s LPDDR4 and up to 4K@60 HDMI

    Translation missing: en.products.product.regular_price $54.00 $35.00 On Sale

    ROCK 3C features a quad core Cortex-A55 ARM processor, 32bit 3200Mb/s LPDDR4 and up to 4K@60 HDMI



    Rockchip RK3566 64bit quad core based SBC

    With a small form-factor, various interfaces, outstanding design and performance it is the perfect entry level SBC for your personal or business oriented projects.

    Rock3 Model C product details

    RK3566 64bit quad core processor

    Quad-core Cortex-A55, frequency 1.6Ghz

    GPU

    Mali G52

    NPU

    0.8TOPS NPU

    Memory LPDDR4

    LPDDR4@2112MT/s, 1/ 2/ 4/ 8GB variants

    Wifi/BT Antenna

    Wifi/BT with external antenna support (uFL)

    Storage

    eMMC module (optional)

    Optional industrial level high performance eMMC module, 16G/32G/64G/128G available (click on module bottom side)

    Micro SD card

    uSD card slot supports up to 128GB uSD card

    M.2 SSD

    M.2 (M) 2230 up to 1T M.2 NVME SSD

    Display HDMI

    HDMI 2.0 up to 4k*2k@60

    MIPI DSI 2 lanes via FPC connector

    HDMI and MIPI DSI can not work at the same time

    Audio

    Audio 3.5mm jack with mic with improved mechanics

    HD codec that supports up to 24-bit/96kHz audio

    Camera

    MIPI CSI 2 lanes via FPC connector, support up to 800 MP camera

    Wireless

    Wireless 802.11 ac

    WiFi 5 / Bluetooth 5

    USB

    USB 3.0 HOST x1

    USB 2.0 OTG port x1 (middle upper one)

    USB 2.0 HOST x2

    default - DEVICE, activate - HOST via serial command GPIO header

    Ethernet

    GbE LAN (with Power over Ethernet (PoE) support via additional PoE HAT)

    IO 40-pin expansion header :

    - 5 x UART
    - 1 x SPI bus
    - 2 x I2C bus
    - 6 x PWM
    - 1 x ADC
    - 6 x GPIO
    - 2 x 5V DC power in
    - 1 x 3.3V power in

    Others

    RTC

    RTC battery connector for time backup (optional)

    Power button

    Dual pin PWM fan header (controller chip onboard)

    Power USB-C recommended 5V/3A (5V/5A is recommended when using with SSD)

    Size 85mm x 56mm

    NOTE! Fits mechanically many of the existing Raspberry Pi 4 accessories

    Essentials You Need

    • ROCK 3 Model C
    • Power adapter with USB type C port equal or larger than (5V3A) 15W (or 5V5A - 25W with mounted SSD)
    • MicroSD Card or eMMC module with eMMC-to-uSD adapter board
    • Keyboard & Mouse
    • Monitor with HDMI input

    _________________________________________________________

    Additional information & Setup instructions

    https://wiki.radxa.com/Rock3/getting_started/rock-3c

    _________________________________________________________


    Rock3 Model C incl. eMMC Early engineer bird Promotion
    Translation missing: en.products.product.regular_price $47.50 $35.00 On Sale

    ROCK 3C features a quad core Cortex-A55 ARM processor, 32bit 3200Mb/s LPDDR4 and up to 4K@60 HDMI - including 16GB eMMC - Early engineer bird version - (while stocks last)

    Translation missing: en.products.product.regular_price $47.50 $35.00 On Sale

    ROCK 3C features a quad core Cortex-A55 ARM processor, 32bit 3200Mb/s LPDDR4 and up to 4K@60 HDMI - including 16GB eMMC - Early engineer bird version - (while stocks last)



    Rockchip RK3566 64bit quad core based SBC

    With a small form-factor, various interfaces, outstanding design and performance it is the perfect entry level SBC for your personal or business oriented projects.

    Rock3 Model C product details

    RK3566 64bit quad core processor

    Quad-core Cortex-A55, frequency 1.6Ghz

    GPU

    Mali G52

    NPU

    0.8TOPS NPU

    Memory LPDDR4

    LPDDR4@2112MT/s, 1/ 2/ 4/ 8GB variants

    Wifi/BT Antenna

    Wifi/BT with external antenna support (uFL)

    Storage

    eMMC module (optional)

    Optional industrial level high performance eMMC module, 16G/32G/64G/128G available (click on module bottom side)

    Micro SD card

    uSD card slot supports up to 128GB uSD card

    M.2 SSD

    M.2 (M) 2230 up to 1T M.2 NVME SSD

    Display HDMI

    HDMI 2.0 up to 4k*2k@60

    MIPI DSI 2 lanes via FPC connector

    HDMI and MIPI DSI can not work at the same time

    Audio

    Audio 3.5mm jack with mic with improved mechanics

    HD codec that supports up to 24-bit/96kHz audio

    Camera

    MIPI CSI 2 lanes via FPC connector, support up to 800 MP camera

    Wireless

    Wireless 802.11 ac

    WiFi 5 / Bluetooth 5

    USB

    USB 3.0 HOST x1

    USB 2.0 OTG port x1 (middle upper one)

    USB 2.0 HOST x2

    default - DEVICE, activate - HOST via serial command GPIO header

    Ethernet

    GbE LAN (with Power over Ethernet (PoE) support via additional PoE HAT)

    IO 40-pin expansion header :

    - 5 x UART
    - 1 x SPI bus
    - 2 x I2C bus
    - 6 x PWM
    - 1 x ADC
    - 6 x GPIO
    - 2 x 5V DC power in
    - 1 x 3.3V power in

    Others

    RTC

    RTC battery connector for time backup (optional)

    Power button

    Dual pin PWM fan header (controller chip onboard)

    Power USB-C recommended 5V/3A (5V/5A is recommended when using with SSD)

    Size 85mm x 56mm

    NOTE! Fits mechanically many of the existing Raspberry Pi 4 accessories

    Essentials You Need

    • ROCK 3 Model C
    • Power adapter with USB type C port equal or larger than (5V3A) 15W (or 5V5A - 25W with mounted SSD)
    • MicroSD Card or eMMC module with eMMC-to-uSD adapter board
    • Keyboard & Mouse
    • Monitor with HDMI input

    _________________________________________________________

    Additional information & Setup instructions

    https://wiki.radxa.com/Rock3/getting_started/rock-3c

    _________________________________________________________


    RADXA ROCK3 Computing Module

    Radxa´s ROCK3 Compute Module (Radxa CM3) is a SoM (System on Module)

    Based on the Rockchip RK3566 SoC in a small form factor of 55mm x 40mm, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

    $30.00

    Radxa´s ROCK3 Compute Module (Radxa CM3) is a SoM (System on Module)

    Based on the Rockchip RK3566 SoC in a small form factor of 55mm x 40mm, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

    Radxa´s CM3 offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

    Overview of features:

    Quad core 64 bit High Performance Solution

    Radxa CM3 is powered by the Rockchip RK3566 SoC, a 64bit Quad Cortex A55 low power core with up to 2.0Ghz. It comes with a maximum of 8GB RAM and up to 128GB eMMC storage.
    With a simple carrier board (a 2 layer base board is sufficient to provide access to all functions of the SoM), the engineers can quickly develop solutions and prepare the boards for production.



    Rich interfaces

    I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI,
    SATA, eDP interfaces are available as well as PCIe 2.0 high bandwidth buses.

    Display Capability

    The Dual Video Out put Processor supports dual display output to any two of HDMI, eDP, MIPI, DP, with a resolution of up to 4K x 2K and one 2.5k

    Powerful multimedia utility support

    4K VP9 and 4K 10bits H264/H265 video decoding, up to 60FPS
    multiple 1080P video formats decoding including VC-1, MPEG-1/2/4, VP8
    1080P encoding to H.264, VP8 formats


     Small size and low power

    55mm x 40mm form factor and industry compatible 3 x 100PIN board to board connectors save board space and provide standardized interfaces and save board space.

    Multiple OS support

    Ubuntu 20.04 / Debian 10 / Buildroot / Android

    Open documents and source code

    Source code, documents, tools & utilities are freely available, community and commercial support are available to help you put your prototype into production

    Widely used in various applications

    Perfect SoM for Robotics, HMI, Vending Machines, Smart Home, IOT Gateway, Industrial Control, Medical Equipment etc.



    Detailed technical specs:

    Processor:

    Rockchip RK3566, Quad core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz

    Memory:

    1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)

    Connectivity:

    - Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
    wireless, Bluetooth 5.0, BLE with onboard and external antenna options
    - Onboard Gigabit Ethernet PHY
    - 1 × USB 2.0 port ( highspeed ), 1 x USB 3.0 port ( 5Gbps )
    - 1 × PCIe 1-lane Host, Gen 2 ( 5Gbps )
    - 2 x SATA ports, one shared with USB 3, one shared with PCIe
    - 50 × GPIO support

    Video:

    - 1x HDMI up to 4K x 2K@60HZ
    - 1x eDP four lanes, 2.7Gps per lane
    - 2x MIPI DSI four lanes, 1.6Gbps per lane


    Audio:

    - LINEOUT
    - I2S
    - PDM, support mic array


    Multimedia:

    - VP9/H.264/H.265 decode 4K@60HZ
    - H.264/H.265 encode 1080P@100HZ
    - OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1 GPU



    Input power: 5V DC

    Connector: 3x 100P 0.5mm pitch B2B connector

    Dimension: 55 mm × 40 mm



    ROCK3 CM will remain in production until at least Sep 2029



    IMPORTANT PURCHASE INFORMATION:

    Because of the high number of variants only a few models will be available from stock. (we will make sure our stock levels are always sufficient for immediate supply) If you plan to purchase any other model the MOQ will be 100 pieces.

    FOCUS SKU´s:

    1GB/8eMMC/WIFI       RM116-D1E8W2
       2GB/16eMMC/WIFI     RM116-D2E16W2

        4GB/32eMMC/WIFI     RM116-D4E32W2

       8GB/64eMMC/WIFI      RM116-D8E64W2
    RADXA CM3 IO Board

    Radxa CM3 IO Board is an application board for the ROCK3 Compute Module (CM3)

    Powered by the CM3 module - the Radxa CM3 IO board enables access to the complete feature set this Computing Module provides.

    $45.00

    Radxa CM3 IO Board is an application board for the ROCK3 Compute Module (CM3)

    Powered by the CM3 module - the Radxa CM3 IO board enables access to the complete feature set this Computing Module provides.( alternative also via Raspberry Pi CM4 with limited features)

    Features:

    • Designed for Radxa CM3, compatible to Raspberry Pi CM4
    • Half mini-ITX design (170*85mm), compatible to standard ATX case
    • Multiple display interfaces, HDMI, 2x MIPI DSI, eDP, dual display operation
    • 1 PCIe card slot, ATX case mount possible
    • Up to 2x SATA (one shared with USB3.0, one shared with PCIe 2.0)
    • Ubuntu/Debian and Android support

    Technical Details:

    Supported CM´s

    RADXA CM3 all variants

    Raspberry Pi CM4 with limited functions

    Connectivity

    5 x USB 2.0 port(two internal USB2 headers, three type A connector)
    1 x USB 3.0 port ( 5Gbps, type A connector )
    1x USB 2.0 OTG ( Micro USB connector )

    1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
    2 x SATA 7P connector, one shared with USB 3, one shared with PCIe

    1x microSD card connector

    40 x GPIO pin header

    Networking

    1x Gigabit Ethernet RJ45 with PoE support

    Video

    1x HDMI up to 4K x 2K@60HZ

    1x eDP support 4K x 2K@60HZ

    2x MIPI DSI 4 lanes up to 1920 x 1080@60HZ, support dual display

    Dual MIPI CSI input

    Audio

    3.5mm headphone jack with mic support

    Other

    Lion battery connector

    RTC battery connector

    FAN connector

    Power

    DC 12V 2.5/5.5mm

    or 4P ATX PSU with floppy power connector

    Dimension

    160 mm × 90 mm

    Product lifetime

    Radxa CM3 IO Board will remain in production until at least Sep 2029

    RADXA ROCK3 Computing Module SODIMM

    Radxa´s ROCK3 Compute Module SODIMM is a SoM (System on Module)

    Based on the Rockchip RK3566 SoC in a small laptop DRAM form factor, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

    $28.00

    Radxa´s ROCK3 Compute Module SODIMM is a SoM (System on Module)

    Based on the Rockchip RK3566 SoC in a small laptop DRAM form factor, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

    Radxa´s CM3 SODIMM offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

    Overview of features:

    Quad core 64 bit High Performance Solution

    Radxa CM3S is powered by the Rockchip RK3566 SoC, a 64bit Quad Cortex A55 low power core with up to 1.6Ghz. It comes with a maximum of 8GB RAM and up to 512GB eMMC storage.

    With a simple carrier board (a 2 layer base board is sufficient to provide access to all functions of the SoM), the engineers can quickly develop solutions and prepare the boards for production.

    Rich interfaces

    I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI,
    SATA, eDP interfaces are available as well as a PCIe 2.0 high bandwidth bus.

    Display Capability

    The Dual Video Out put Processor supports dual display output to any two of HDMI, eDP, MIPI, DP, with a resolution of up to 4K x 2K and one 2.5k

    Powerful multimedia utility support

    4K VP9 and 4K 10bits H264/H265 video decoding, up to 60FPS
    multiple 1080P video formats decoding including VC-1, MPEG-1/2/4, VP8
    1080P encoding to H.264, VP8 formats


     Small size and low power

    Industrial standard compliant 200pin golden finger edge connector (DDR2 SODIMM form factor) with the dimensions of 32mm x 67.6mm save board space.  The additional 100P B2B connector enables access to additional features such as USB3 and PCIe.

    Multiple OS support

    Ubuntu 20.04 / Debian 10 / Buildroot / YOCTO / Android 11/12

    Open documents and source code

    Source code, documents, tools & utilities are freely available. Community and commercial support are available to help you put your prototype into production.

    Widely used in various applications

    Perfect SoM for Robotics, HMI, Vending Machines, Smart Home, IOT Gateway, Industrial Control, Medical Equipment etc.



    Detailed technical specs:

    Processor:

    Rockchip RK3566, Quad core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz

    Memory:

    1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)

    Connectivity:

    - Optional wireless LAN, 2.4GHz IEEE 802.11b/g/n wireless, Bluetooth 4.2,                  BLE with external antenna support
    - Onboard Gigabit Ethernet MAC
    - 1 × USB 2.0 port ( highspeed ), 1 x USB 3.0 port ( 5Gbps )
    - 1 × PCIe 1-lane Host, Gen 2 ( 5Gbps )
    - 2 x SATA ports, one shared with USB 3, one shared with PCIe
    - 50 × GPIO support

    Video:

    - 1x HDMI up to 4K x 2K@60HZ
    - 1x eDP four lanes, 2.7Gps per lane
    - 2x MIPI DSI four lanes, 1.6Gbps per lane
    - 1x LVDS four lanes (muxed with MIPI DSI0)


    Audio:

    - LINEOUT
    - I2S
    - PDM, support mic array


    Multimedia:

    - VP9/H.264/H.265 decode 4K@60HZ
    - H.264/H.265 encode 1080P@100HZ
    - OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1 GPU





    Input power: 5V DC

    Connector:  200P edge golden finger + 100P 0.5 pitch B2B connector

    Dimension: 67.6mm x 32mm



    ROCK3 CM3-SODIMM will remain in production until at least Sep 2029



    IMPORTANT PURCHASE INFORMATION:

    Because of the high number of variants only a few models will be available from stock. (we will make sure our stock levels are always sufficient for immediate supply) If you plan to purchase any model which is not on stock, the MOQ will be 100 pieces.

    FOCUS SKU´s:

       1GB/8eMMC/WIFI     RM117-D1E8W2

       2GB/16eMMC/WIFI     RM117-D2E16W2

        4GB/32eMMC/WIFI     RM117-D4E32W2

       8GB/64eMMC/WIFI      RM117-D8E64W2
    RADXA CM3 SODIMM IO Board
    Translation missing: en.products.product.regular_price $25.00

    Radxa CM3 SODIMM IO Board is an application board for the ROCK3 SODIMM Compute Module (CM3S)

    Powered by the CM3S module - the Radxa CM3 SODIMM IO board enables access to the complete feature set this Computing Module provides.

    Features:

    • Designed for Radxa CM3S
    • Half mini-ITX design (170*85mm), compatible to standard ATX case
    • Multiple display interfaces, HDMI, 1x MIPI DSI, dual display operation
    • 1 PCIe card slot, ATX case mount possible
    • 1x SATA
    • Ubuntu/Debian and Android support

    Technical Details:

    Supported CM´s

    RADXA CM3S all variants

    Connectivity

    3 x USB 2.0 port ( three type A connectors )
    1x USB 2.0 OTG ( Micro USB connector )
    1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
    1 x SATA 7P connector

    1x microSD card slot

    40 x GPIO pin header

    Networking

    1x 100M Ethernet RJ45 with PoE support

    Video

    1x HDMI

    1x MIPI DSI

    2x MIPI CSI input

    Other

    PoE header

    Power

    DC 12V 2.5/5.5mm

    or 4P ATX PSU with floppy power connector

    Dimension

    160 mm × 90 mm

    Product lifetime

    Radxa CM3 SODIMM IO Board will remain in production until at least Sep 2029

    Translation missing: en.products.product.regular_price $25.00

    Radxa CM3 SODIMM IO Board is an application board for the ROCK3 SODIMM Compute Module (CM3S)

    Powered by the CM3S module - the Radxa CM3 SODIMM IO board enables access to the complete feature set this Computing Module provides.

    Features:

    • Designed for Radxa CM3S
    • Half mini-ITX design (170*85mm), compatible to standard ATX case
    • Multiple display interfaces, HDMI, 1x MIPI DSI, dual display operation
    • 1 PCIe card slot, ATX case mount possible
    • 1x SATA
    • Ubuntu/Debian and Android support

    Technical Details:

    Supported CM´s

    RADXA CM3S all variants

    Connectivity

    3 x USB 2.0 port ( three type A connectors )
    1x USB 2.0 OTG ( Micro USB connector )
    1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
    1 x SATA 7P connector

    1x microSD card slot

    40 x GPIO pin header

    Networking

    1x 100M Ethernet RJ45 with PoE support

    Video

    1x HDMI

    1x MIPI DSI

    2x MIPI CSI input

    Other

    PoE header

    Power

    DC 12V 2.5/5.5mm

    or 4P ATX PSU with floppy power connector

    Dimension

    160 mm × 90 mm

    Product lifetime

    Radxa CM3 SODIMM IO Board will remain in production until at least Sep 2029


    Login
