Rock5 Model B

Shop By
Rock5 Model B
$129.00

Rockchip RK3588 64bit octa core ARM based SBC

RADXA´s latest generation SBC based on the just released Rockchip RK3588 in the new standard form factor. Leading edge SOC technology (8nm manufacturing process) combined with a packed feature set and highest  SBC development skills will define new standards in the global SBC market. They are completed with competitive pricing and allows this SBC to open new market segments.

$129.00

Rockchip RK3588 64bit octa core ARM based SBC

RADXA´s latest generation SBC based on the just released Rockchip RK3588 in the new standard form factor. Leading edge SOC technology (8nm manufacturing process) combined with a packed feature set and highest  SBC development skills will define new standards in the global SBC market. They are completed with competitive pricing and allows this SBC to open new market segments.

Rock5 Model B product details*

RK3588 64bit octa core processor

Quad Core A76 2.4GHz + Quad Core A55 1.8GHz

GPU

Mali G610MP4 GPU (up to 5 channel 4k UI)

8K 10bit decoder, 8K encoder

NPU

6T NPU

Memory LPDDR4

LPDDR4x with 4, 8 or 16GB

SPI Flash

32MB SPI flash soldered

Wifi/BT

WiFi 6E and BT5.2 support via opt. WiFi module

eMMC module (removable)

Industrial level high performance eMMC storage, 16G/32G/64G/128G available

Micro SD card

uSD slot supports up to 128G uSD card

M.2 Interfaces

M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes

M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported

Display HDMI

Triple display support (with HDR)

2x HDMI 2.1 up to 8k@60FPS

1x USB-C with DP up to 8K@30FPS

HDMI in with up to 4K@60FPS

1x MIPI DSI

Peripherals

MIPI DSI 2 lanes via FPC connector

HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.

Audio 3.5mm jack with mic

HD codec that supports up to 24-bit/96kHz audio.

Camera MIPI CSI

MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

USB 3.0 HOST x3

1x USB-C

2x USB-A

Network

Wireless / Bluetooth

WiFi 6E and BT5.2

LAN

2.5GbE LAN with PoE support

additional HAT is required for powering via PoE

IO 40-pin expansion header :

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others

RTC battery connector for time backup

Power USB PD (new generation QC/PD protocol IC)

Support USB Type C PD 2.0, 9V/2A, 12V/2A

Power Supply Qualcomm® Quick Charge™

Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

Size 100mm x 72mm (Pico ITX form factor)



Essentials You Need

  • ROCK5 Model B
  • PD/QC compliant power adapter with USB- C port equal or larger than 15W
  • Keyboard & Mouse
  • Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

*certain technical specs can be subject to change without notice
RADXA M.2 WiFi 6 BT5 Module A8
Translation missing: en.products.product.regular_price $17.50 $9.90 On Sale

The RADXA M.2 WiFi 6 and BT5.2 Wireless Module A8

Translation missing: en.products.product.regular_price $17.50 $9.90 On Sale

The RADXA M.2 WiFi 6 and BT5.2 Wireless Module A8

Radxa Wireless Module A8, a M.2 WiFi 6 and BT5.2 Combo Module based on Realtek RTL8852BE

It has the following features:

  • IEEE 802.11a/b/g/n/ac/ax compatible WLAN
  • DBBT5.0 (BT 5.2 Compliant)
  • Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
  • Maximum PHY data rate up to
    • 286.8 Mbps using 20MHz bandwidth
    • 573.5Mbps using 40MHz bandwidth
    • 1201Mbps using 80MHz bandwidth
  • Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates
  • Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates
  • Compliance with Windows operating system host‑implemented FIPS 140‑2 security requirements
  • Support 20/40/80MHz 5GHz
  • supports WLAN‑Bluetooth coexistence
  • supports low power Bluetooth
  • Support Bluetooth 5 system (BT 5.2 Logo Compliant)
  • Compatible with Bluetooth v2.1+EDR
  • 2x uFL connector

2 small pcb-antennas included

Support for ROCK 3A and ROCK 5B

RADXA Camera 4K
Translation missing: en.products.product.regular_price $25.00
Radxa Camera 4K -  HD camera for Radxa 5B

The camera has an IMX415 chip and connects Radxa 5B via the CSI interface. The camera provides 8.29M pixels.

Translation missing: en.products.product.regular_price $25.00
Radxa Camera 4K -  HD camera for Radxa 5B

The camera has an IMX415 chip and connects Radxa 5B via the CSI interface. The camera provides 8.29M pixels.

Applications: Surveillance cameras, FA cameras, Industrial cameras.

Detailed Specs:

Sensor:

SONY IMX415
Diagonal 6.43 mm (Type 1/2.8)
8.29M pixel
Unit cell size: 1.45 µm (H) × 1.45 µm (V)

Output:

CSI‑2 serial data output ( 2 Lane / 4 Lane )
RAW10 / RAW12 output

Lens Specification:

Interface Type: M12XP0.5
Focal Length(EFL): 2.95±5%mm
Back Focal Length(BFL): 4.64mm

 Flange Back Length(FBL): 4.00mm

Single lens operating temperature: ‑40°C ~ +85°C

FOV

Field of view (Diagonal/Horizontal/Vertical) CRA
D=88.2±5° H=75±3° V=59±2° 15°



Ribbon cable length: 150 mm

RADXA Power PD 30W
Translation missing: en.products.product.regular_price $9.90

RADXA Power PD 30W the perfect match for all RADXA SBC's

Providing up to 5A at 5V keeps Radxa SBC's in a stable state even having multiple peripherals connected. For PD/QC compliant SBC´s it can deliver a total of 30W @ 12V/2.5A.

Technical specs:

  • INPUT: AC100‑240V 50/60Hz 1A
  • OUTPUT: 5V/5A 9V/2A 12/2A 30W

Protection:

  • Over Voltage Protection
  • Short Circuit Protection
  • Over Current Protection

Environment Requirement:

    Temperature:

    • Operation Ambient: 0℃ ‑ +40℃
    • Non‑operating Ambient: ‑25℃ ‑ +55℃
    Humidity:
    • Operating: 25% ‑ 90% relative humidity (Non‑ condensing)
    • Non‑operating: 10% ‑ 90% relative humidity (Non‑ condensing)



    Power Plug:

    • US, EU, UK, AU interchangeable plug
    Translation missing: en.products.product.regular_price $9.90

    RADXA Power PD 30W the perfect match for all RADXA SBC's

    Providing up to 5A at 5V keeps Radxa SBC's in a stable state even having multiple peripherals connected. For PD/QC compliant SBC´s it can deliver a total of 30W @ 12V/2.5A.

    Technical specs:

    • INPUT: AC100‑240V 50/60Hz 1A
    • OUTPUT: 5V/5A 9V/2A 12/2A 30W

    Protection:

    • Over Voltage Protection
    • Short Circuit Protection
    • Over Current Protection

    Environment Requirement:

      Temperature:

      • Operation Ambient: 0℃ ‑ +40℃
      • Non‑operating Ambient: ‑25℃ ‑ +55℃
      Humidity:
      • Operating: 25% ‑ 90% relative humidity (Non‑ condensing)
      • Non‑operating: 10% ‑ 90% relative humidity (Non‑ condensing)



      Power Plug:

      • US, EU, UK, AU interchangeable plug

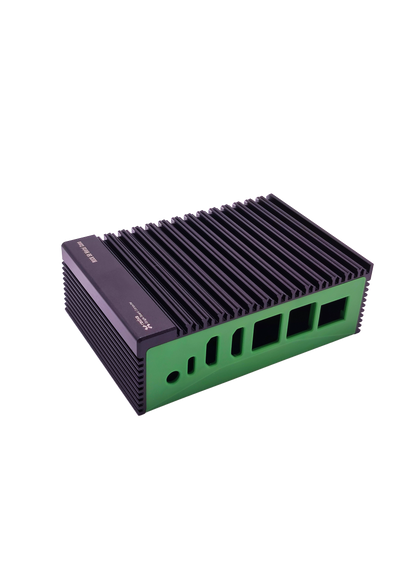

      ROCK 5B Metal case
      Translation missing: en.products.product.regular_price $15.00 Sold Out

      A home to your Rock 5B board with an integrated heat sink

      Translation missing: en.products.product.regular_price $15.00 Sold Out

      A home to your Rock 5B board with an integrated heat sink

      Protect and manage CPU heat with this great looking case

      • easy to assemble
      • good access to all interfaces
      • passive cooling

       - shipping expected within 2 days!

      RADXA 25W PoE HAT
      Translation missing: en.products.product.regular_price $19.00
      Power your ROCK Boards with the RADXA 25W PoE HAT
      Translation missing: en.products.product.regular_price $19.00
      Power your ROCK Boards with the RADXA 25W PoE HAT

      Specs:

      • Compliant to IEEE 802.3at/af standards with 25W
      • Input voltage range 37V to 57V
      • Output voltage/current: 5V/4.8A, 12V/2.1A
      • PWM controlled fan with up to 15000rpm
      • completely redesigned with performance and heat management in mind
      • very low profile allows usage in smaller housings (fits the ecoPI PRO LP case)
      • attractive price

      Supported boards:

      Rock 5 Model A / B

      Rock 3 Model A

      Rock 3 Model C

      Rock 4 Model C+



      Rock5 B Acrylic protector

      Protect your Rock5 B with this acrylic kit

      Easy access to all your interfaces

      Includes:

      • Acrylic sheets
      • screws and spacers
      • depending on the variant either passive or active cooling solution
      $12.99

      Protect your Rock5 B with this acrylic kit

      Easy access to all your interfaces

      Includes:

      • Acrylic sheets
      • screws and spacers
      • depending on the variant either passive or active cooling solution

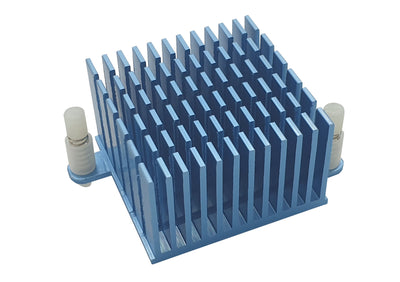

      Rock5 B passive heat sink
      Translation missing: en.products.product.regular_price $3.99

      Go "passive" Rock5 B with this perfectly fit heat-sink

      Translation missing: en.products.product.regular_price $3.99

      Go "passive" Rock5 B with this perfectly fit heat-sink

      Comes with heat dissipation pad

      Easy mount on your finally arriving Rock5 B

      RADXA M.2 E Key to SATA Breakout Board
      Translation missing: en.products.product.regular_price $1.50
      Easy connect to SATA devices via this M.2 Key2Sata breakout board
      Translation missing: en.products.product.regular_price $1.50
      Easy connect to SATA devices via this M.2 Key2Sata breakout board
      Radxa Fan 4012 white
      Translation missing: en.products.product.regular_price $4.50

      Upgrade RADXA boards 3B and 5B with active heat management.


      Translation missing: en.products.product.regular_price $4.50

      Upgrade RADXA boards 3B and 5B with active heat management.


      Rock5 Model B Pre-order discount redeem code
      Translation missing: en.products.product.regular_price $5.00 Sold Out

      Book your Rock 5B RK3588 now and get a huge discount on your purchase!

      !PROGRAM CLOSED!  JULY 22 2022   GEARING UP THE EFFORTS FOR DELIVERY!

      Join the excited crowd of RK3588 fans now, and be one of the first to get your hands on the brand new RADXA Rock5 Model B.

      But that is not all - you will also enjoy an early adopter price deduction of 50USD on the Rock5 Model B of your choice.

      Translation missing: en.products.product.regular_price $5.00 Sold Out

      Book your Rock 5B RK3588 now and get a huge discount on your purchase!

      !PROGRAM CLOSED!  JULY 22 2022   GEARING UP THE EFFORTS FOR DELIVERY!

      Join the excited crowd of RK3588 fans now, and be one of the first to get your hands on the brand new RADXA Rock5 Model B.

      But that is not all - you will also enjoy an early adopter price deduction of 50USD on the Rock5 Model B of your choice.

      How does it work?

      • You purchase a discount code for USD5 in our store now (we send you the order confirmation)
      • It will be redeemed when finally purchasing Rock5 Model B after its release. The store will at this time send you a payment link for the remaining amount.
      • The store will automatically deduct USD50 from your Rock5 Model B order.
      • Each discount code (order confirmation) can only be used once and for one Rock5 Model B per order.
      • The shipment order will be based on the sequence the discount code was purchased.
      • Multiple orders are allowed but are based on the previous conditions.
      • Discount codes can be refunded at any time before the shipments start. (you will be noticed once the shipment schedule is fixed)
      • Shipment costs are non deductible and based on your choice during the purchase of Rock5B
      • Please keep product orders and the purchase of the redeem code separate

      We will of course keep you posted about the progress and status of the release of Rock5 Model B.

      PRICES:

      Rock5 Model B  4GB RAM  USD129 -> after discount USD79

      Rock5 Model B  8GB RAM USD 149 -> after discount USD99

      Rock5 Model B 16GB RAM USD189 -> after discount USD139

      Expected delivery time:

      shipments start Q2 2022

      Rock5 Model A
      $99.00

      Rockchip RK3588 64bit octa core ARM based SBC

      RADXA´s latest generation SBC based on the Rockchip RK3588 in a compact form factor packed with a wide range of class-leading functionality, features and expansion options. They are available in various LPDDR4x RAM memory options (4, 8 and 16GB).

      $99.00

      Rockchip RK3588 64bit octa core ARM based SBC

      RADXA´s latest generation SBC based on the Rockchip RK3588 in a compact form factor packed with a wide range of class-leading functionality, features and expansion options. They are available in various LPDDR4x RAM memory options (4, 8 and 16GB).

      Rock5 Model A product details

      RK3588S 64bit octa core processor

      Quad Cortex®‑A76 @ 2.2~2.4GHz and a quad Cortex®‑A55 @ 1.8GHz based on Arm®
      DynamIQ™ confguration

      GPU

      Arm Mali™ G610MC4 GPU supporting:

      OpenGL® ES1.1, ES2.0, and ES3.2
      OpenCL® 1.1, 1.2 and 2.2
      Vulkan® 1.1 and 1.2
      Embedded high performance 2D image acceleration module

      NPU

      Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing
      power is up to 6TOPs

      Memory LPDDR4

      64bits LPDDR4x RAM with 4, 8 or 16GB

      SPI Flash

      32MB SPI flash soldered

      Display HDMI and MIPI DSI

      Triple display support via two HDMI, and one MIPI DSI

      H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps
      H.264/H.265 multivideo decoder up to 8K@30fps

      Interfaces

      ・ 1x USB Type‑C™ port for power supporting USB PD 2.0 and QC 2.0
      ・ 1x Micro SD Card
      ・ 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution)

      ・ 2x USB2 Type A HOST ports
      ・ 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
      ・ 1x Gigabit Ethernet port (supports PoE with add‑on PoE HAT)
      ・ 1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support
      ・ 1x eMMC module connector for eMMC 5.1 support
      ・ 1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI)
      ・ 1x LCD Display port (four‑lane MIPI DSI)

      ・ Miscellaneous

      1x PWM fan connector
      1x Power button
      1x Recovery pin, 1x Maskrom pin
      1x Power LED, 1x User LED

      40 pin 0.1” (2.54mm) header supporting a wide range of interface options:

      Up to 5 x UART(2x with flow control)
      Up to 3 x SPI bus
      Up to 6 x I2C bus
      Up to 1 x PCM/I2S
      Up to 2 x SPDIF
      Up to 7 x PWM
      Up to 1 x CAN
      Up to 1 x ADC
      Up to 27 x GPIO
      2 x 5V DC power in/out
      2 x 3.3V power out

      Software

      ・ ArmV8 Instruction Set
      ・ Debian/Ubuntu Linux support
      ・ Android 12 support
      ・ OpenFyde OS(Chromium OS fork) support
      ・ RKNPU2 NPU software stack
      ・ Hardware access/control library for Linux/Android

      USB 3.0 HOST x3

      1x USB-C

      2x USB-A

      Network

      LAN

      1GbE LAN with PoE support

      *additional HAT is required for powering via PoE

      WIFI

      via optional WIFI module

      Others

      RTC battery connector for time backup

      USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A

      Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A

      Power adapter with fixed voltage in 5.2V to 20V range on the USB Type‑C port

      ROCK 5A has been designed to operate between 0°C to 50°C

      Size 85mm x 56mm



      Essentials You Need

      • ROCK5 Model A
      • PD 2.0 /QC (2.0/3.0) compliant or fixed voltage (5.2-20V) power adapter with USB- C port equal or larger than 24W (30W with M.2 SSD mounted)
      • Keyboard & Mouse
      • Monitor with HDMI input

      ______________________________________________________

      Additional information & Setup instructions

      under preparation

      ______________________________________________________


      Login
