StarFive VisionFive 2 quad core RISC-V dev board

StarFive VisionFive 2 quad core RISC-V dev board
$85.00

High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU

StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.

This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.

← Back to StarFive

High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU

StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.

This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.

Technical Details:

Processor

  • StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
  • IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)

 Memory

  • 4GB, 8GB LPDDR4 (up to 2800Mbps)

Storage

  • Onboard TF card slot
  • Flash
  • eMMC socket for optional eMMC module up to 128GB
  • M.2 NVMe SSD slot

Wireless Connectivity

  • WiFi dongle (only for WiFi board variants)

Video Output

  • 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
  • 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
  • 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps

Camera

  • 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps

Encoder/Decoder

  • Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
  • Video encoder supports up to 1080p@30fps and multi-stream for H265
  • JPEG encoder/decoder

Peripherals

  • 4 x USB 3.0 ports
  • 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
  • 2x RJ45 Ethernet Connector
  • 3.5 mm Audio jack (4-pole stereo audio output)
  • M.2 Connector
  • eMMC Socket
  • 2 pin fan header
  • Micro-SD card slot for system boot and data storage
  • Reset and Power Button

Power Supply

  • Power 5V DC with PD, up to 30W

Power Connector

  • USB Type-C port or 40-pin GPIO header

 Dimension

  • 100mm x 72 mm

 Compliance

  • RoHS, FCC, CE



Connect to the StarFive VisionFive ecosystem here: rvspace.org

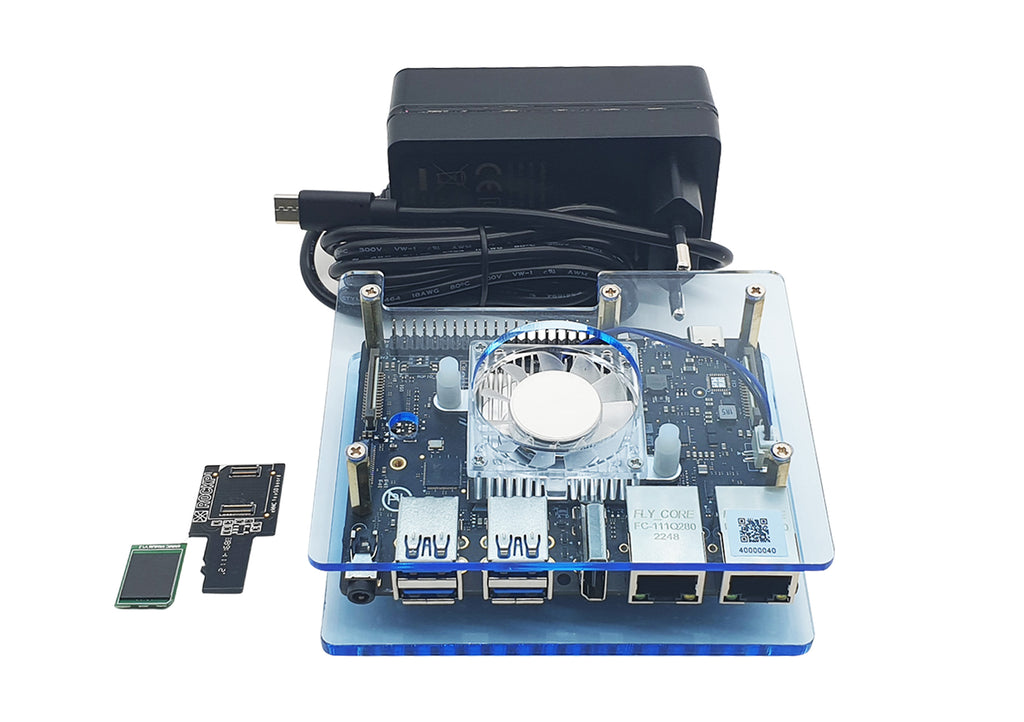

 STARTER KIT CONTENTS:

NON WIFI VERSION

Acrylic Protector including active heat management (FAN)

Power Supply 5V6A with 1m USB-C mounted cable (EU/US variants)

16GB eMMC module

eMMC to usd adapter for flashing firmware



WIFI VERSION

Acrylic Protector including active heat management (FAN)

Antenna with uFL pigtail

Power Supply 5V6A with 1m USB-C mounted cable (EU/US variants)

16GB eMMC module

eMMC to usd adapter for flashing firmware
