RADXA Fogwise AIRbox Q900

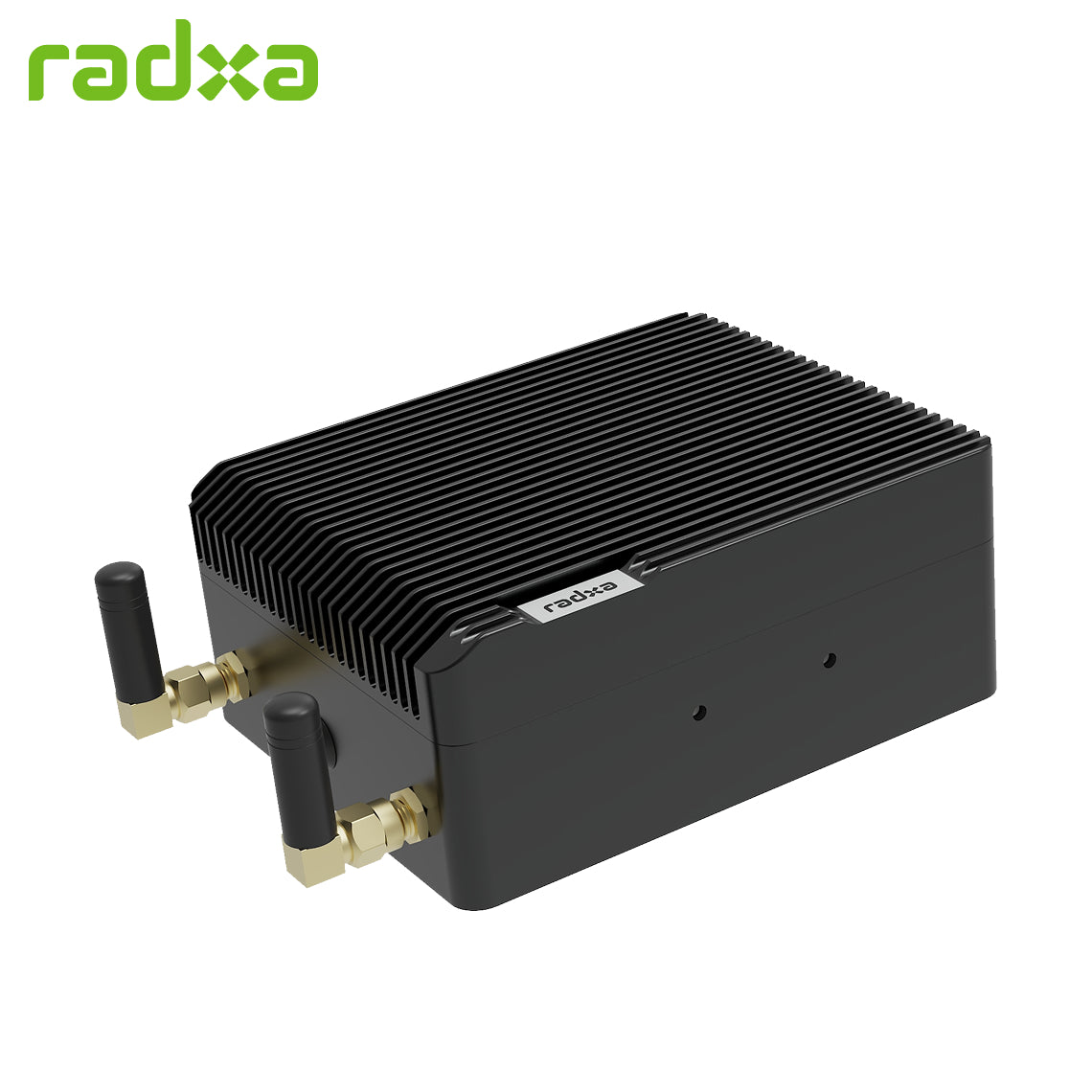

Fogwise AIRbox Q900 - a compact industrial edge AI box

The Fogwise® AIRbox Q900 is a high-performance embedded AI micro-server, powered by the Qualcomm IQ-9075. It delivers 200 TOPS@INT8(Sparse), supports multiple precisions (INT8/FP16/FP32), and is engineered for flexible deployment of mainstream AI models like private GPT and text-to-image.

Hardware overview:

• CPU Octa-Core Kryo Gen 6 (based Cortex-A78C) @2.36 GHz
• GPU Adreno 663, 1.2 TFLOPS FP32 with secure GPU compute
  support for Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.0 FP, Adreno NN Direct

• MCU Quad-core Cortex-R52 @ 1.85GHz
• NPU Features the Hexagon Tensor Processor (HTP) with quad HVX and dual HMX  AI Compute：200 TOPS@INT8 (Sparse)
• Video Codec: Adreno VOU 765
  supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 5TOP@INT8

• 36GB 96bit LPDDR5@6400MT/s (with ECC) RAM
• Onboard 128GB UFS 3.1 (Gear4 x2)

• onboard SPI Flash 32MB
• Aluminum Alloy Case for Efficient Heat Dissipation


Interfaces:

• 2x 2.5G GbE RJ45 Ports (with TSN)
• 1x HDMI 2.0 supporting up to 4K@60fps
• 1x M.2 M Key Connector with (PCIe Gen4 x4)

• 1x Mini PCIe Slot (supports WiFi6/BT5.4 and 4G/5G Mini PCIe module)
• 1x USB3.1 Gen2 Type‑A OTG Port for Data and Debug
• 1x USB3.1 Gen2 Type-A HOST port
• 1x PWM Fan Connector
• 1x RTC Battery Connector
• 1x 12V5.4A DC Jack 5525 power input
• 1x maskrom button
• 1x Power button
• 1x EDL Button


Software:

• Ubuntu
• Yocto

Power options and demands:

• via DC Jack 5525 with 12V (12V/5.4A)

Dimensions: 104 x 84 x 45mm

Operating Temperature 0 ~ 60°C
