M.2 PCIe to 4x SATA3.0 module

Taxes and shipping calculated at checkout
SKU: IO-M2F9235-4I

Product information

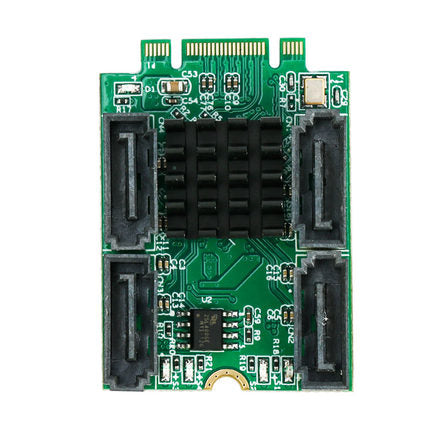

Marvell 9235 based M.2 PCIe to 4x SATA3.0 module

Product Specs

  • Marvell 9235 based M.2 module
  • 2-Lane M.2 PCI-Express 2.0 interface (B + M Key)
  • Communication speed of 6.0Gbps,3.0Gbps,1.5Gbps.
  • IDE programming interface register for the SATA controller.
  • AHCI programming interface register for the SATA controller.
  • Message Signaled Interrupt(MSI).
  • Compliant with Serial ATA Specification 3.0.
  • Programmable transmitter signal levels.
  • Compliant to Gen 1i,Gen 1x,Gen 2i,Gen 2m,Gen 2x,and Gen 3i.
  • 4 SATA 3.0 Ports.
  • Native Command Queuing (NCQ)
  • FIS based Port Multiplier
  • Note: No hardware RAID

Can only be used with the Rock Pi M.2 Extension board on Rock Pi 4!

When installing with the ROCK PI M.2 Extension board please handle with care, and read the attached note in the package!

Package Contents
  • 1 x M.2(PCIe) to SATA 6G adapter
  • 1 x User Manual
  • 1 x Driver CD

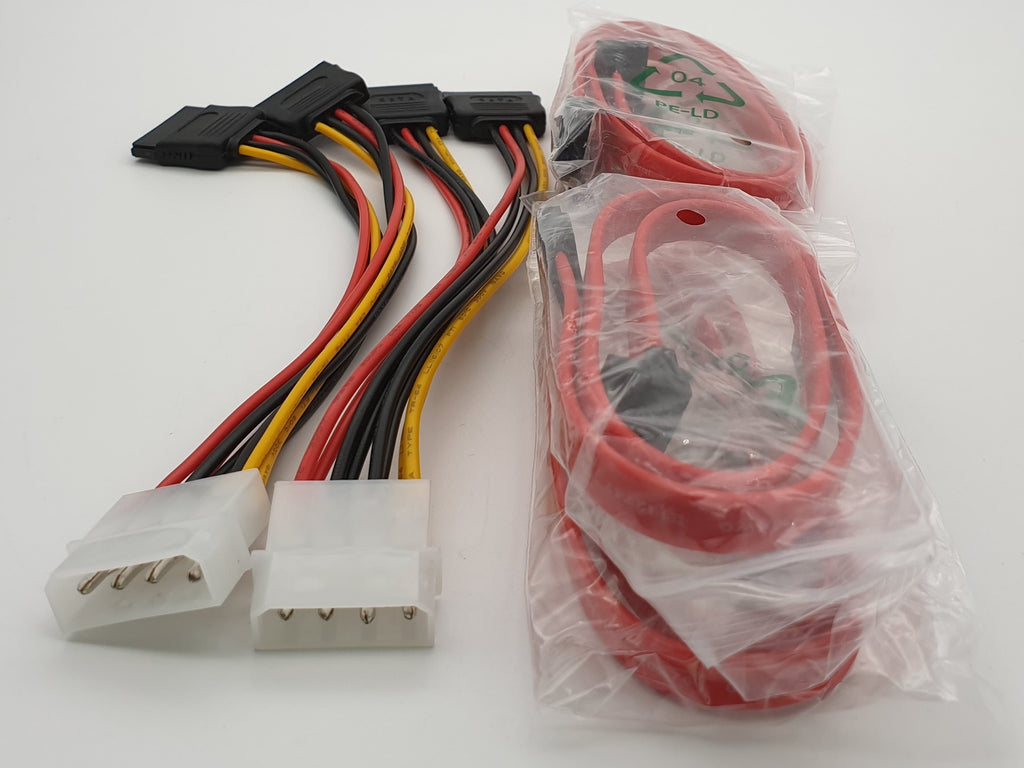

  • 2 x SATA Power Cable for 2 SATA devices
  • 4 x SATA Cable

Software Requirements:
Windows Server 2003,2008,2012,2016
Windows  XP, Vista, 7, 8,8.1,10
Linux 2.6.x and above
Mac OS 10.3 or later version
Linux distributions contain Inbox drivers for AHCI devices.The drivers are installed automatically during the Linux OS installation.
