Product information

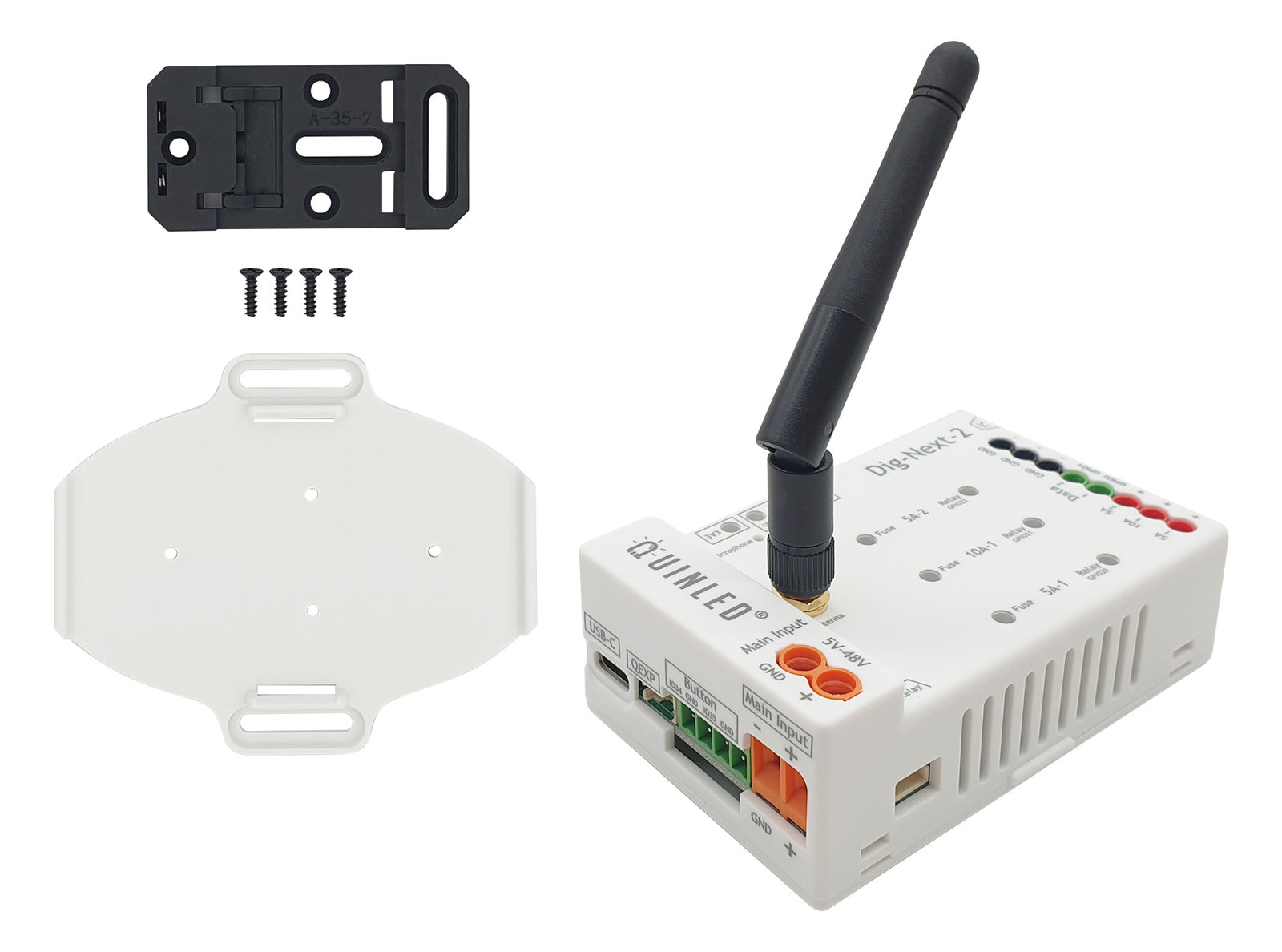

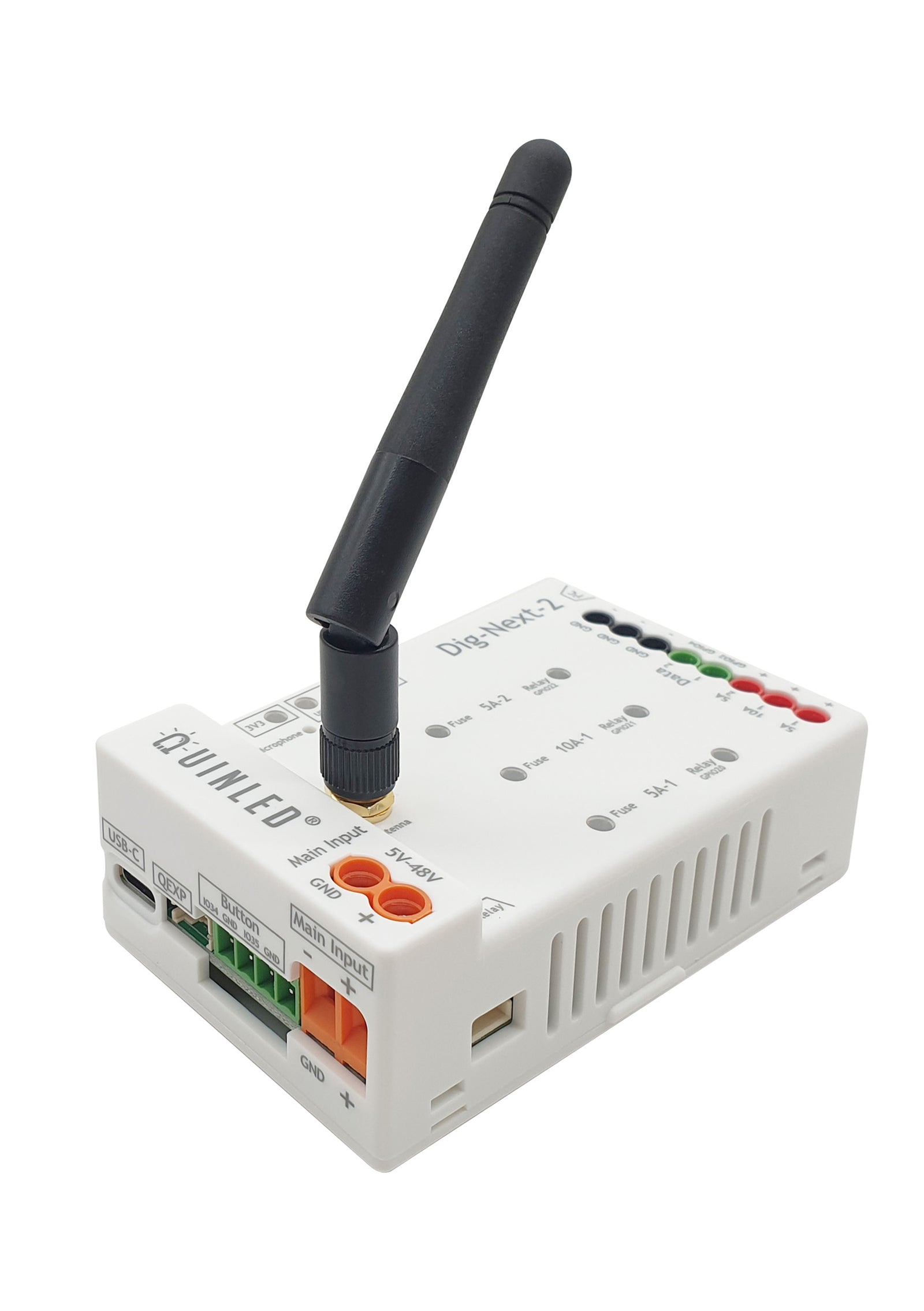

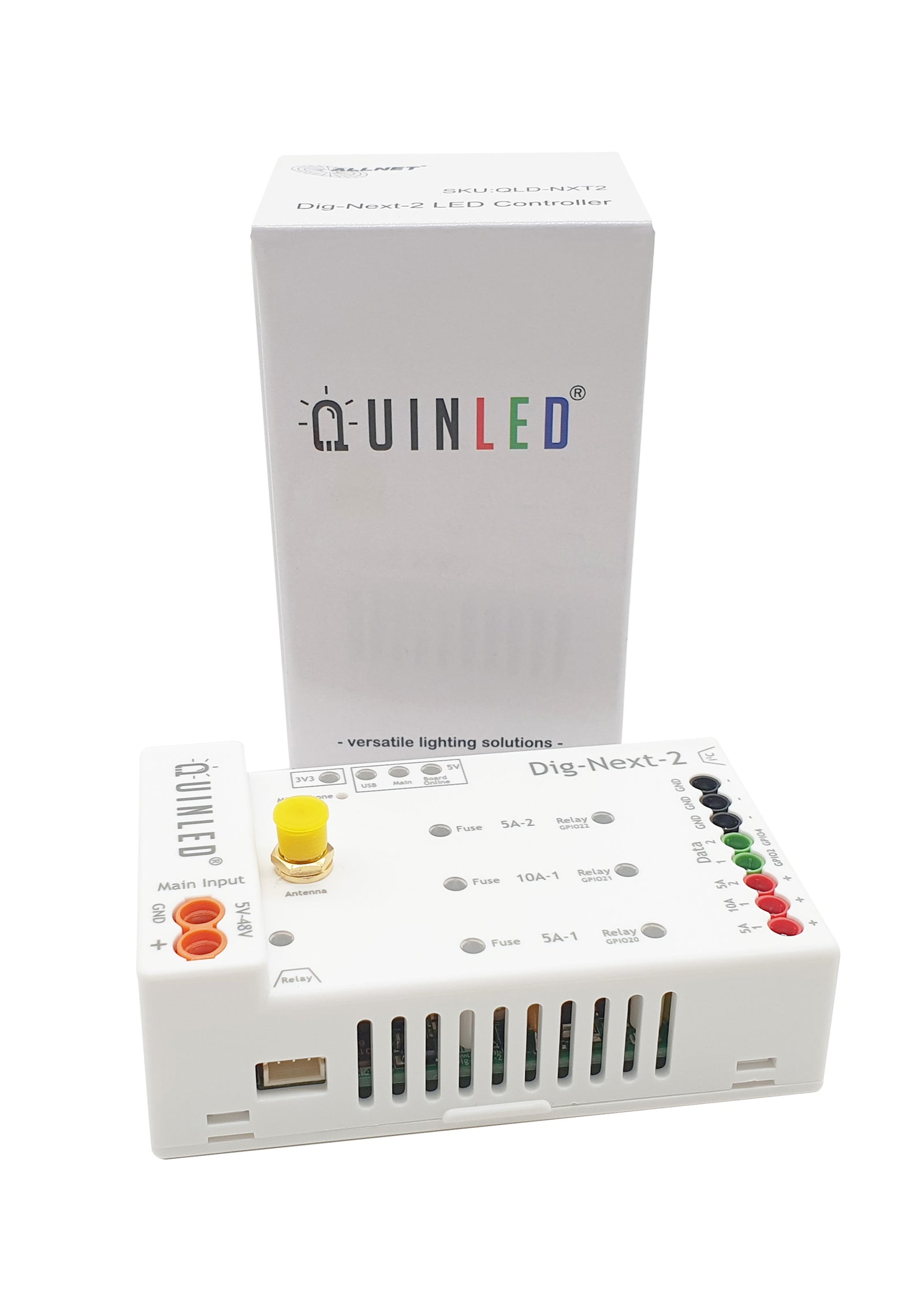

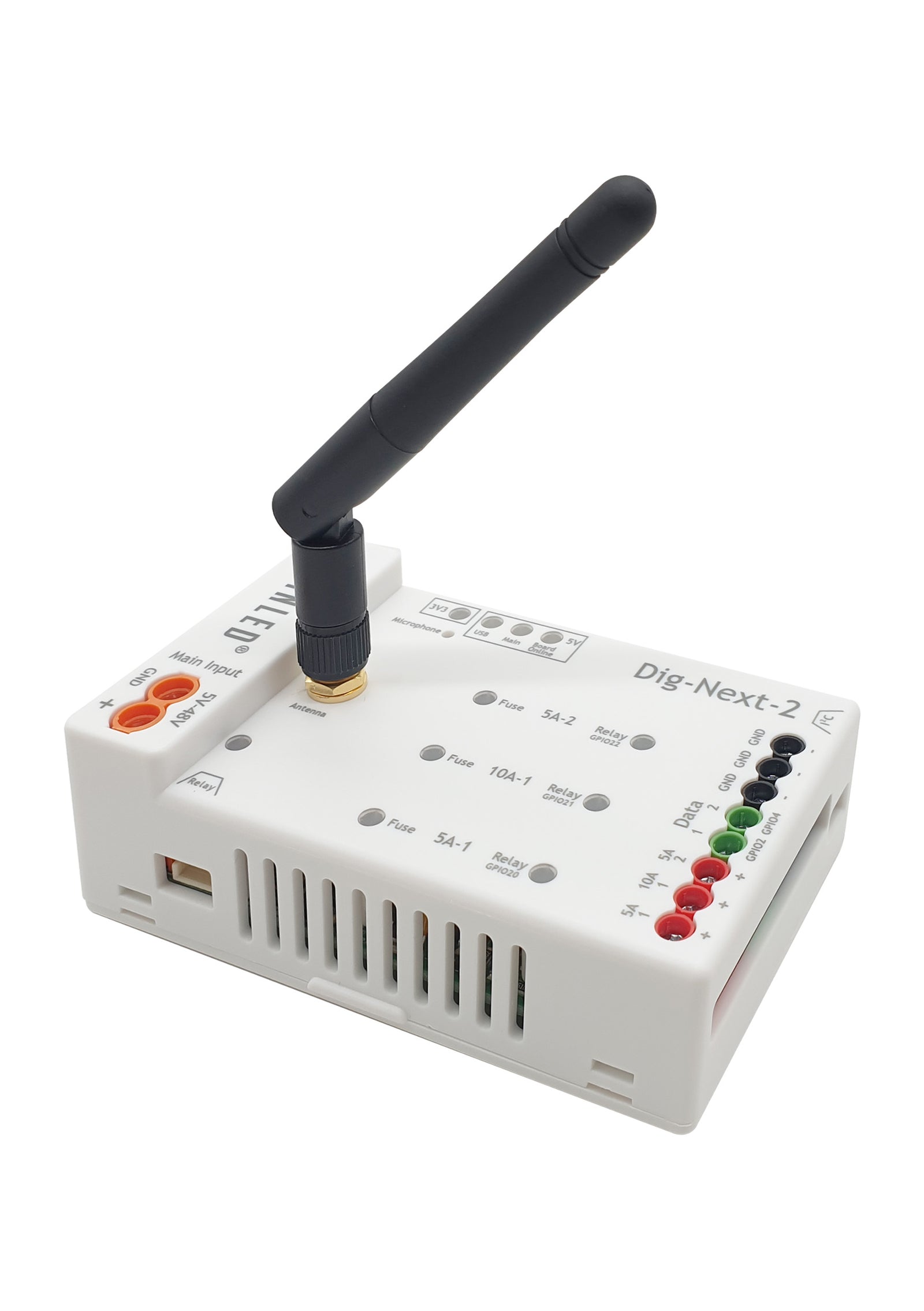

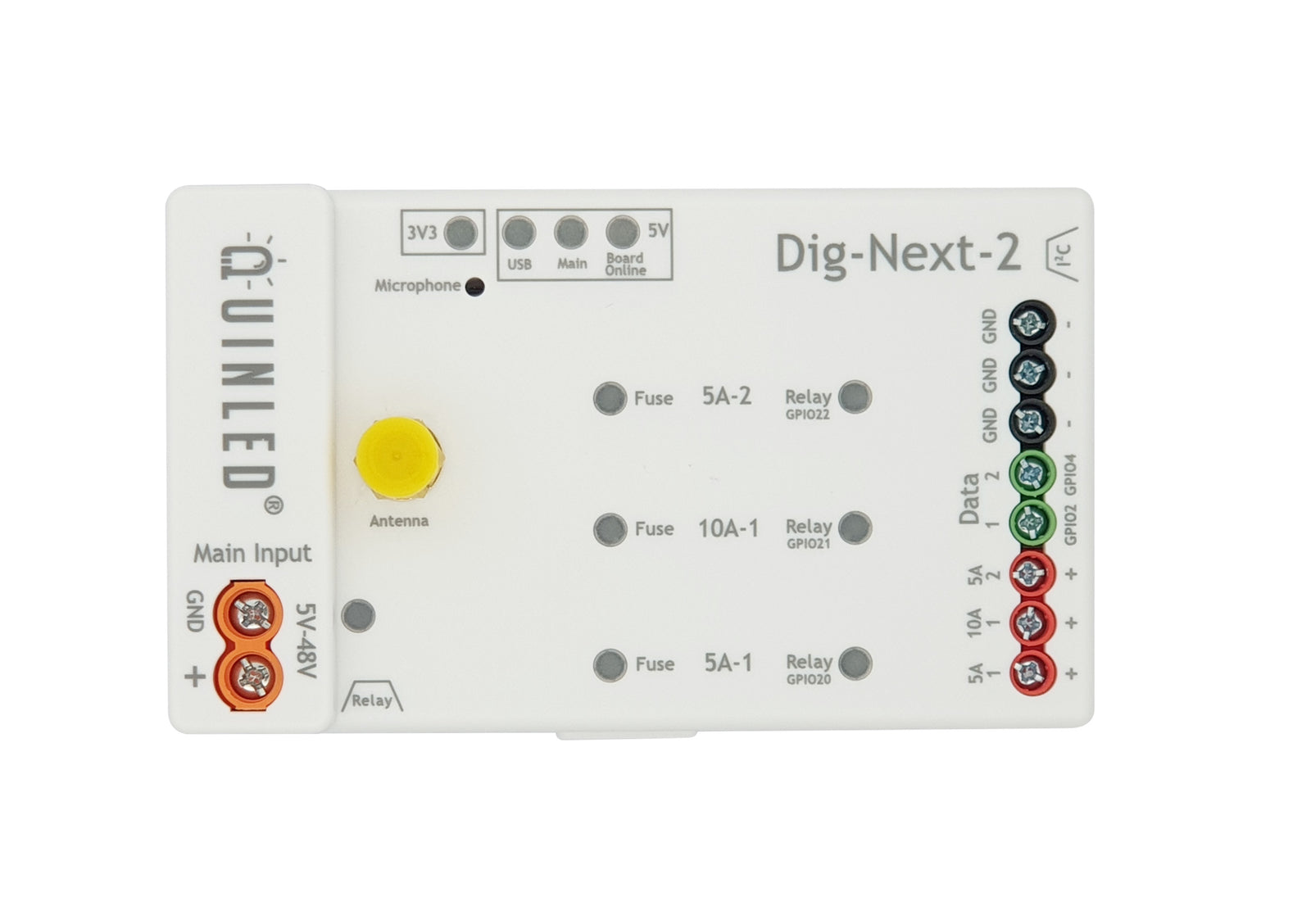

The Dig-Next-2 is the first of the Dig-Next line-up and it’s meant as an easy to use but very feature rich addressable LED controller. It is geared towards entry to medium size LED setups providing unique features that will elevate it to the next level.
Dig-Next-2 was carefully designed based on the combined experience of thousands of LED installations over the last years with a focus on what users need most - an easy to install and safe LED setup.
Hardware specifications:
ESP32 based
Dual Core 240MHz microcontroller, 8MB Flash, 2MB PSRAM
2.4Ghz WiFi built in with external antenna
1x Orange 6.35mm Power input terminal
2x Green 5.08mm Data output terminals
3x Red & Black 5.08mm Power output terminals
Individually fused per output channel
Auto and True 5V-48V support
Special features:
Designed for high current
Dual Power-In feature
Built in Microphone
Various expansion options
100% compatible with WLED, ESPhome, FastLED, Moonlight, etc.
Fully stress and error tested design
Dimensions: 93x55.5x32mm (L/W/H)
CE & RoHS compliant and certified
Find more technical details to this outstanding controller here: QuinLED Dig-Next-2
How to set up the wiring of your Dig-Next-2 QuinLED Dig-Next-2 Wiring Guide
