QuinLED Dig Uno v4 DIGITAL LED controller

Extremely cool, flexible and easy to use Digital LED controller! - NEW V4 Version

Perfectly integrates into your home automation or easy to use as a stand alone solution!

Technical details:

• QuinLED ESP32 based programmable LED controller
• Choice of 3 different ESP32 module variants
• AB (Antenna Board)

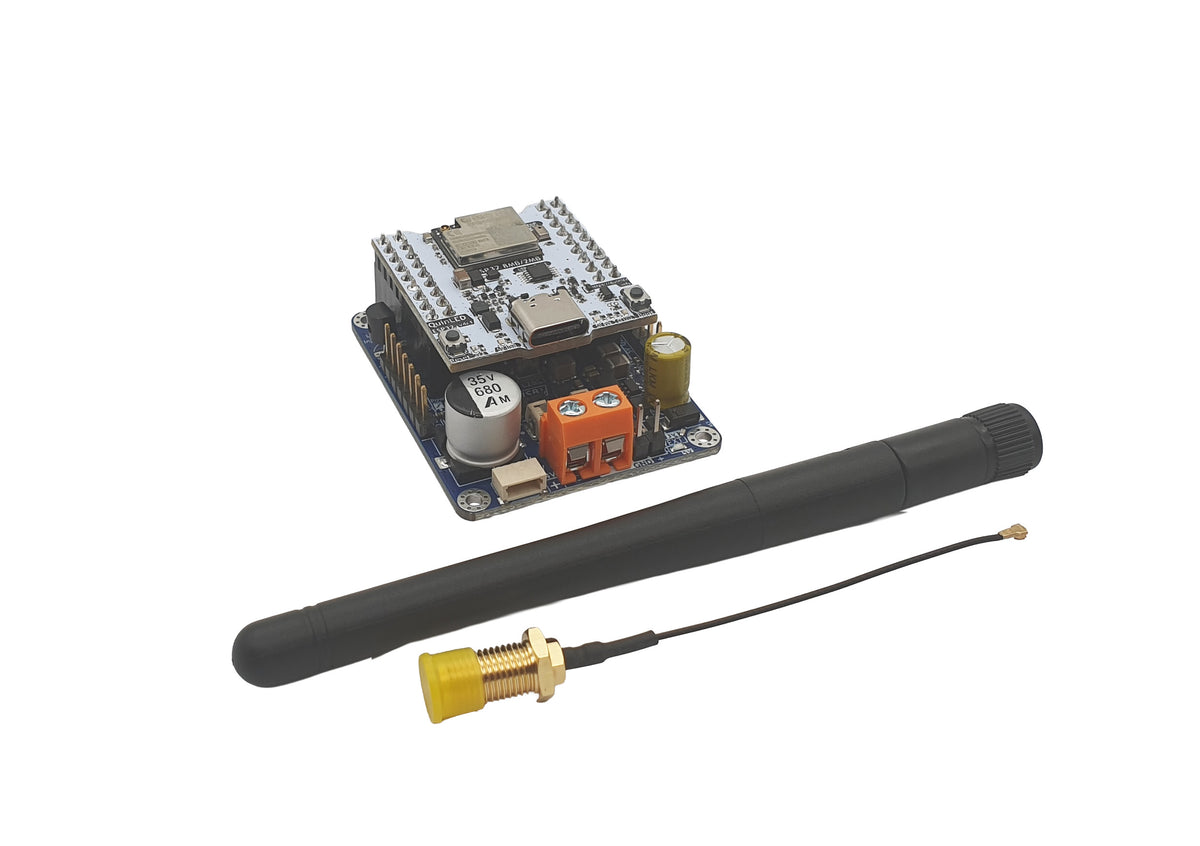

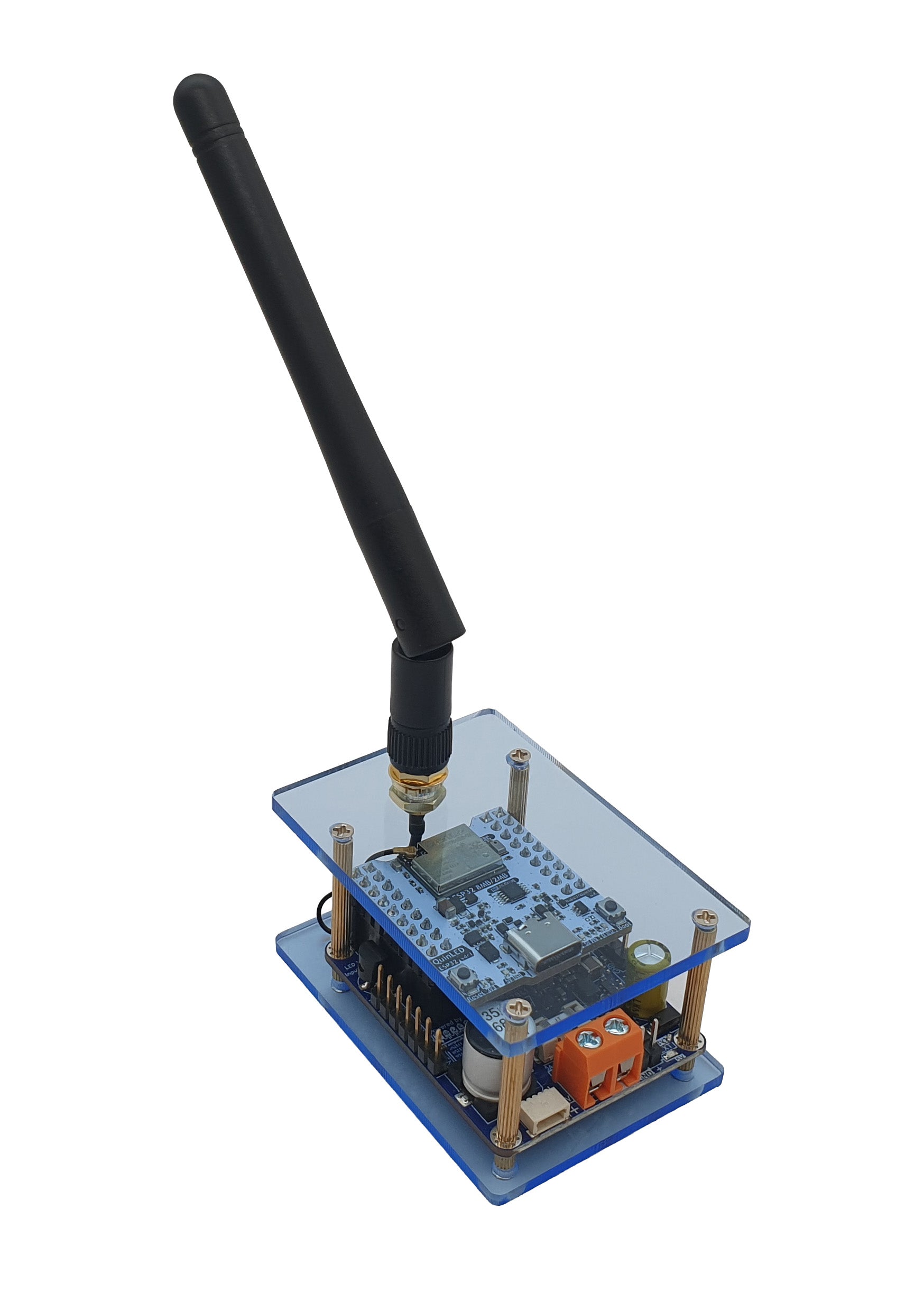

• AE (Antenna External) (incl. ext. antenna)

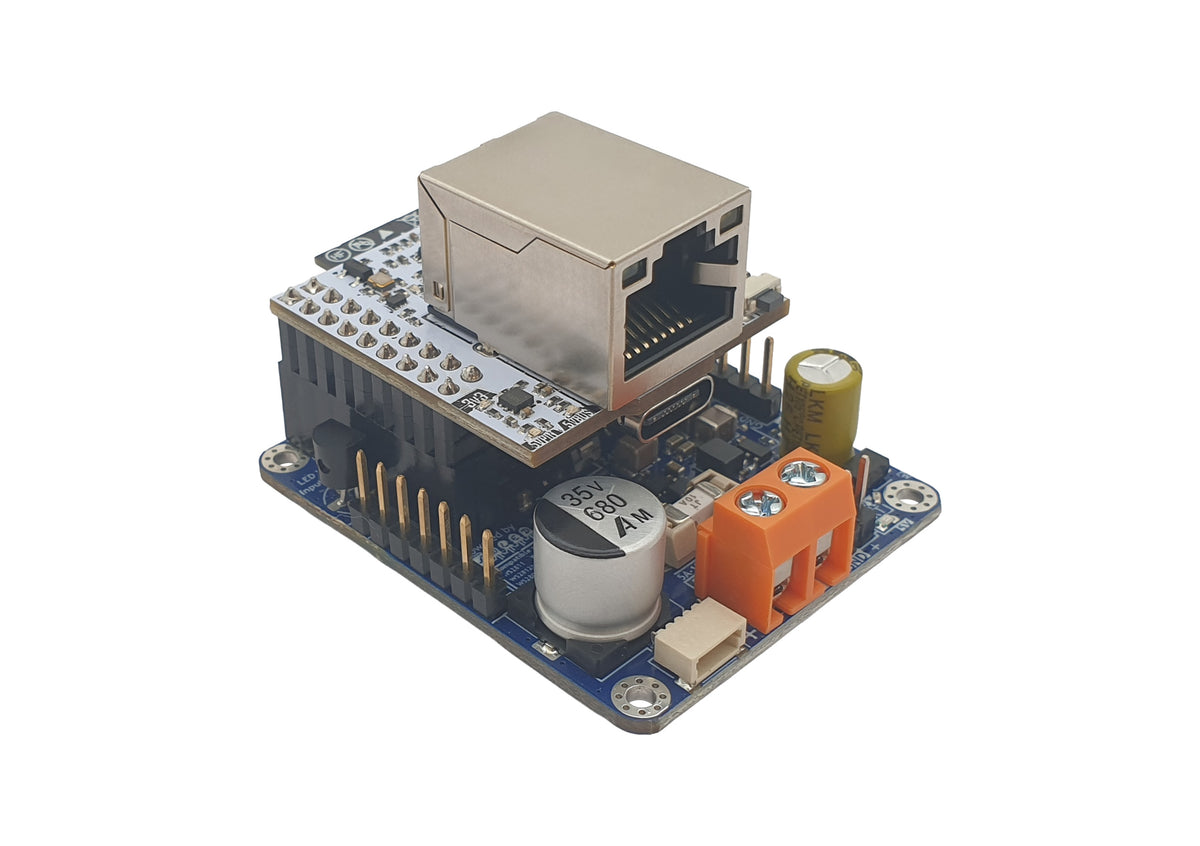

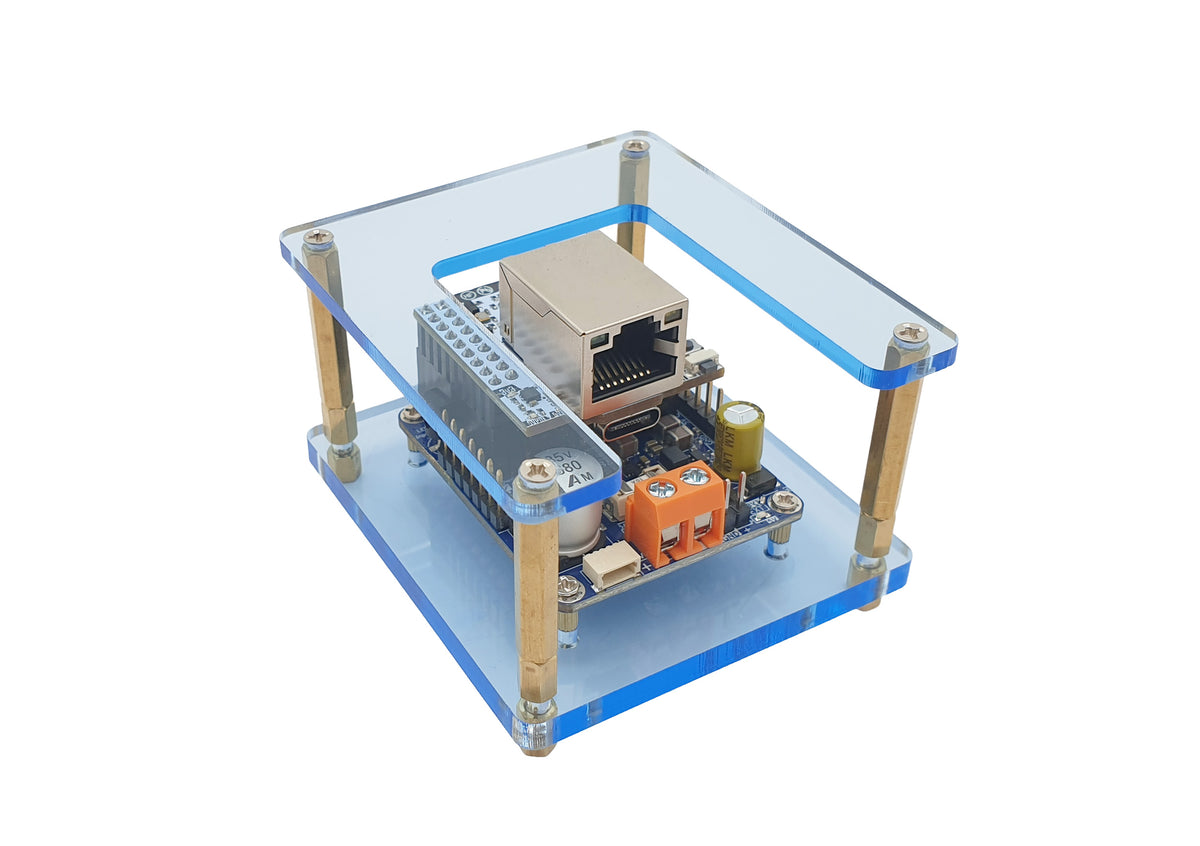

• ABE (Antenna Board + Ethernet)
• Dual Channel controller (when using WLED 0.12.0)
• Official WLED support
• Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code

• Integrates with MQTT or Home Assistant native API (use WLED FW)
• Remote control available via Android or iOS app (WLED FW)
• Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
• Auto 5V-24V input voltage select
• Auto 5vEXT with 5-24V standby auto select
• High current handling (up to 15A)
• On-board fuse and reverse polarity protection
• Compatible to 5V*, 12V** and 24V LED strips, strings or panels
• On-board temperature sensor
• 6 GPIO pins (e.g. PS Relay, IR control or I2C display)
• Works with most currently available LED strips/strings or panels*

* ws2811, ws2812b, sk6812, APA102

**ws2811, ws2815

Product content:

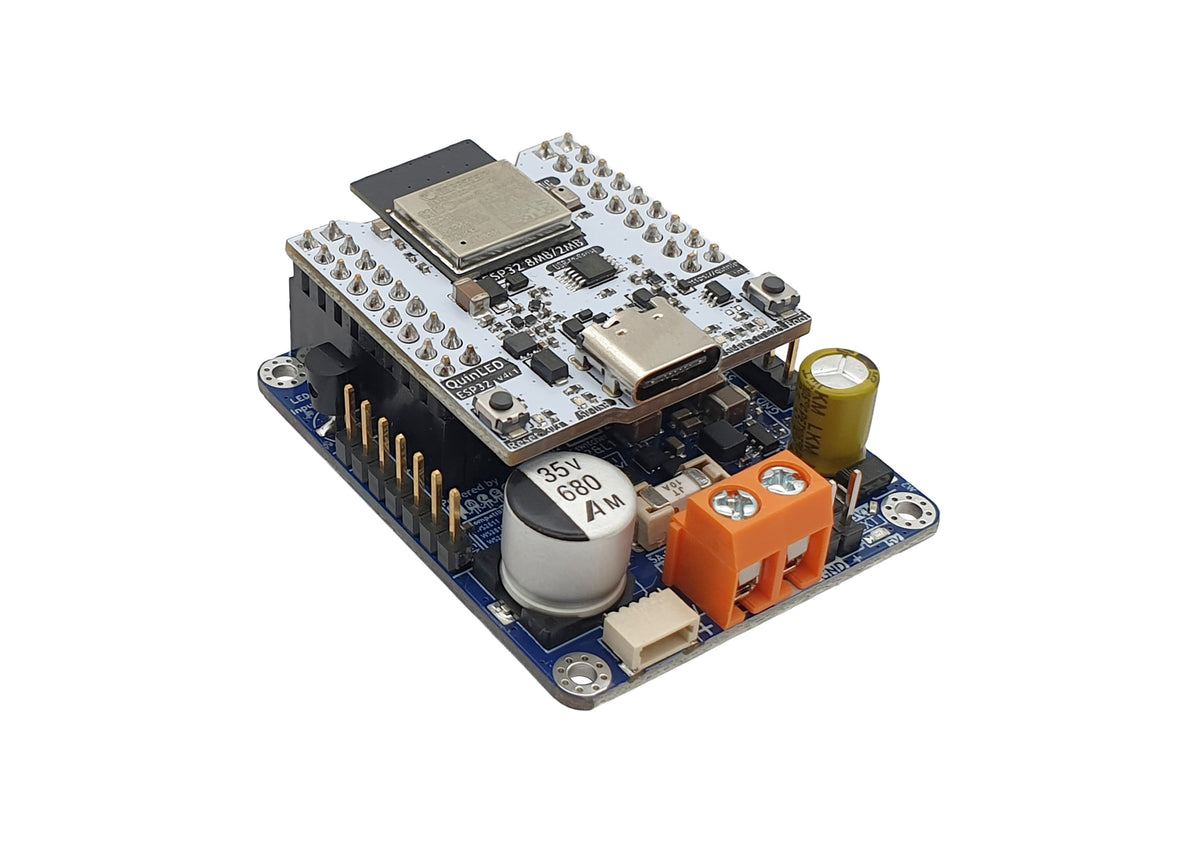

• QuinLED Dig Uno v4 LED controller
• QuinLED-ESP32 WIFI module with USB-C interface
• Pre flashed WLED firmware for instant use
• please check the different product variants available

OUTSTANDING!

• With a few simple steps to a working system
• Easy to use and at the same time ready for complex setups
• Extremely detailed library and resources
• Very supportive community and developer
• You have a question to LED and LED related applications - go QuinLED

Youtube introduction and instructions (v4.x coming soon)

• QuinLED-Dig-Uno introduction and features

• WLED setup tutorial (also phone app)

• QuinLED-Dig-Uno /WLED  Home Assistant integration

• Showcase for various LED effects

• Introduction on different types of LED strip, string and panels


More details and resources here: (update coming soon)

• In depth information on LEDs

• Wiring diagrams, articles, simply everything related to LEDs

• @ https://quinled.info
