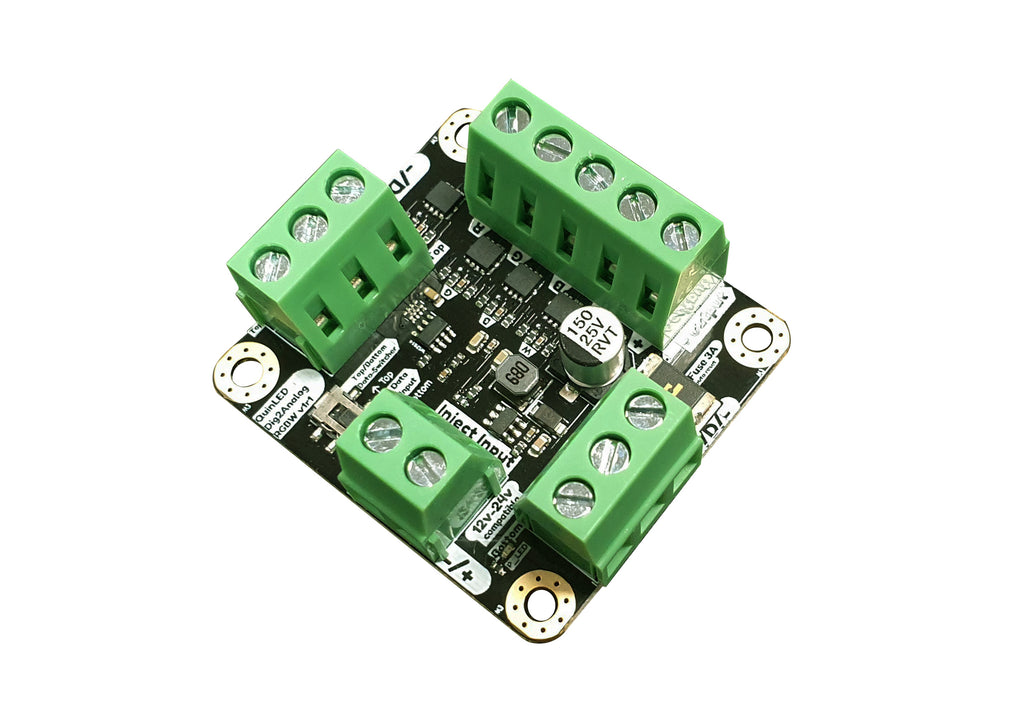

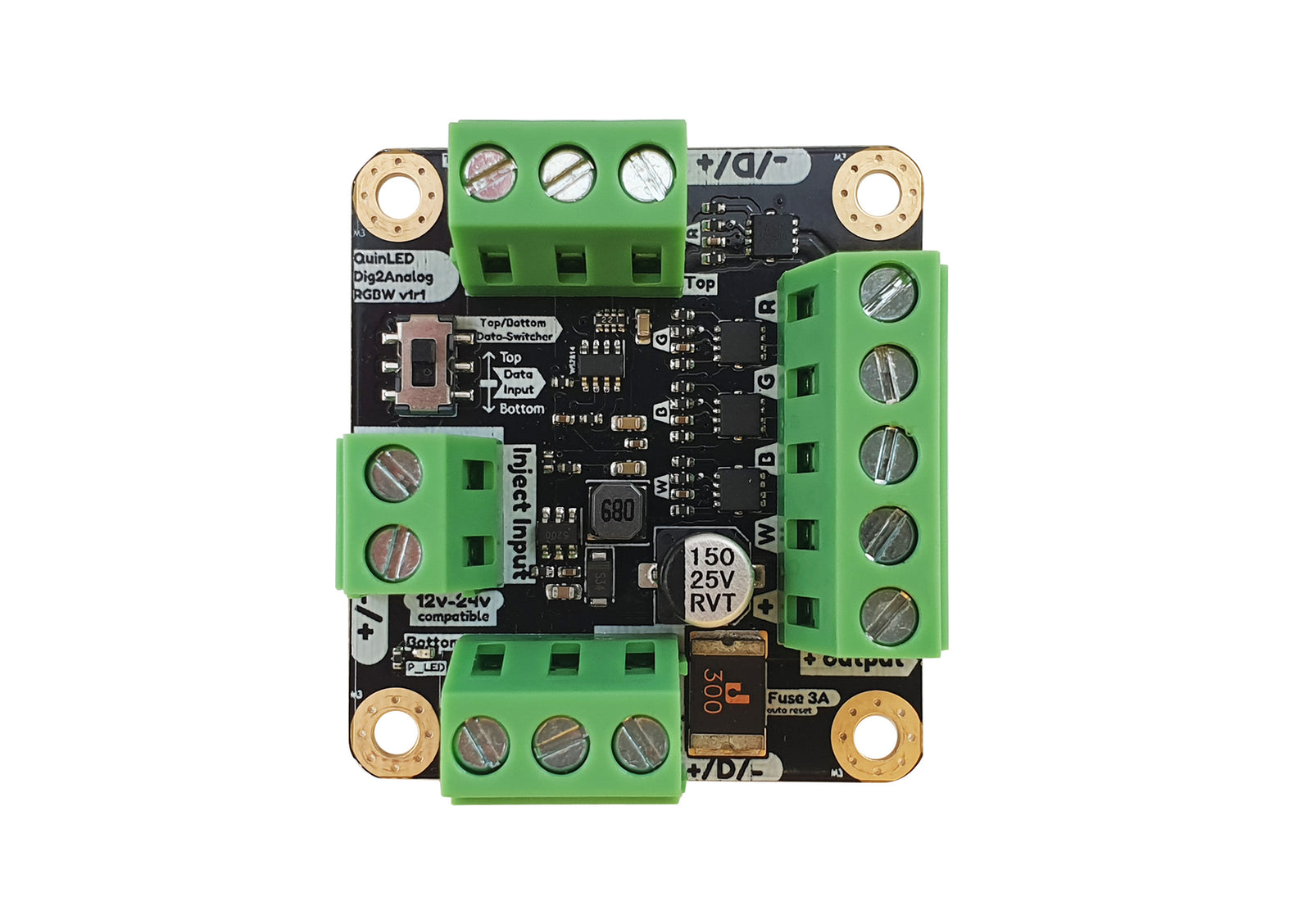

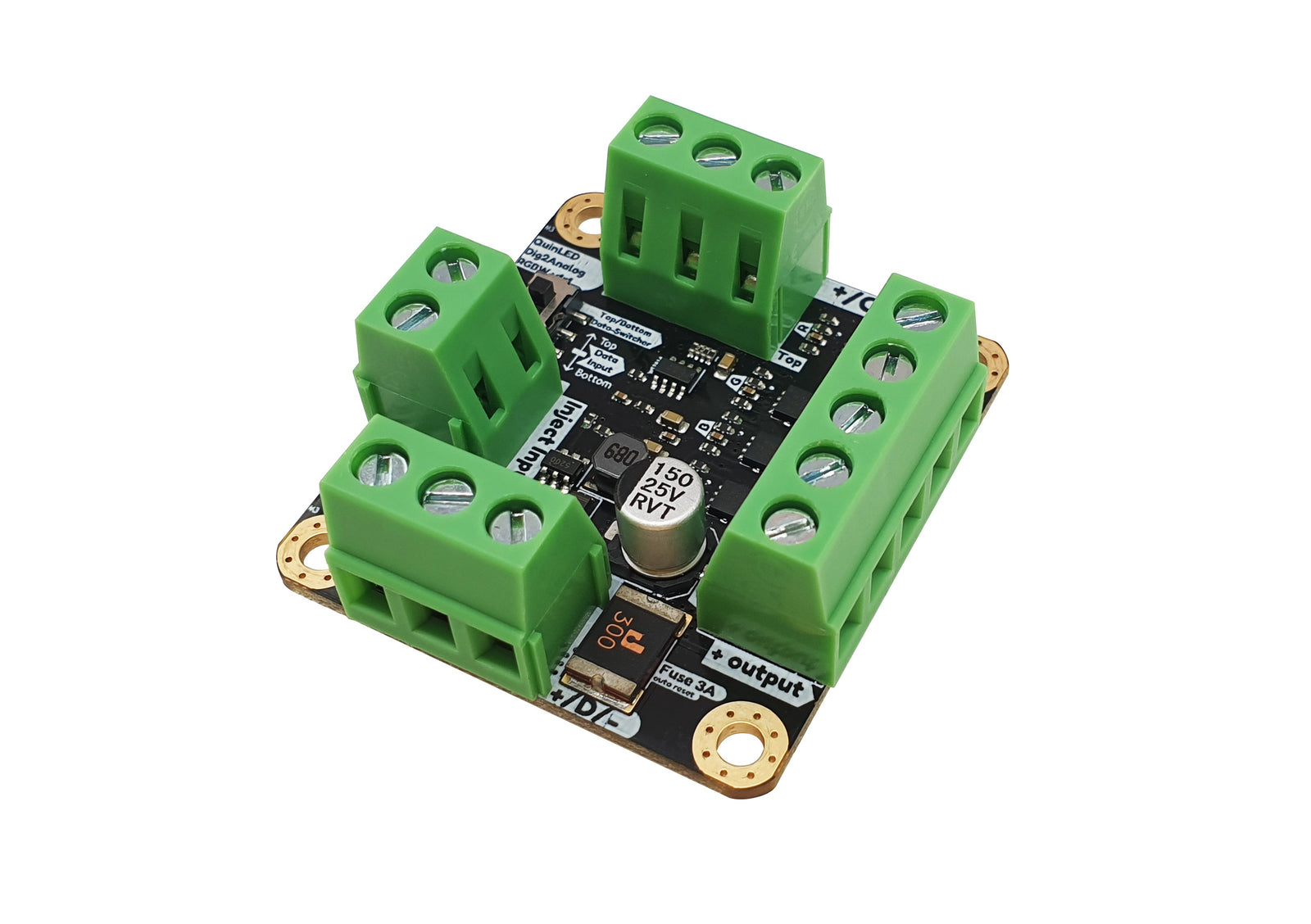

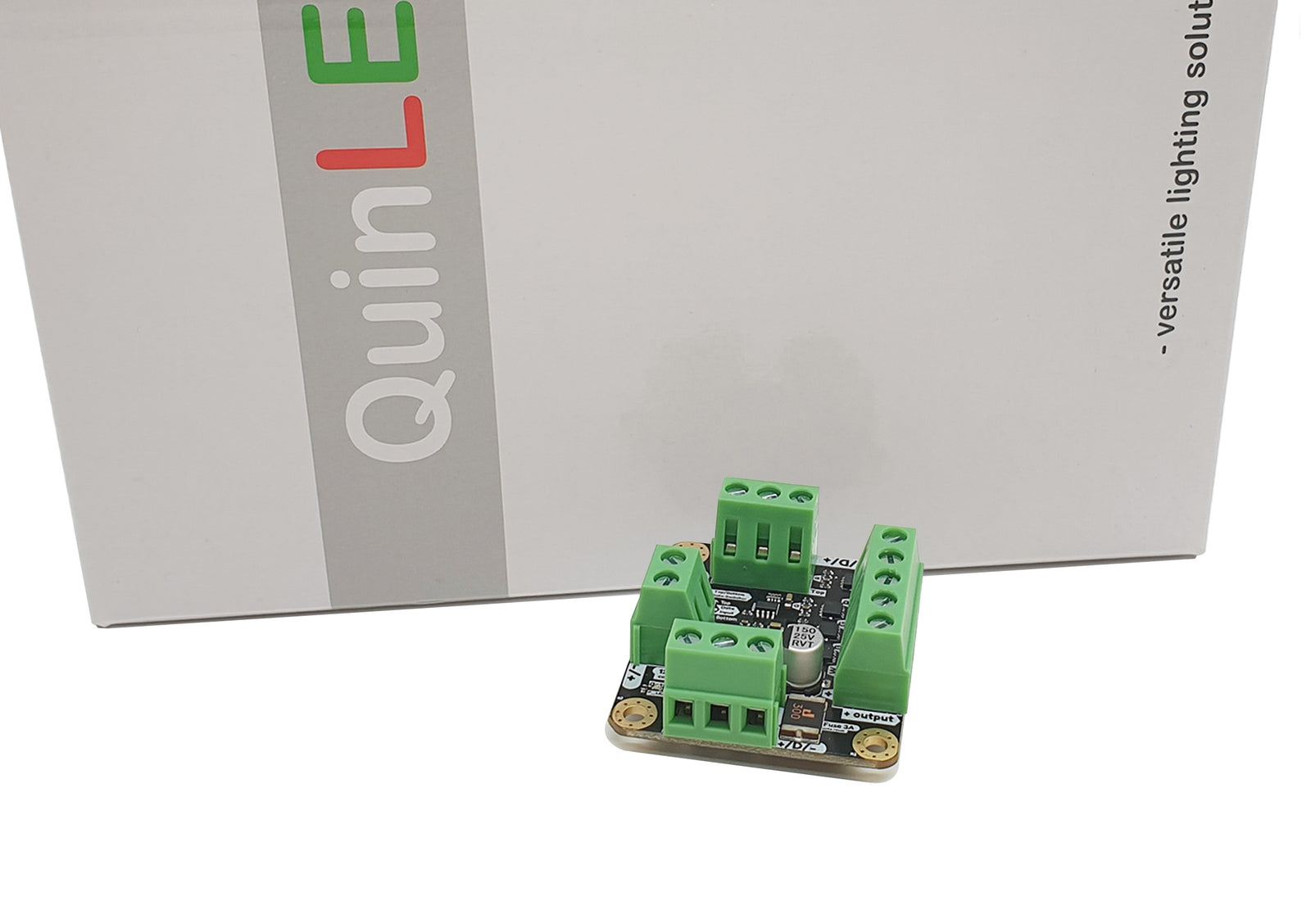

QuinLED Dig2analog

QuinLED Dig2analog
$7.49

Dig2analog enables your digital QuinLED controllers to manage analog LED strips!

The dig2analog is based on the WorldSemi WS2814F chip. This chip is used to “extract” the data for a single digital LED/Pixel and the board converts it to a PWM output, able to drive Dumb/Analog 12v or 24v LED strips with PWM up to RGBW.

← Back to QuinLED Controllers and Accessories

Dig2analog enables your digital QuinLED controllers to manage analog LED strips!

The dig2analog is based on the WorldSemi WS2814F chip. This chip is used to “extract” the data for a single digital LED/Pixel and the board converts it to a PWM output, able to drive Dumb/Analog 12v or 24v LED strips with PWM up to RGBW.

The board acts like a single digitally addressable LED and converts it to control dumb style RGBW LED strips.

Dig2analog boards can be daisy chained and each acts as it´s own Pixel or LED.

Sample use cases:

  • Use high quality, white Analog/Dumb LED strips (with CRI95) without any additional controller
  • Use much higher brightness Analog/Dumb LED strips
  • Hybrid staircase installations with “unlimited” number of steps (each step can do RGBW individually)
  • Long distance location from controller - if the spot you wish to control your analog strips is far away you can send the data signal there (including differentially) and then do the PWM dimming locally near the LED strip
  • You need lots of channels? - each dig2analog provides 4 individual channels but you can chain up to 400 of them on a single data connection!

There are plenty of other use cases - please find the complete overview and set up instructions here:

https://quinled.info/quinled-dig2analog/

 QuinLED dig2analog setup drawing
