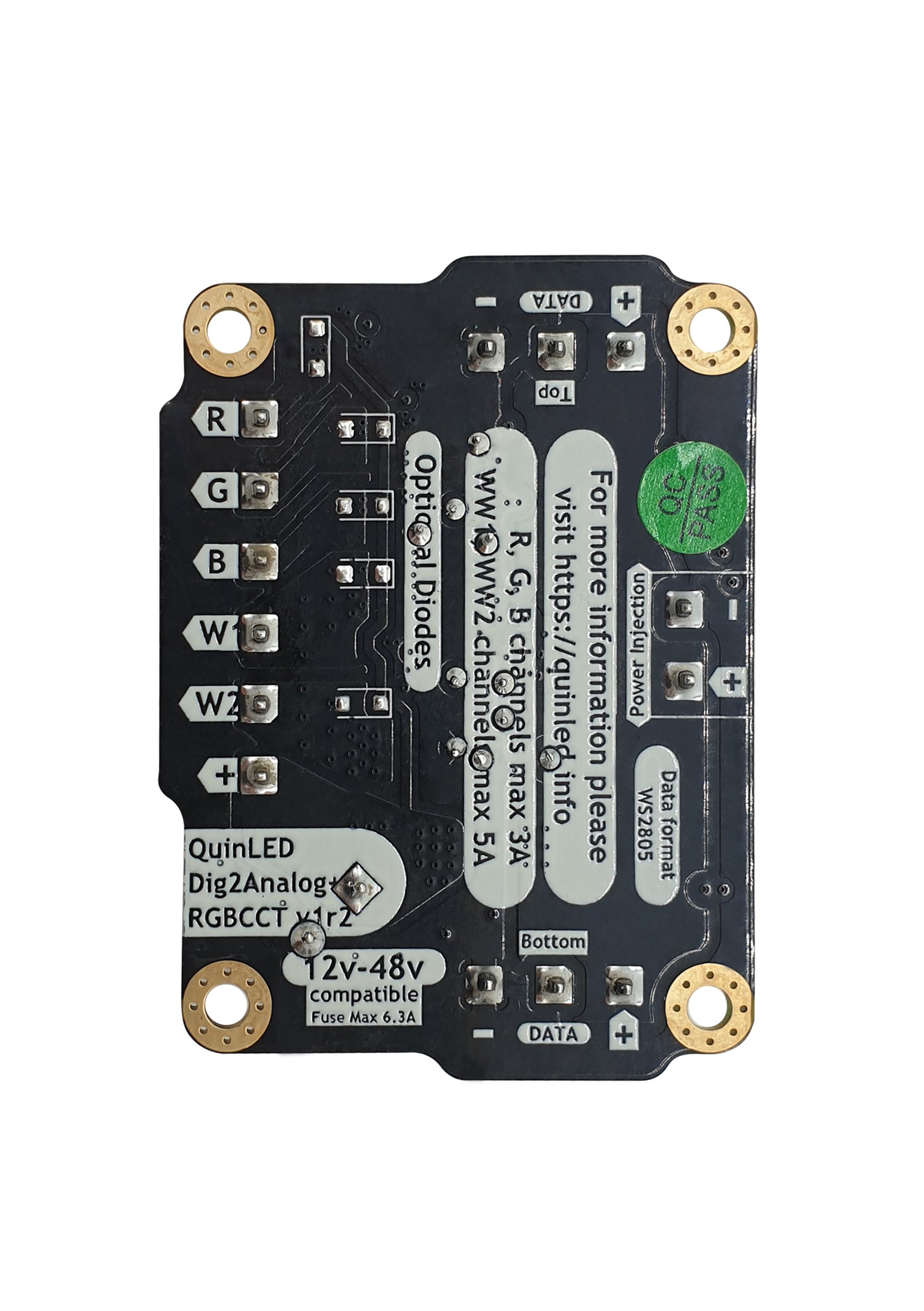

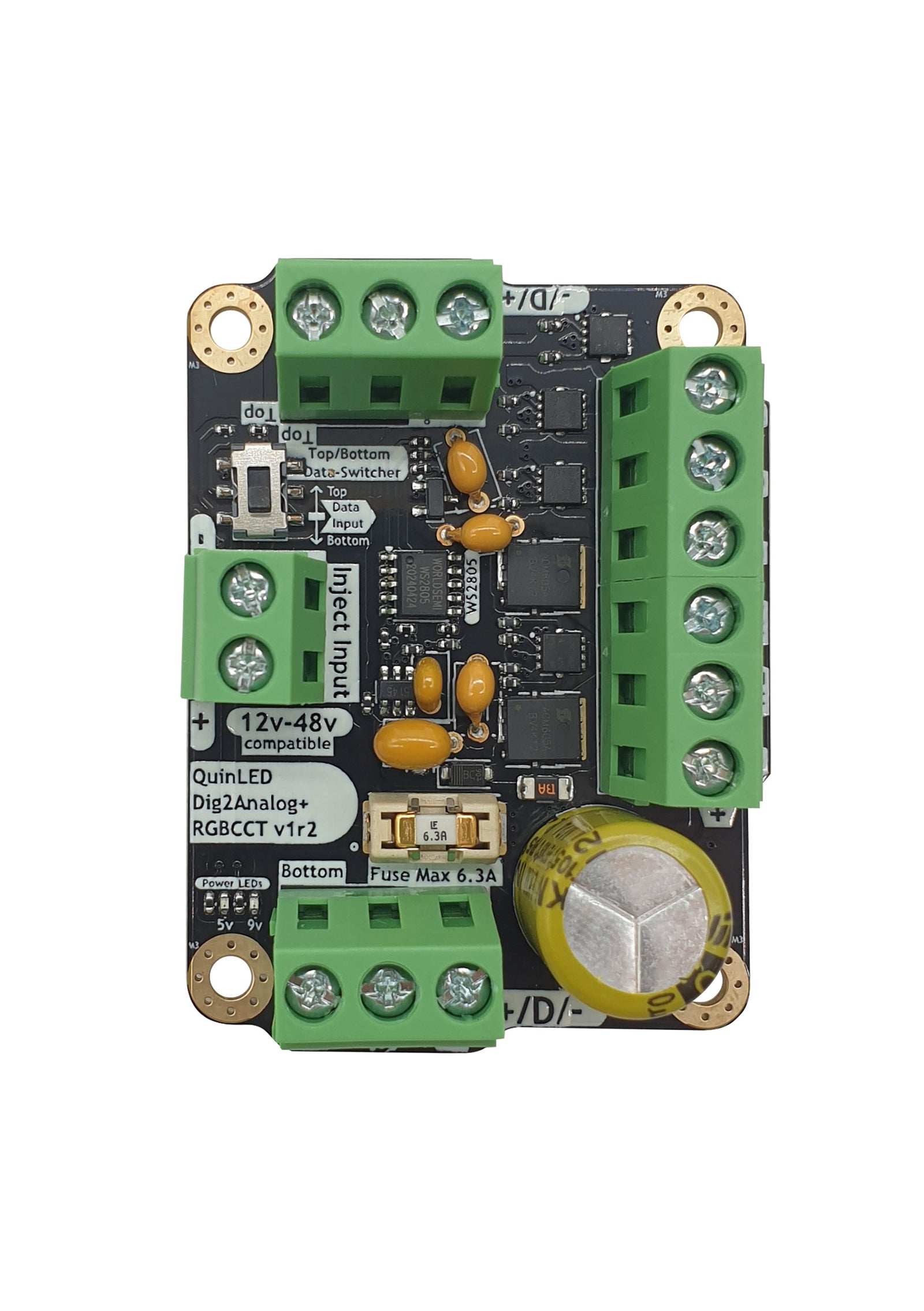

QuinLED Dig2analog plus (+)

Dig2analog+ enables your digital QuinLED controllers to manage analog LED strips!

The dig2analog+ is based on the WorldSemi WS2805F chip and is an upgrade to the "non +" variant. This chip is used to “extract” data from a single digital LED/Pixel and the board converts it to a PWM output, able to drive Dumb/Analog 12v to 48v LED strips with PWM up to RGBCCT (RGB + dual white). It then sends on the rest of the data signal for another board to be picked up - allowing you to daisy chain multiple of these boards.

The board acts like a single digitally addressable LED but allows you to run a whole LED strip as a single pixel.

Dig2analog+ boards can be daisy chained and each acts as it´s own Pixel or LED in series.

Sample use cases:

• Use high quality, white Analog/Dumb LED strips (with CRI95) without any additional controller
• Use much higher brightness Analog/Dumb LED strips
• Hybrid staircase installations with “unlimited” number of steps (each step can do RGBCCT individually)
• Long distance location from controller - if the spot you wish to control your analog strips is far away you can send the data signal there (including differentially) and then do the PWM dimming locally near the LED strip
• You need lots of channels? - each dig2analog+ provides 5 individual channels but you can chain up to 400 of them on a single data connection!

There are plenty of other use cases - please find the complete overview and set up instructions here:

https://quinled.info/quinled-dig2analog-plus/
