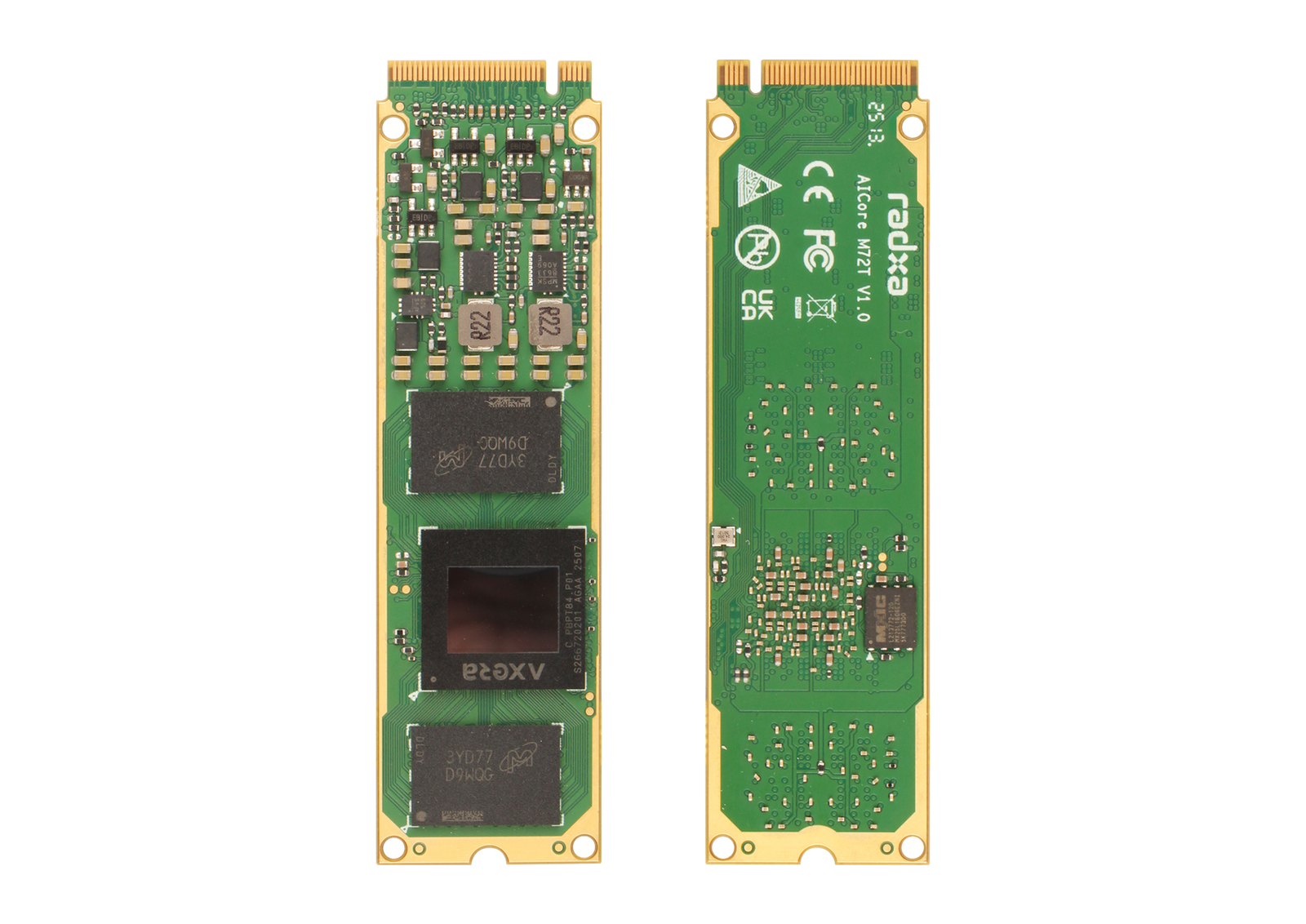

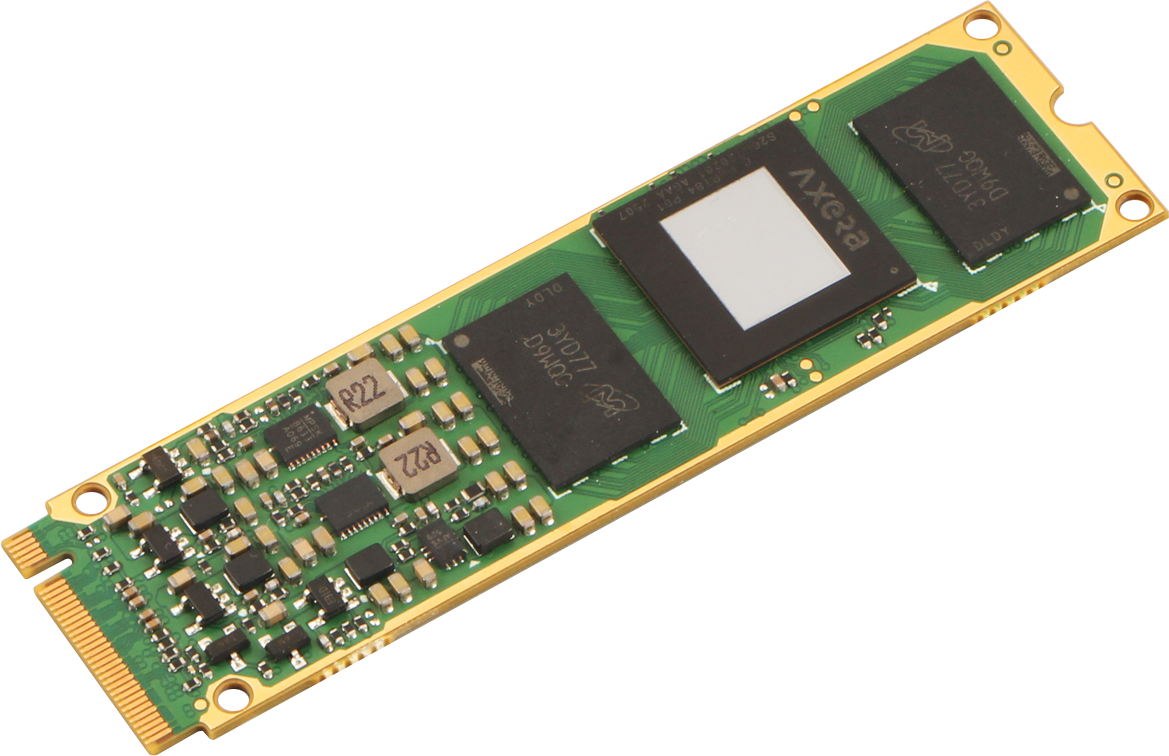

RADXA AICore AX-M1

Radxa AICore AX‑M1 is a high‑performance M.2 acceleration module based on Axera’s
AX8850 SoC, featuring high computing power and energy efficiency ratio, specifically
designed for edge AI computing and AI inference applications.

It integrates a multi‑core high‑frequency CPU with a dedicated neural processing unit (NPU), delivering exceptional multimedia performance and efficient hardware acceleration for diverse edge AI applications

RADXA AICore AX-M1 product details

AX8850 SoC

Octa‑core Cortex‑A55 processor with a frequency up to 1.5GHz

NPU – 24TOPS@INT8, Supports Matrix Arithmetic Unit (MAU) and Intelligent
Video Engine (IVE)

VPU – Supports H.264/H.265 8K@30fps codec and 16‑channel 1080p@30fps
decoding

AI Performance

25 TOPS

Memory

8GB LPDDR4x

Storage

QSPI 1Gbit NAND / NOR Flash

Host Interface

M.2 M Key

Host System

Supports mainstream host platforms including Intel, AMD, Rockchip,
etc.

Software

・ Support for Ubuntu, Debian, CentOS, etc.

AI Frameworks

・ Support TensorFlow
・ ONNX
・ Keras
・ PyTorch by DX‑COM compiler converted

Operating Temperature

‑25 ~ 65°C (Non‑Throttling) / ‑25 ~ 85°C (Throttling)

Host Platform

Supports mainstream host platforms including Intel, AMD, Rockchip,
etc.

Power Consumption

@3.3V ≤ 8W

Form Factor

M.2 M Key, 2280 (22mm x 80mm)

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

Available until at least July 2030
