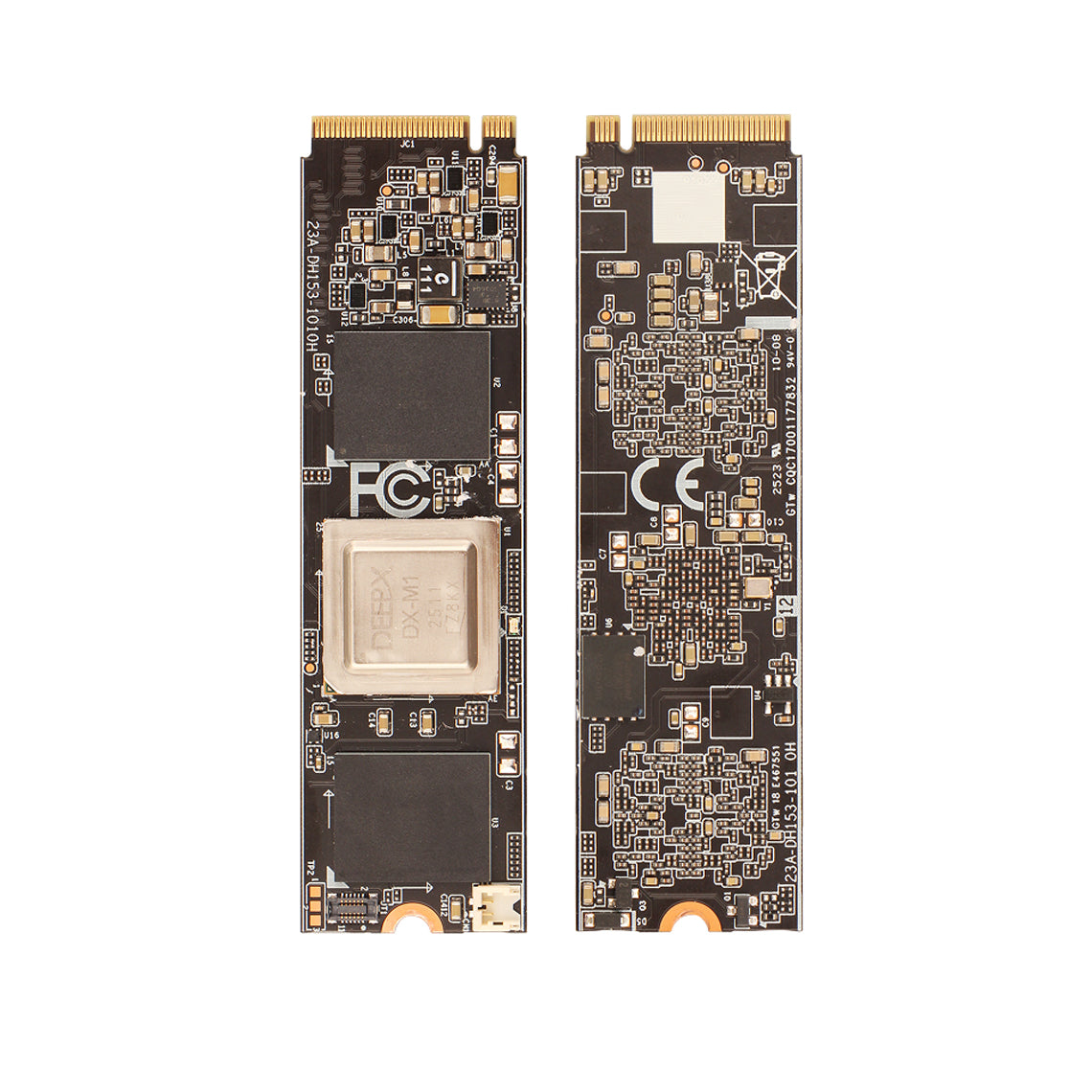

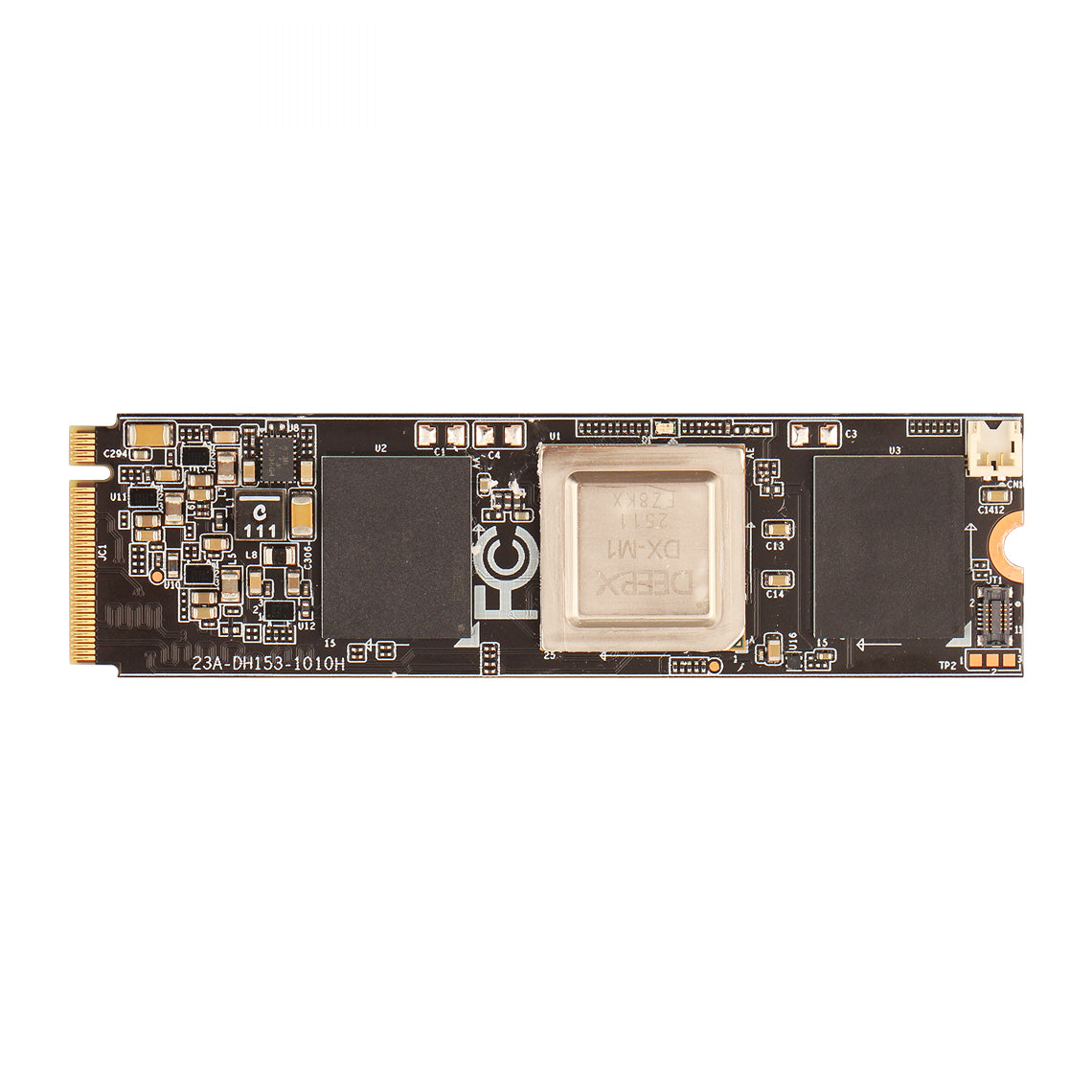

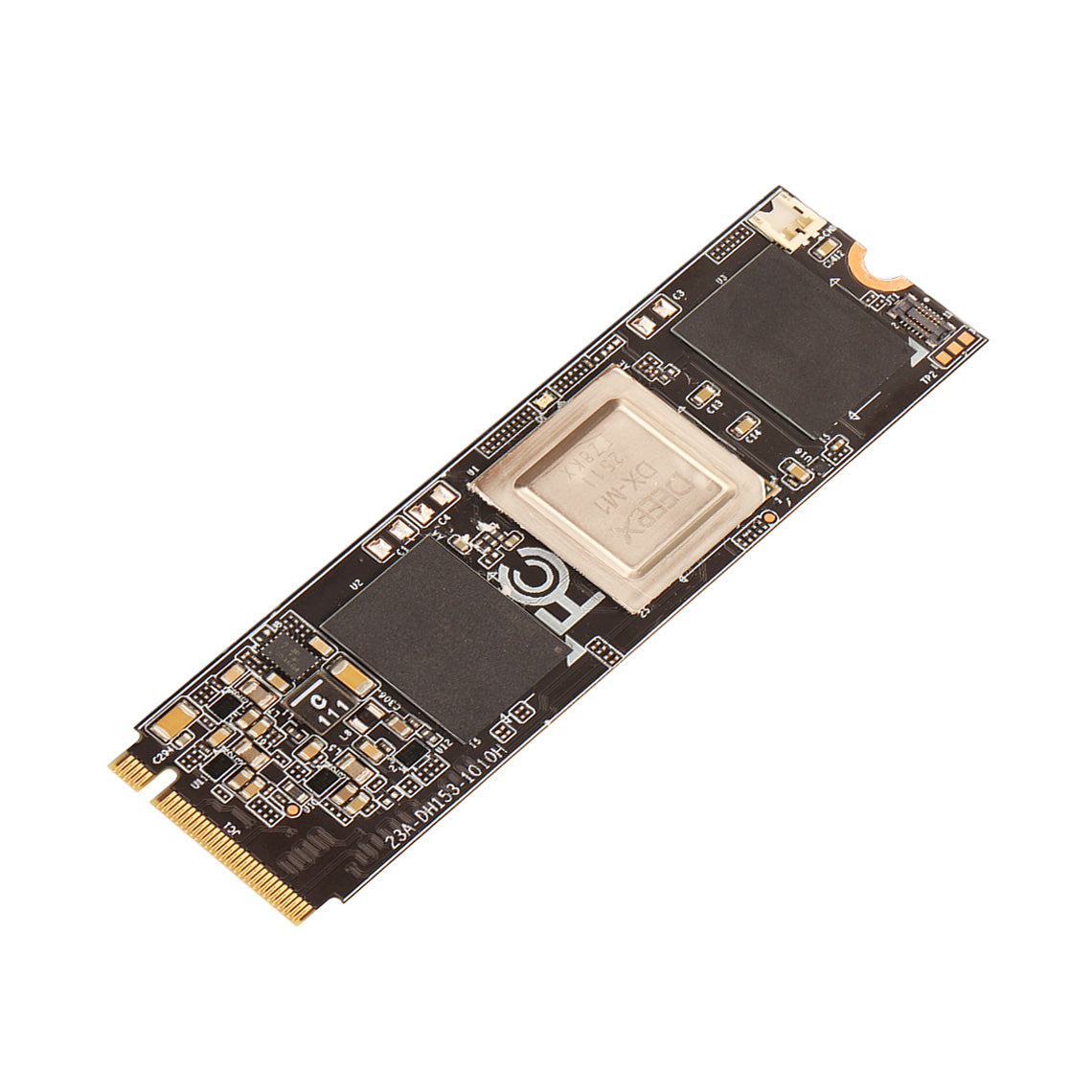

RADXA AICore DX-M1

Radxa AICore DX‑M1 is a high‑performance M.2 acceleration module based on DEEPX’s DX‑M1 module. It features high energy efficiency, high‑precision
computing, and ease of use, specifically optimized for edge computing scenarios and
machine vision.

The Radxa AICore DX‑M1 module is currently compatible with various single‑board com‑
puters (SBCs), such as Radxa ROCK 5B/5B+ and other motherboards.

RADXA AICore DX-M1 product details

DEEPX’s DX‑M1 module

Octa‑core Cortex‑A55 processor with a frequency up to 1.5GHz

NPU – 24TOPS@INT8, Supports Matrix Arithmetic Unit (MAU) and Intelligent
Video Engine (IVE)

VPU – Supports H.264/H.265 8K@30fps codec and 16‑channel 1080p@30fps
decoding

AI Performance

25 TOPS

Memory

4GB LPDDR5 + 1Gbit QSPI NAND Flash

Storage

QSPI 1Gbit NAND / NOR Flash

Host Interface

M.2 M Key

Host System

Supports mainstream host platforms including ARM, x86

Software

・ Support for Ubuntu, Debian

AI Frameworks

・ TensorFlow
・ ONNX
・ PyTorch

Operating Temperature

‑25 ~ 65°C (Non‑Throttling) / ‑25 ~ 85°C (Throttling)

Host Platform

Supports mainstream host platforms including Intel, AMD, Rockchip,
etc.

Power Consumption

@3.3V ≤ 5W

Form Factor

M.2 M Key, 2280 (22mm x 80mm)

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

Available until at least July 2030
