RADXA AICore DX-M1M

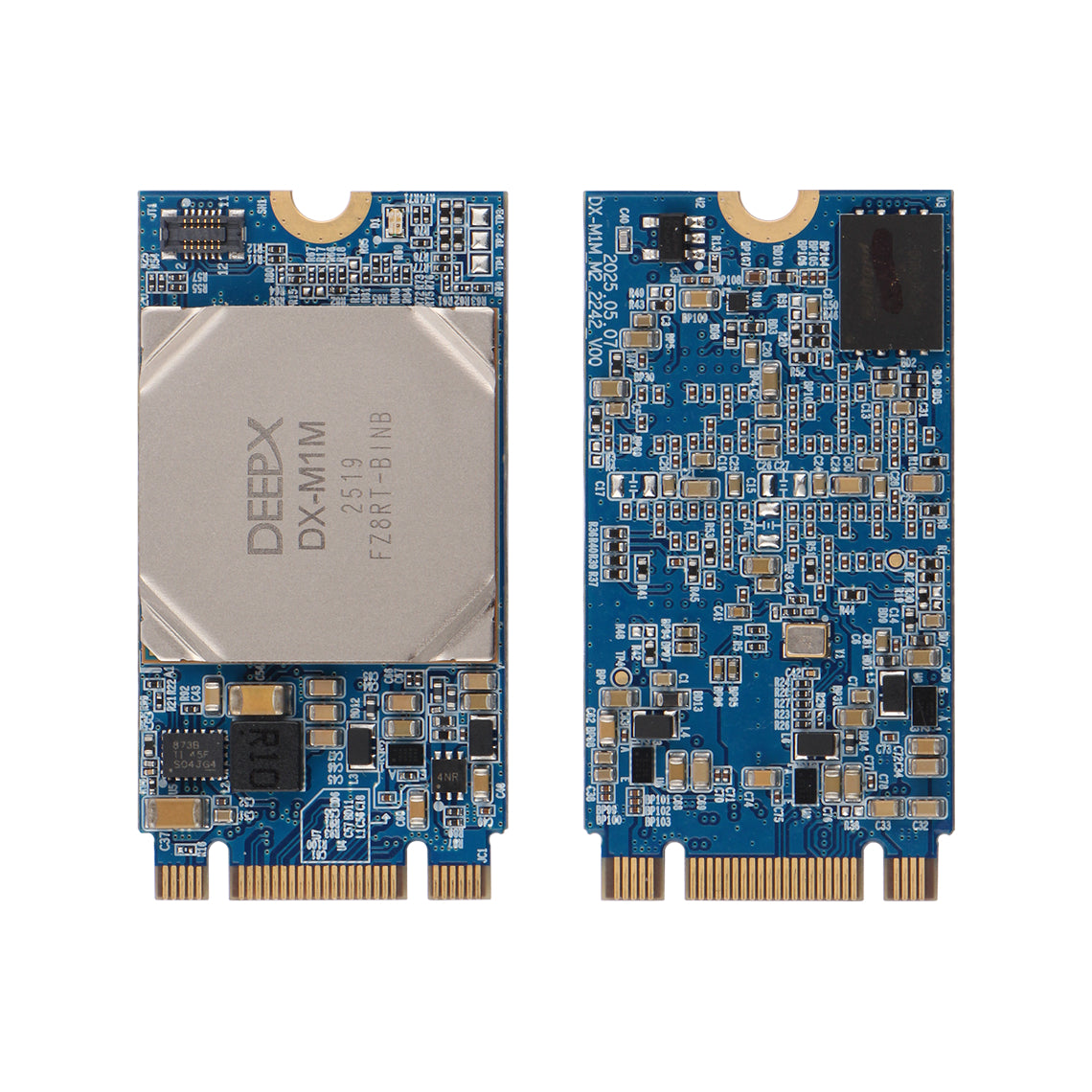

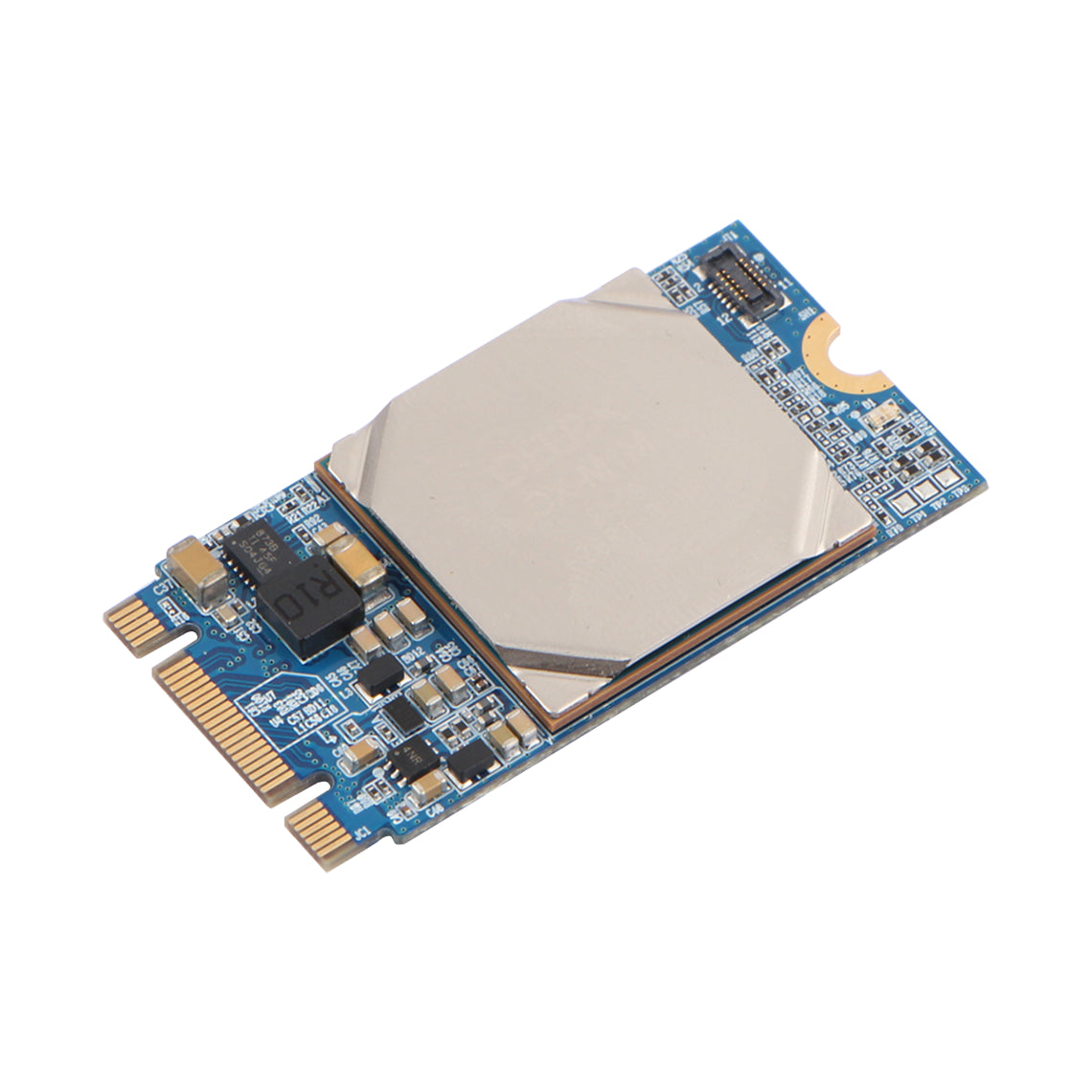

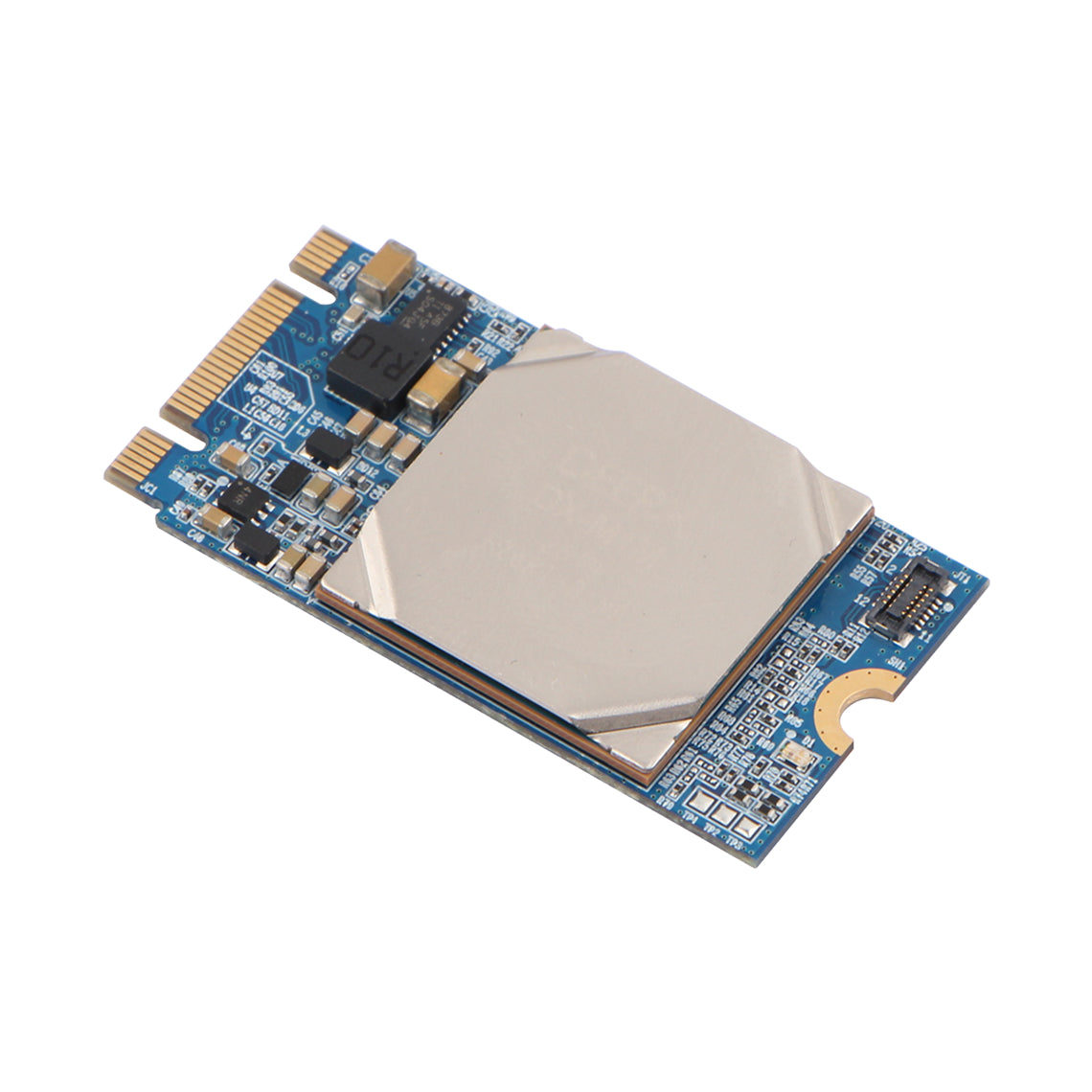

Radxa AICore DX‑M1M is a high‑performance M.2 acceleration module powered by the DEEPX DX‑M1M, designed for fast and efficient on‑device inference in embedded and industrial systems.

This AI processor delivers a stunning 25 TOPS (INT8) while maintaining ultra‑low power
consumption at just 3W, enabling high performance within a highly efficient power budget.

RADXA AICore DX-M1M product details

DeepX DX-M1M

Dual‑core Cortex‑A76 up to 2.0GHz + Hexa‑core Cortex‑A55 up to 1.8GHz

– Video Decode H.265 / VP9 /AVS2 (up to 8Kp24)

– Video Encode H.264 / H.256 (up to 4Kp30)

AI Performance

25 TOPS

Memory

1GB LPDDR4X@4266 MT/s

Storage

QSPI 1Gbit NAND / NOR Flash

Host Interface

PCIe Gen3 x4 (Supports Gen 1/2/3 & x1/x2)

Software

・ Support Windows 10 / 11
・ Ubuntu 24.04 / 22.04 / 20.04 LTS
・ Docker

AI Frameworks

・ Support TensorFlow
・ ONNX
・ Keras
・ PyTorch by DX‑COM compiler converted

Operating Temperature

‑25 ~ 65°C (Non‑Throttling) / ‑25 ~ 85°C (Throttling)

Host Platform

x86 / ARM

Power Consumption

3W (Typical)

Form Factor

M.2 M + B Key, 22mm x 42mm

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

Available until at least December 2030
