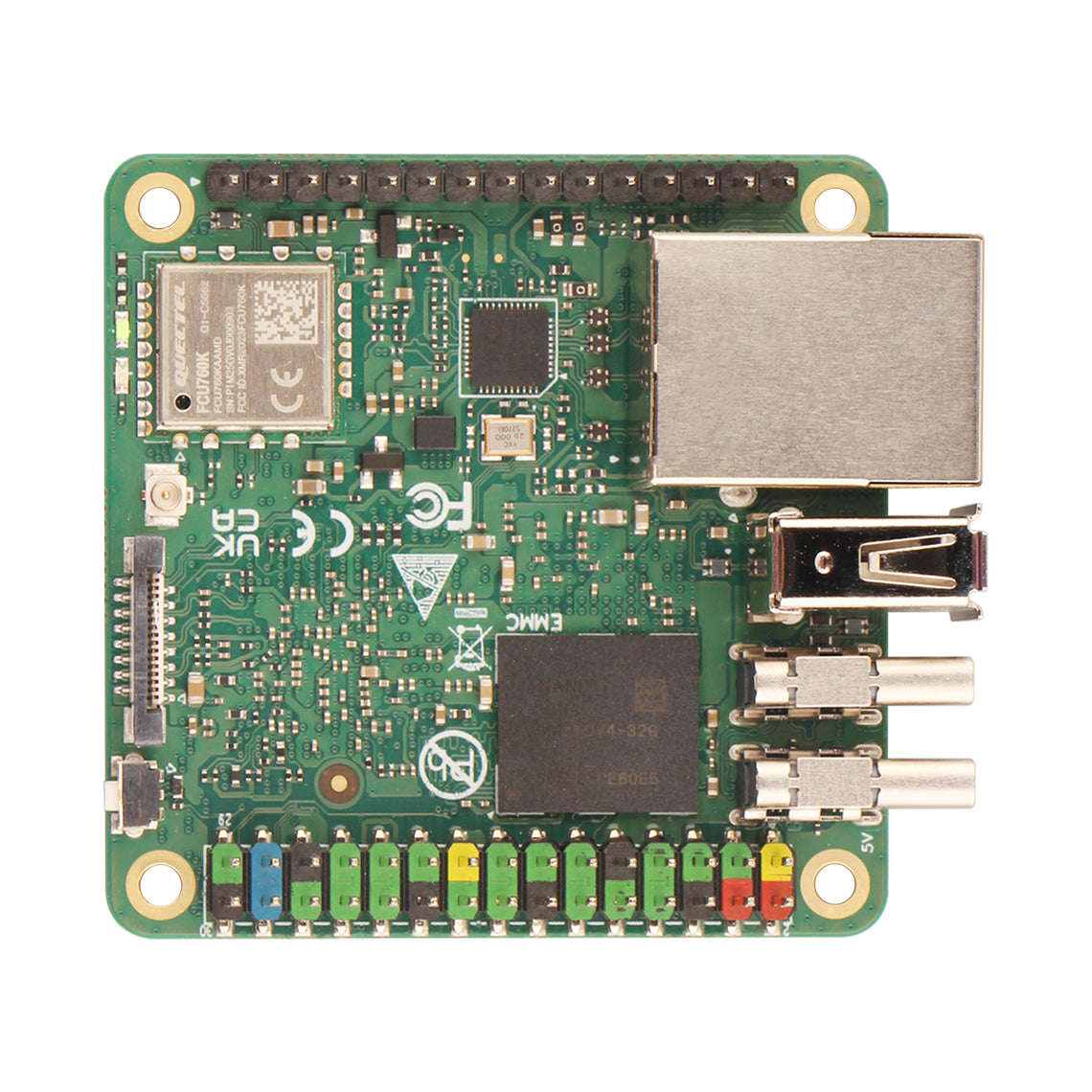

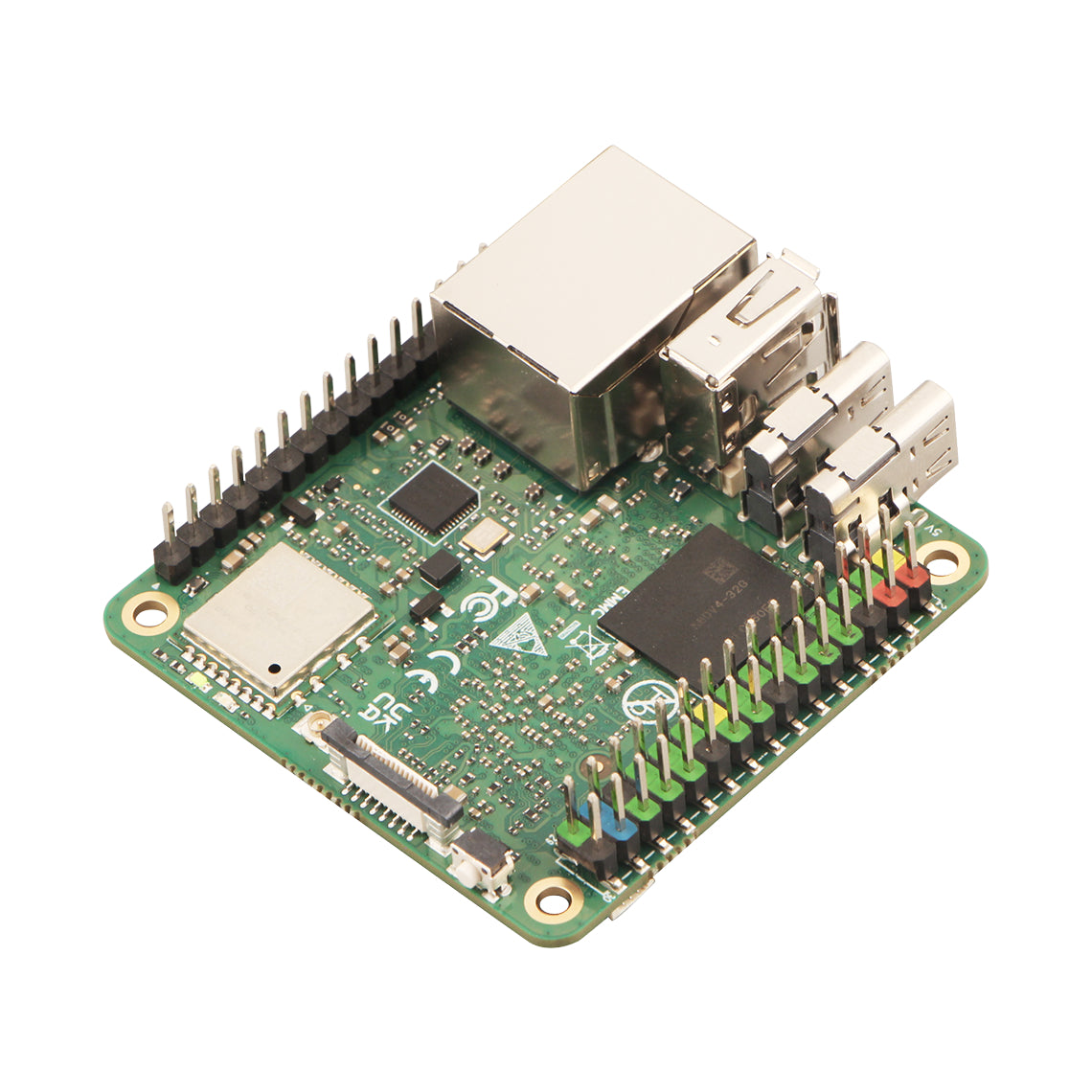

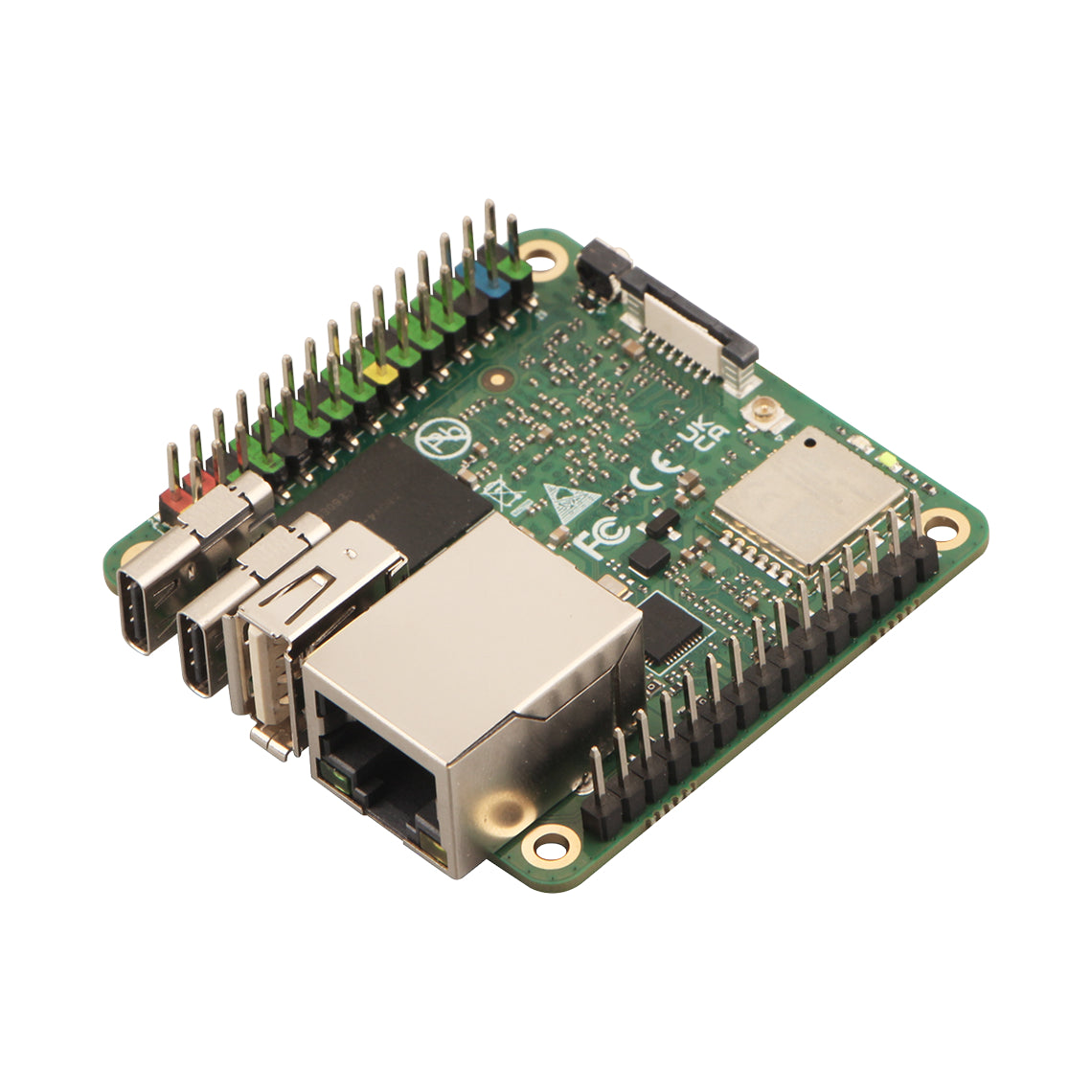

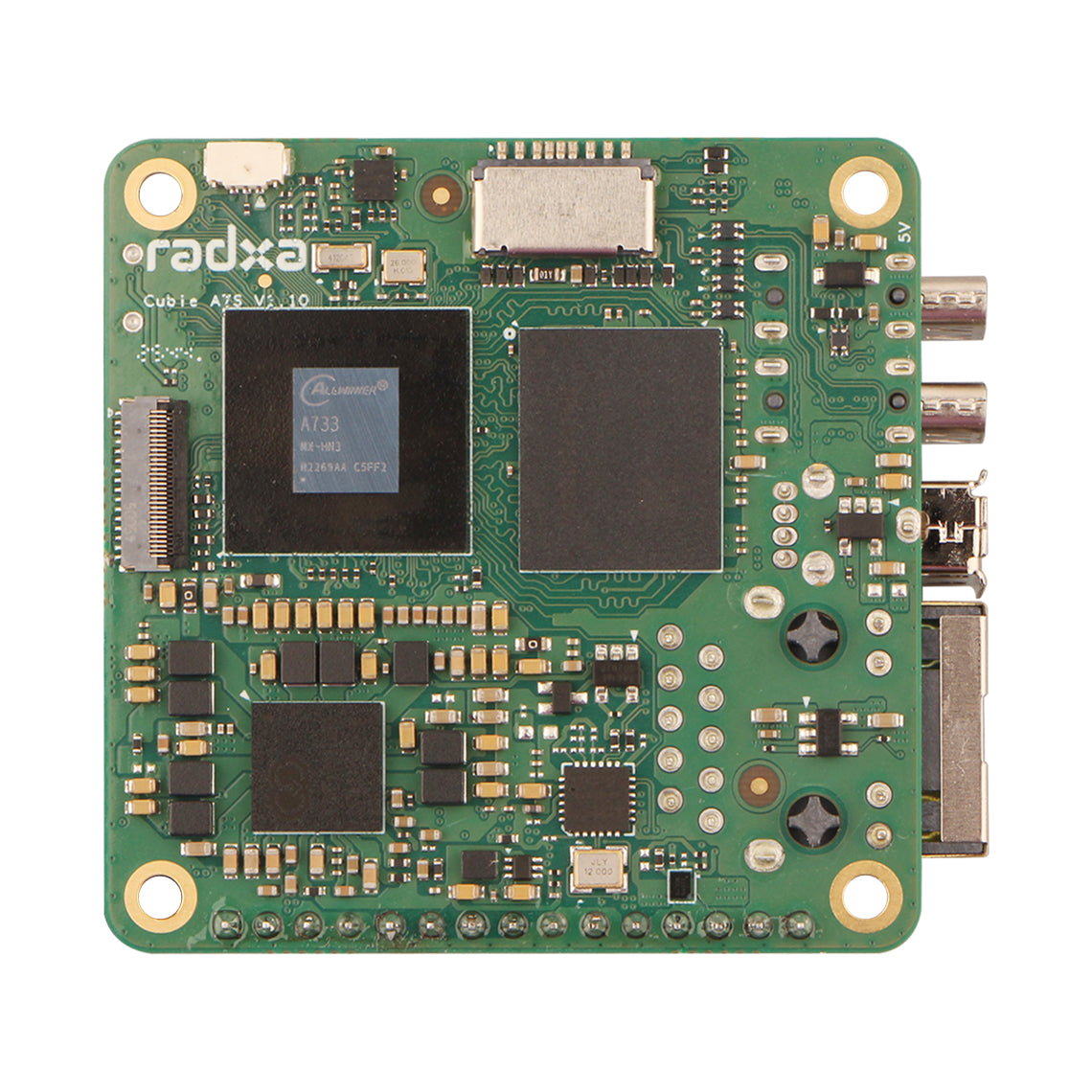

RADXA Cubie A7S

Allwinner A733 SoC based SBC for AI and Multimedia applications

Radxa Cubie A7S is a compact single‑board computer based on the Allwinner A733 SoC,
combining an integrated GPU and up to 3 TOPS NPU for AI and multimedia applications. It supports up to 16GB LPDDR5 and optional onboard eMMC storage, with Gigabit Ether‑
net and Wi‑Fi 6 / Bluetooth 5.4 connectivity

RADXA Cubie A7S product details

Allwinner A733

Dual‑core Cortex‑A76 up to 2.0GHz + Hexa‑core Cortex‑A55 up to 1.8GHz

– Video Decode H.265 / VP9 /AVS2 (up to 8Kp24)

– Video Encode H.264 / H.256 (up to 4Kp30)

GPU

Imagination BXM‑4‑64 MC1 (supports OpenGL ES 3.2, OpenCL 3.0, Vulkan 1.3)

NPU

Imagination BXM‑4‑64 MC1 (supports OpenGL ES 3.2, OpenCL 3.0, Vulkan 1.3)

Memory LPDDR5

LPDDR5x RAM up 16GB

Storage

・ 1x optional onboard eMMC with up to 256GB
・ 1x Micro SD Card Slot

Display

4K output via USB Type‑C with DisplayPort Alt Mode

Video decode - H.265 / VP9 / AVS2 (up to 8Kp24)

Video encode - H.264 / H.265 (up to 4Kp30)

Interfaces

・ 1x USB Type‑C™ (USB 2.0, 5V Power & OTG)
・ 1x MicroSD Card Slot
・ 1x USB Type‑C (USB 3.2, DisplayPort Alt Mode & OTG)
・ 1x USB Type‑A (USB 2.0, Host)
・ 1x Antenna connector for external antenna
・ 1x Gigabit Ethernet port
・ 1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support
・ 1x eMMC or UFS module connector
・ 1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI)
・ 1x MIPI CSI (4‑lane) for camera
・ 1x FPC Connector (PCIe 3.0 x1)

・ Miscellaneous

– 1x fan connector
– 1x USB BOOT button
– 1x 15‑Pin GPIO Header 1x 30-Pin GPIO Header

Network

LAN

1GbE LAN

WiFi

WiFi 6 and BT 5.4 with External Antenna Connector

Software

・ Debian Linux® support
・ Android™ 13 support
・ Hardware access/control library for Linux/Android

Others

Power: 5V / 1A power adapter via USB Type‑C power port
 alt: 5V power supplied through GPIO pins 2 & 4

Size 50.8mm x 50.8mm

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

Available until at least December 2030
