RADXA E24C

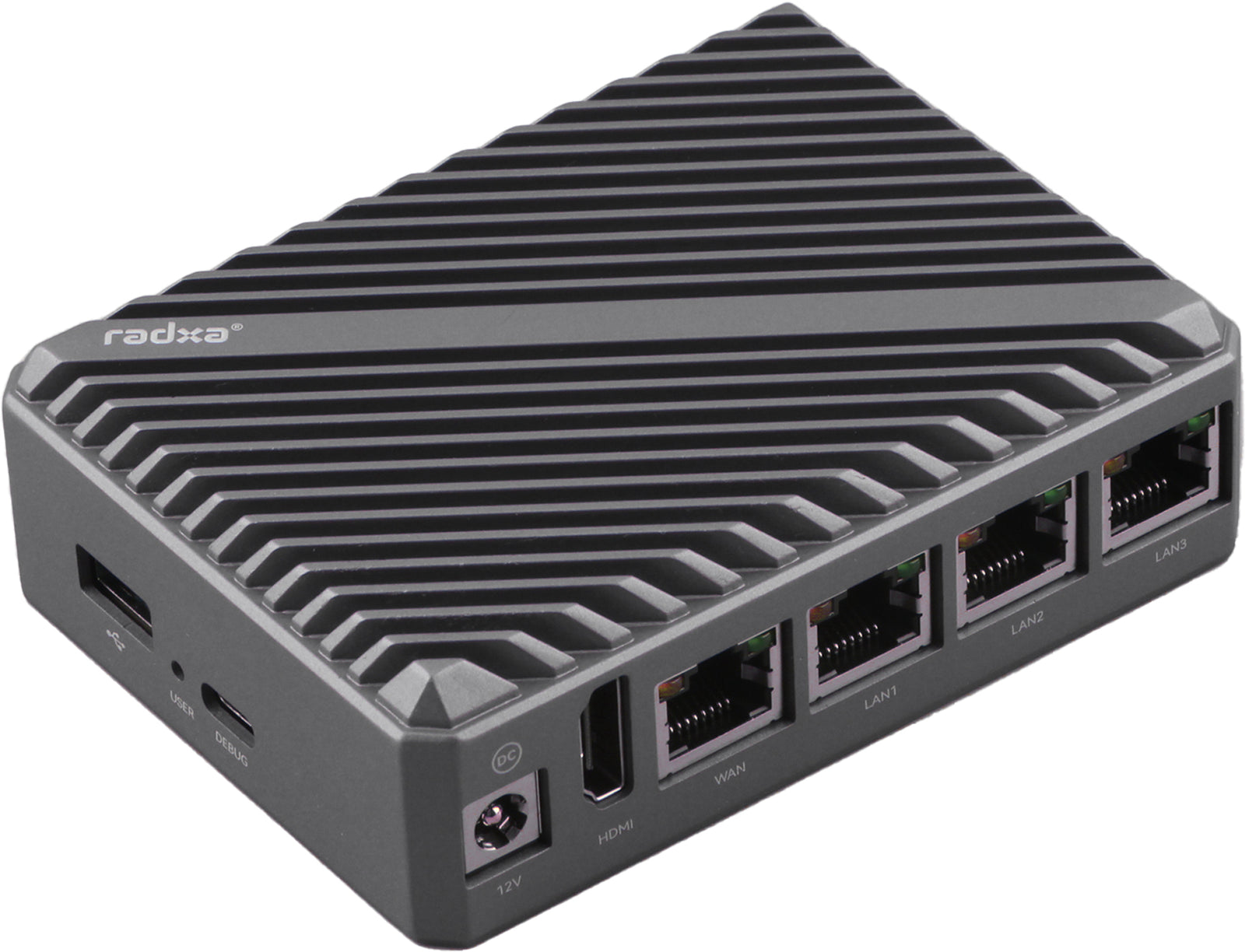

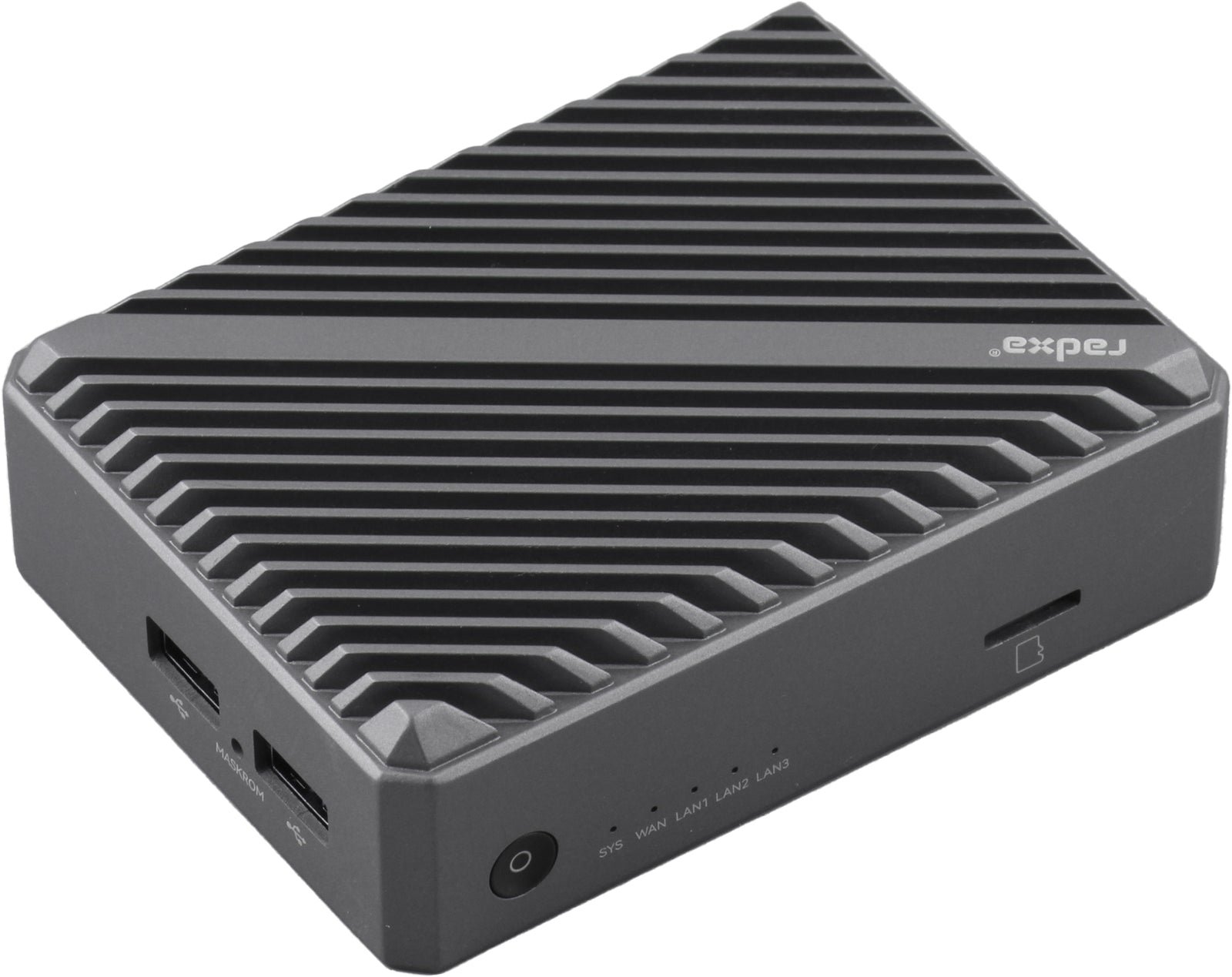

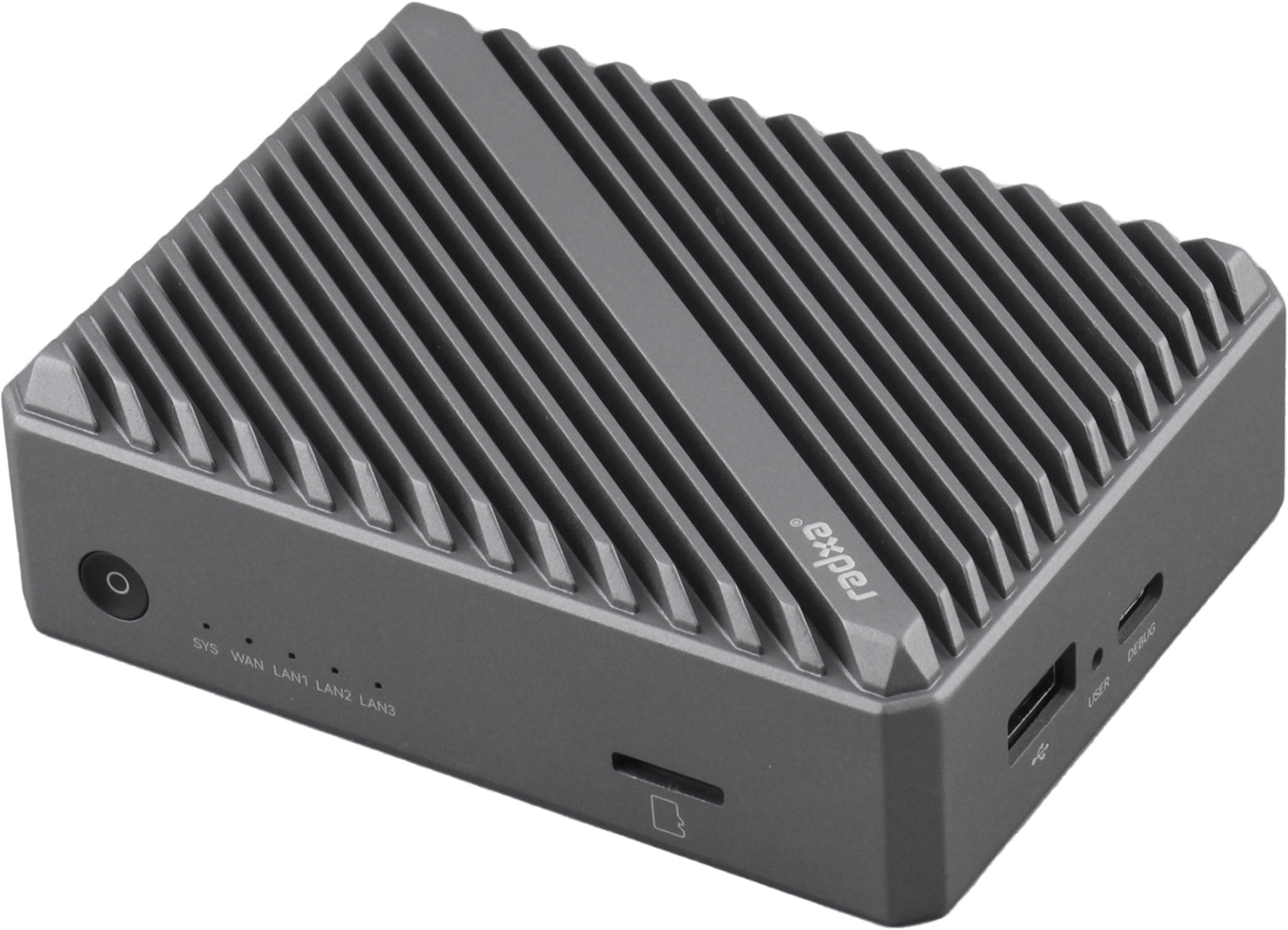

RADXA E24C - a network computer with 4K and 4 Gigabit Ports

The Radxa E24C is a compact, high performance network computer powered by the Rockchip RK3528A SoC. It was specifically designed for routing, edge networking and industrial applications.

Hardware overview:

• Rockchip RK3528A SOC with Quad core ARM Cortex-A53
• NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 5TOP@INT8

• 1GB/ 2GB/ 4GB LPDDR4 RAM
• onboard eMMC with 8GB/ 16GB or 32GB

• onboard SPI Flash (optional)
• Aluminum Alloy Case for Efficient Heat Dissipation


Interfaces:

• 4x Gigabit Ethernet Ports
• 1x HDMI 2.1 supporting up to 4K
• 1x M.2 M Key Connector with PCIe 2.1 1‑lane for M.2 NVMe SSD

• 1x microSD Card slot
• 1x USB3.0 OTG Type‑C Port for Data and Debug
• 3x USB 2.0 HOST Type A ports
• 1x 2‑Pin 1.25mm Fan Header
• 1x 2‑Pin 1.25mm RTC Battery Connector
• 1x 12V DC Jack 5525
• 1x maskrom button
• 1x Power button
• 1x User Button
• 5x LED Status Indicator Lights (4x Network/ 1x Power)
• 14‑Pin 0.1” (2.54mm) header supporting a wide range of interface options:
  • 1x SPI
  • 1x UART
  • 1x I2C
  • 1x 5V Power Out
  • 1x 3.3V Power Out

Software:

• ARMv8 Instruction Set
• Debian Linux support
• OpenWrt support
• Hardware access/control library for Linux

Power options and demands:

• via DC Jack 5525 with 12V (12V/2A under full load / all peripherals connected)

Peripherals:

• M.2 M Key connector with PCIe Gen2 1-lane interface for M.2 2280 NVMe SSD´s
• USB - 3x USB 2.0 HOST Type‑A Port and 1x USB 2.0 OTG Type‑C for UART Debug and Data

• 4 x Gigabit Ethernet ports which can be configured as WAN/LAN, redundant or alternatively configured for load balancing, network segmentation or redundancy e.g. via OpenWrt

This versatile networking architecture makes the E24C ideal for demanding use cases such
as IoT gateways, media streaming, and file transfers. It offers network redundancy and load balancing for enhanced reliability.

Availability until at least 9/2034
