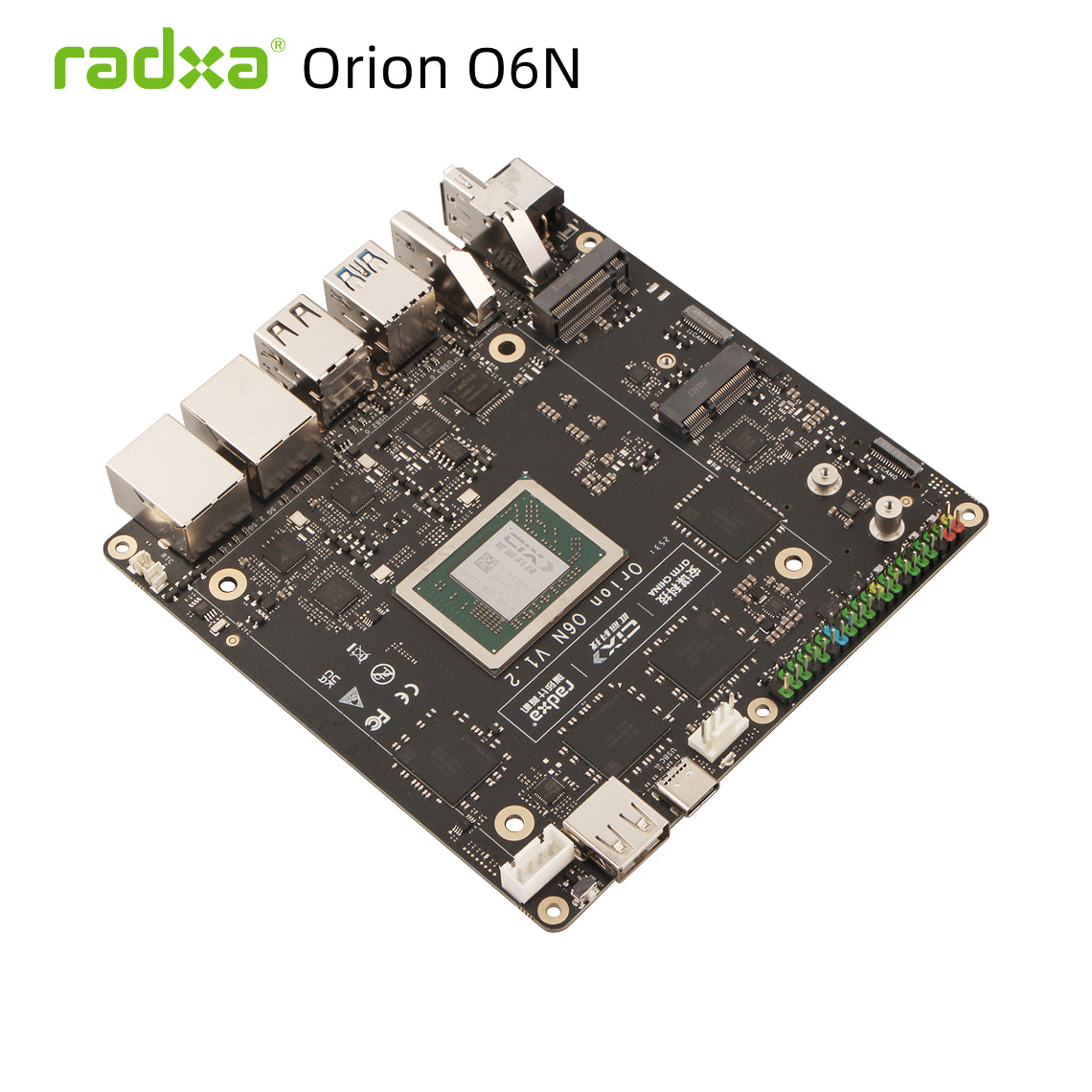

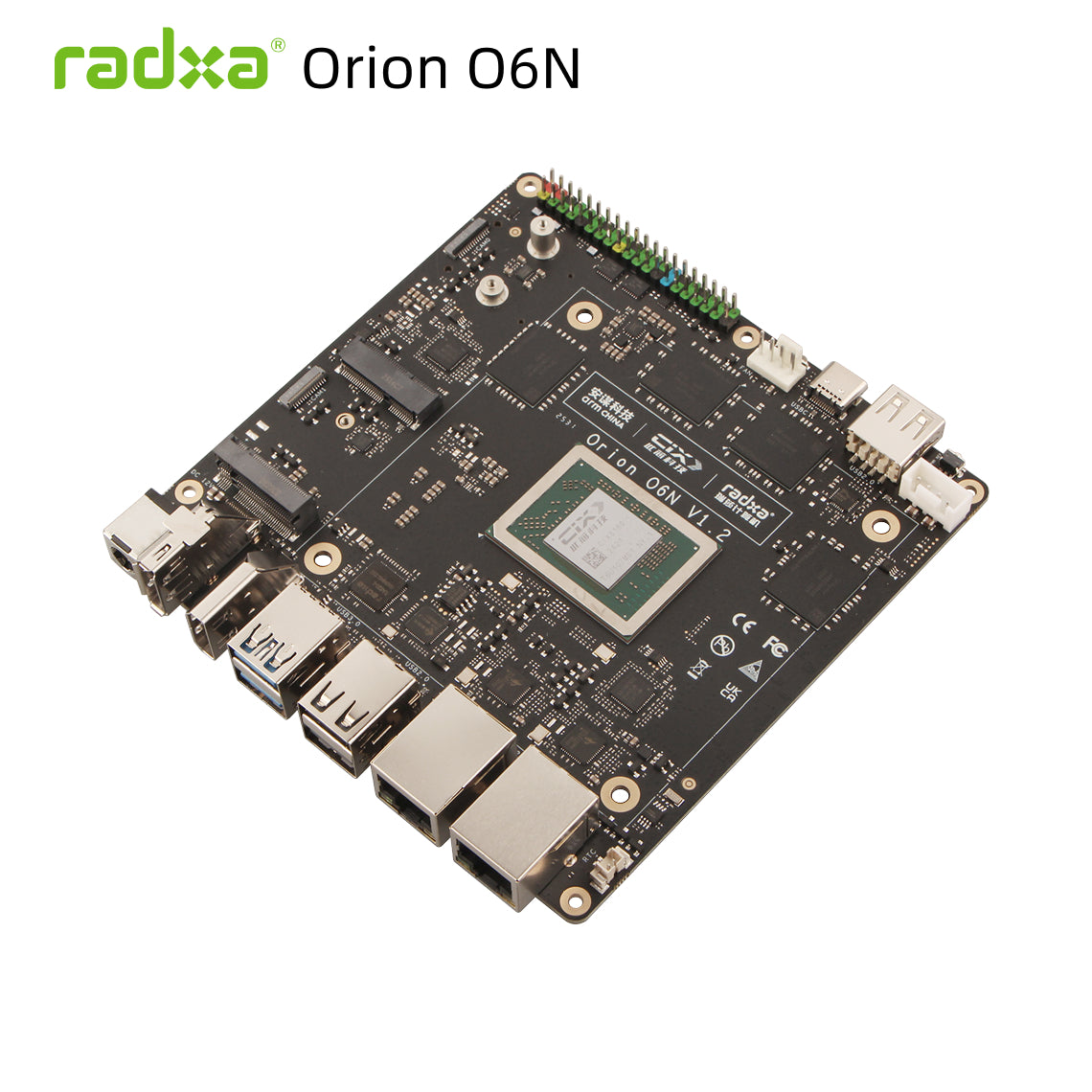

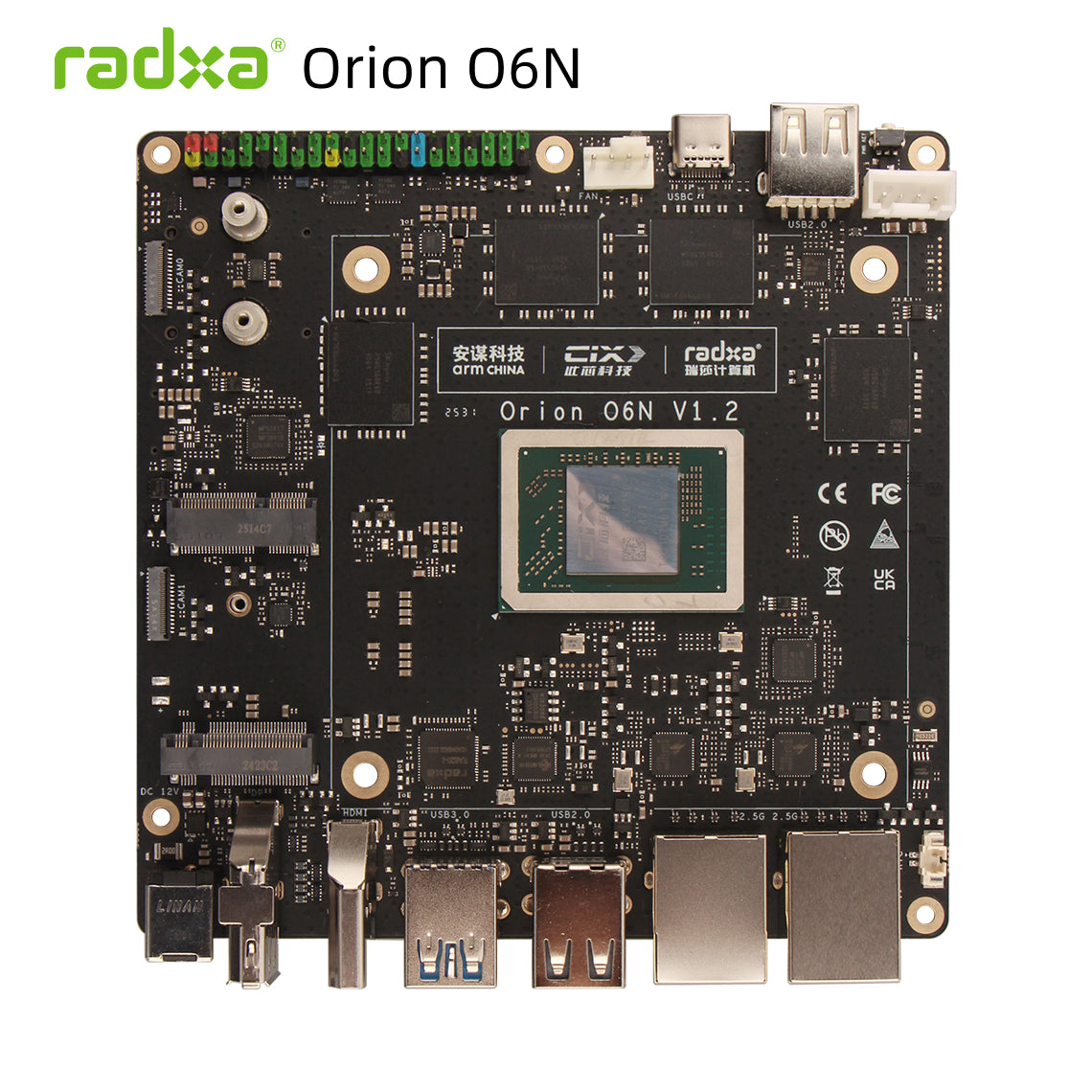

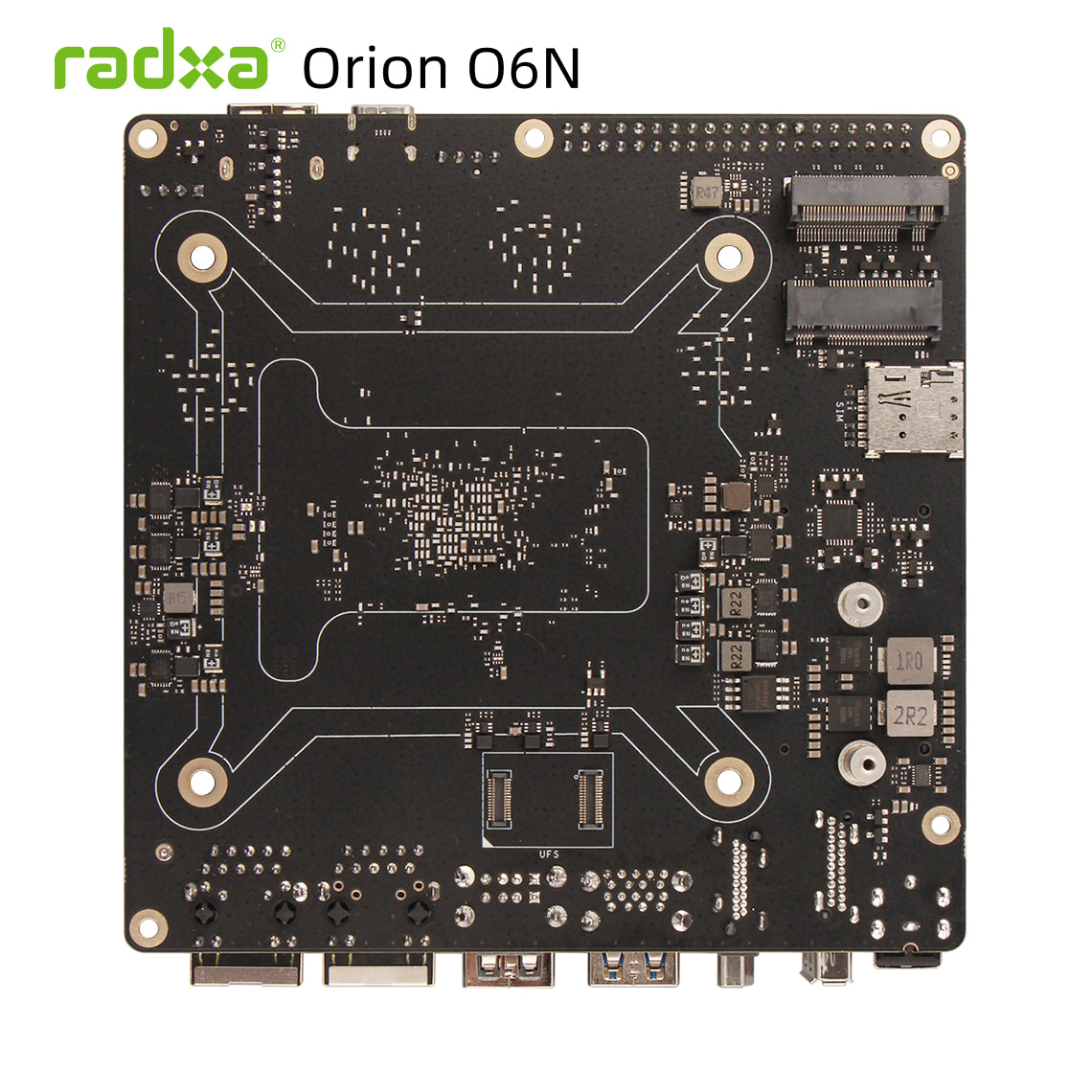

RADXA Orion O6N

RADXA's Orion O6N is an ARM AI Motherboard with Nano ITX formfactor

RADXA´s Orion O6N is a professional-grade Nano ITX motherboard designed for AI computing and multimedia applications. It is powered by the Cix P1 SoC and features up to 64GB LPDDR5 RAM.

The Orion O6N is ideal for AI development workstations, edge computing nodes or e.g. high performance personal computing.

RADXA Orion O6N product details*

SoC: Cix P1

4x Cortex®‑A720 (Big cores) up to 2.6GHz

4x Cortex®‑A720 (Medium cores) up to 2.4GHz

4x Cortex®‑A520 (LITTLE cores) 1.8GHz

12MB shared L3 cache

GPU

Arm® Immortalis™ G720 MC10

Hardware Ray‑Tracing enabled

Graphic API´s:

• Vulkan® 1.3
• OpenGL® ES 3.2
• OpenCL® 3.0


AI

up to 45 TOPs combined (NPU + CPU + GPU)

NPU Standalone

Precision Support: INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration

Memory LPDDR5

• 128-bit memory bus
• Optional 5000MT/s or 6000MT/s transfer speed


LPDDR5 with 8, 16, 32, 48 or 64GB

Storage

1x UFS Module Connector for Radxa UFS Module as OS storage

2x M.2 M key connector for PCIe 4.0 x4 lanes for M.2 NVMe SSD

Display Outputs (up to 4 concurrent display outputs)

1x HDMI 2.0 up to 4k@60FPS (without HDMI CEC support)

1x DP 1.4 with MST (Mulit-Stream Transfer) support up to 4k@120FPS

1x USB-C with DisplayPort Alt Mode, supporting displays up to 4Kp60

Video Input

2x MIPI Camera interface

each can be configured as 4-lane or 2-lane MIPI CSI

USB

2x USB 3.2 HOST Type-A Ports (10Gbps)

1x USB Type-C Port with DP Alt Mode (4K@60Hz)

3x USB 2.0 HOST Type-A

2x USB 2.0 Type-A

Network

Wireless / Bluetooth

1x M.2 E Key Connector for WiFi 6

1x M.2 B Key Connector for Mobile Network

LAN

2x 2.5GbE RJ45 ports

Other:

- 1x PWM / TACH fan connector
- 1x RTC Socket (CR1220 battery)
- 1x Front Panel header for Power Button / Reset Button / Status LED

Power

DC 12V 5525 Power connector

1x 5V/12V 4P Floppy Power in Connector

1x 4 Pin CPU fan header with smart PWM Control and TACH

Dimensions: 120mm x 120mm

Recommended operating temperature: 0 ~ 50°C

Software Support

Debian Linux distributions
- Android
- OpenHarmony
- Deepin Linux
- Fedora Linux
- Full UEFI support via EDKII
- BSP and SDK available

Essentials You Need

• Radxa Orion O6N
• 36W (12V/3A or larger) DC Power supply
• Keyboard & Mouse
• Monitor with HDMI input

Availability

Radxa Orion O6N will be available until at least September 2029

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

*certain technical specs can be subject to change without notice
