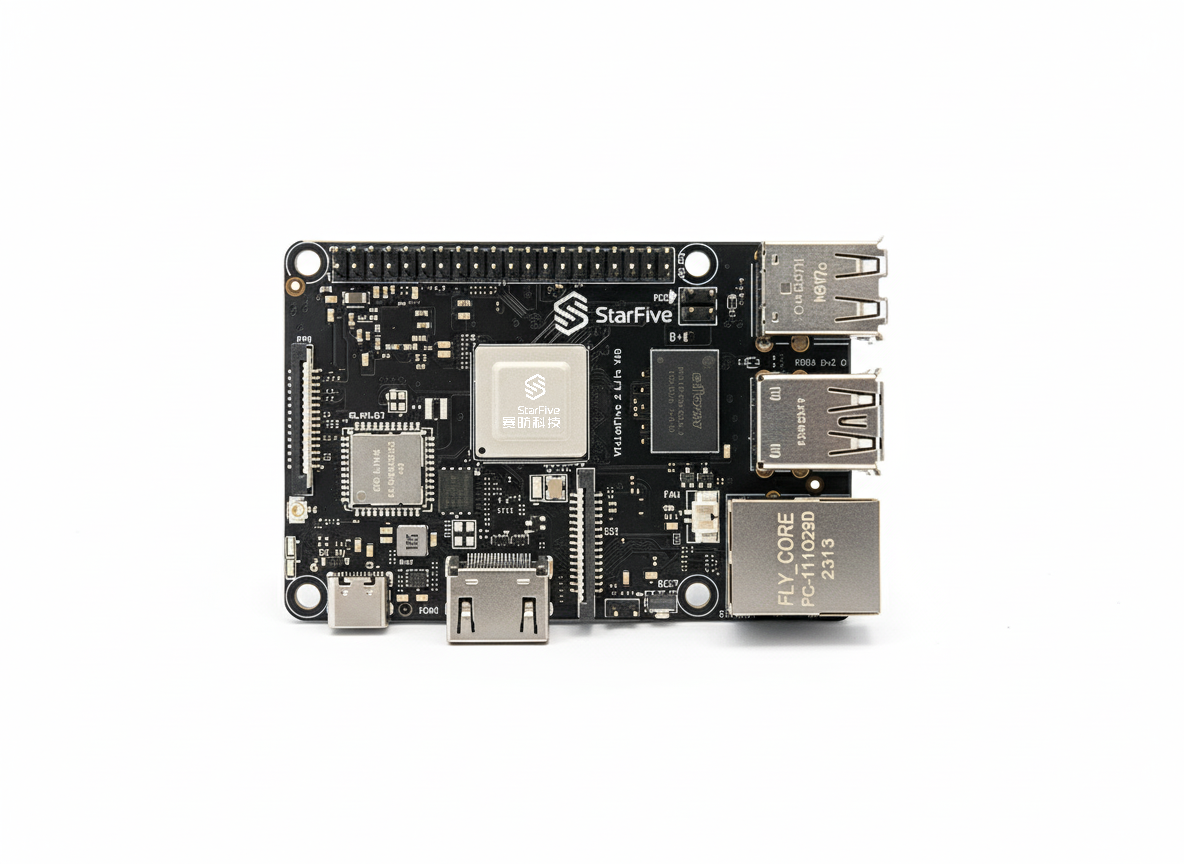

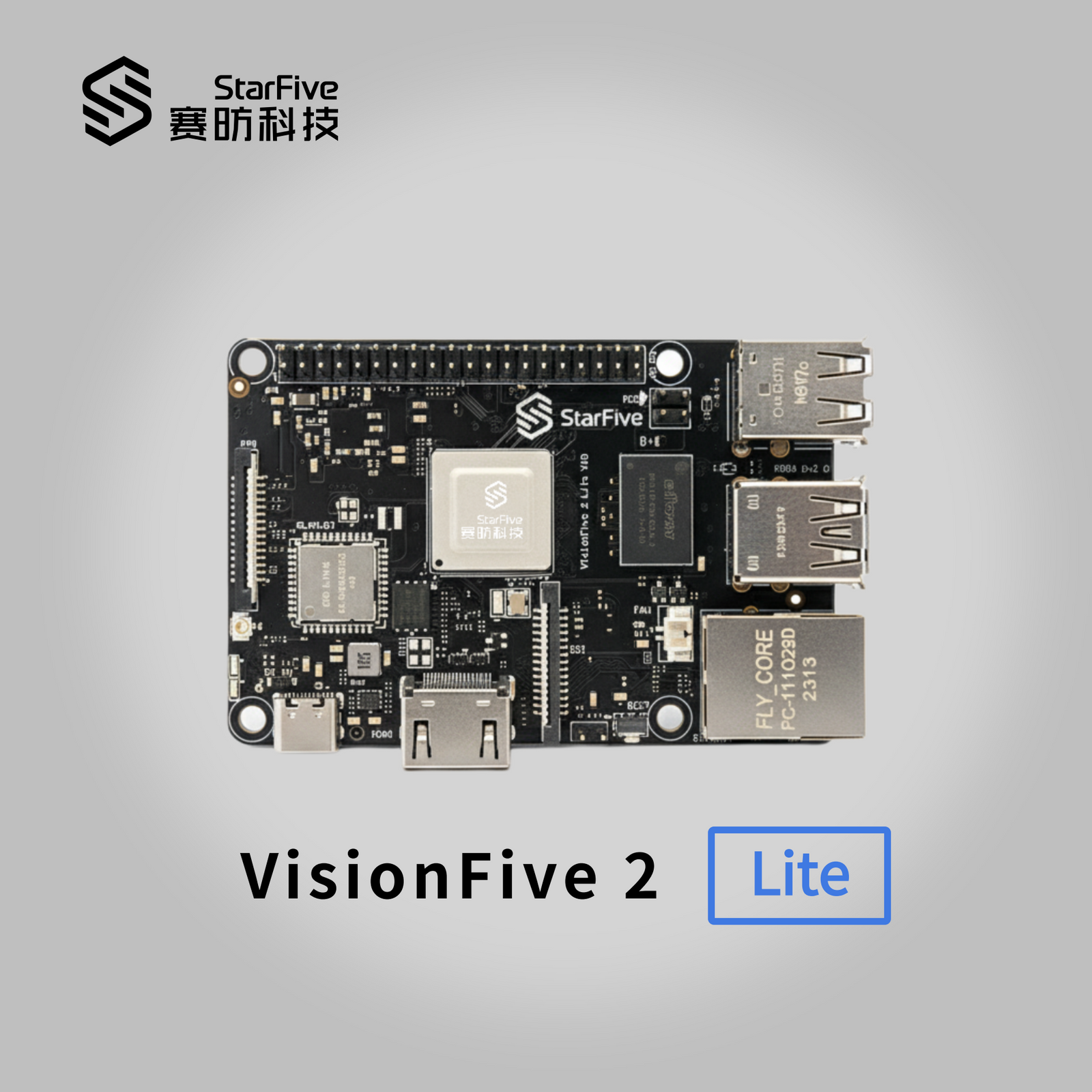

StarFive VisionFive 2 Lite quad core RISC-V single board computer

High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU

StarFive´s VisionFive 2 Lite is a budget-friendly and feature-rich RISC-V SBC tailored for education, AIoT, smart home and IIoT applications.

This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.25GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC option and more.

Technical Details:

Processor

• StarFive JH7110S with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.25GHz
• IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)

 Memory

• 2GB, 4GB, 8GB LPDDR4 (up to 2800Mbps)

Storage

• Onboard TF card slot
• SPI Flash
• eMMC 64GB (only VF2 Lite-8GB/WIFI/64GB eMMC)
• M.2 NVMe 2242 SSD slot

Wireless Connectivity

• WiFi6 / BT5.4

Video Output

• 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
• 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps
• Dual output: 1 HDMI + 1 MIPI DSI

Camera

• 1x 2-lane MIPI CSI camera port

Encoder/Decoder

• Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
• Video Encoder supports up to 1080p@30fps
• JPEG encoder/decoder

Peripherals

• 1 x USB 3.0 ports
• 3x USB 2.0 ports
• 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
• 1x RJ45 Ethernet Connector
• M.2 Connector
• 2 pin fan header
• Micro-SD card slot for system boot and data storage
• Recovery button


Power Supply

• Power 5V DC >3A
• or via 40-pin GPIO header (5V 3A+)

Power Connector

• USB Type-C port

 Dimension

• 85mm x 56 mm

 Compliance

• RoHS, FCC, CE

  Software support: Ubuntu, Debian, OpenHarmony

Connect to the StarFive VisionFive ecosystem here: rvspace.org

- pre order now - shipping expected within the next 2 weeks!
