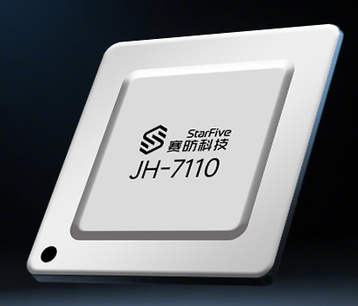

StarFive VisionFive JH-7110 SOC

High-performance quad-core RISC-V SOC with integrated 3D GPU

StarFive´s VisionFive JH-7110 SOC 2 Lite is is the world’s first mass-produced high-performance RISC-V application processor.

It uses a mature 28nm process and comes with a 64-bit high-performance quad-core RISC-V CPU, 2MB of L2 cache and can run at up to 1.5GHz - supporting the Linux operating system. This SOC stands out for its high performance, low power consumption, rich interfaces and strong image/video processing capabilities. It makes it perfectly suitable for applications like open-source hardware, industrial control and consumer electronics.

Technical Details:

Processor

• StarFive JH7110S with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5GHz
• IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)

 Power Consumption

• The chip is divided into 8 independently switchable power domains and allows CPU frequency adjustment through software, supporting work mode settings based on scenarios and needs.
• The chip has a static power consumption of 130mW

Interfaces

• PCIe 2.0
• eMMC 5.0
• HDMI 2.0, MIPI
• USB 2.0/3.0
• 10M/100M/1000M GMAC
• SDIO 3.0

Image/Video Processing

• integrates Canaan Technology's ISP, compatible with mainstream camera sensors
• built-in image/video processing subsystem supporting H.264/H.265/JPEG encoding and decoding
• Integrated IMGBXE-4-32 GPU, supports OpenCL, OpenGL ES, Vulkan. The JH-7110 can handle a range of complex image/video processing and intelligent visual computing tasks, and also meets various edge processing needs.

 Compliance

• RoHS, FCC, CE

Detailed Datasheet: StarFive JH-7110 Product Brief
