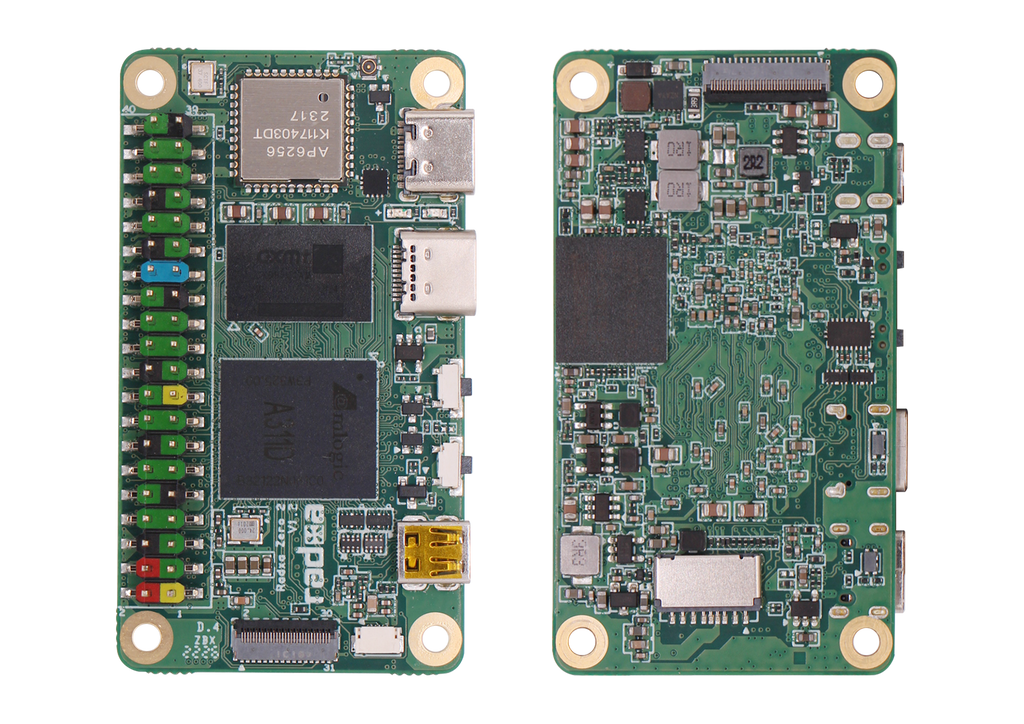

RADXA Zero 2 Pro

Price
$65
Taxes and shipping calculated at checkout
Variant: 4GB - 16GB eMMC

RADXA Zero 2 Pro

SKU
Variant
Price
RADXA Zero 2 Pro
RS105-D4EH1W1 4GB - no eMMC
Price
$55
Sold out
RADXA Zero 2 Pro
RS105-D4E16H1W1 4GB - 16GB eMMC
Price
$65
RADXA Zero 2 Pro
RS105-D4E32H1W1 4GB - 32GB eMMC
Price
$75
Sold out
RADXA Zero 2 Pro
RS105-D4E64H1W1 4GB - 64GB eMMC
Price
$85
Sold out
Compare product options
SKU: RS105-D4E16H1W1
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Union Pay
Visa

Product information

Amlogic  A311D 64bit hexa core based Mini SBC

Hexacore power with 4GB LPDDR4 RAM and high performance onboard storage



RADXA Zero 2 Pro product details

Amlogic A311D 64bit quad core processor

Amlogic A311D with Quad core Cortex‑A73 (Arm® v8) 64‑bit SoC @ 2.2GHz and Dual core Cortex‑A53 (Arm® v8) 64‑bit SoC @ 1.8GH

GPU

Arm® G52 MP4 GPU, supporting OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0

Memory LPDDR4

4GB 64bit dual channel LPDDR4@3200Mb/s

Wifi/BT Antenna

Wifi5 / BT5 with external antenna support

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 32GB/ 64GB/ 128GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

HDMI 2.0, 4K@p60 (CEC)

Peripherie

H.265/VP9 (HEVC) hardware decode (up to 4Kp60)

H.264 hardware decode (up to 4Kp60)

USB 3.0 Type-C HOST x1

USB 3.0 HOST (downstream current limit app. 1A)

dedicated USB3.0 channel

USB 2.0 Type-C OTG x1

USB 2.0 OTG

MIPI Interfaces

MIPI CSI

MIPI DSI

Network

Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0

GPIO 40-pin expansion header:

- 3 x UART
- 2 x SPI bus
- 2 x I2C bus
- 3 x PWM
- 2 x ADC
- up to 22 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian / Ubuntu Linux support
- Android 9 support
Hardware access/control library for Linux/Android

Others

2 button

Temp range: 0°C to 50°C

Size 65mm x 36mm



Essentials You Need

  • RADXA ZERO 2 Pro
  • Power adapter with USB type C port equal or larger than 15W (5V3A) (alt. 5V via GPIO PIN 2 & 4)
  • MicroSD Card or onboard eMMC module
  • Keyboard & Mouse
  • Monitor with HDMI input
