QuinLED Dig Uno v3 DIGITAL LED controller

Extremely cool, flexible and easy to use Digital LED controller!

Perfectly integrates into your home automation or easy to use as a stand alone solution! Now even better - with generic WLED support and Dual Channel!

$29.50

Extremely cool, flexible and easy to use Digital LED controller!

Perfectly integrates into your home automation or easy to use as a stand alone solution! Now even better - with generic WLED support and Dual Channel!

Technical details:

  • QuinLED ESP32 based programmable LED controller
  • Choice of 3 different ESP32 module variants
    • AB (Antenna Board)
    • AE (Antenna External) (incl. ext. antenna)
    • ABE (Antenna Board + Ethernet)
  • Dual Channel controller (when using WLED 0.12.0)
  • Official WLED support
  • Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
  • Integrates with MQTT or Home Assistant native API (use WLED FW)
  • Remote control available via Android or iOS app (WLED FW)
  • Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
  • Auto 5V-24V input voltage select
  • Auto 5vEXT with 5-24V standby auto select
  • High current handling (up to 15A)
  • On-board fuse and reverse polarity protection
  • Compatible to 5V*, 12V** and 24V LED strips, strings or panels
  • optional On-board temperature sensor (mounted on demand***)
  • 6 GPIO pins (e.g. PS Relay, IR control or I2C display)
  • Works with most currently available LED strips/strings or panels*

* ws2811, ws2812b, sk6812, APA102

**ws2811, ws2815

***pls contact us via shop_cn@allnetchina.cn

Product content:

  • QuinLED Dig Uno v3.1r2 LED controller
  • QuinLED-ESP32 WIFI module with USB-C interface
  • Pre flashed WLED firmware for instant use
  • please check the different product variants available

OUTSTANDING!

  • With a few simple steps to a working system
  • Easy to use and at the same time ready for complex setups
  • Extremely detailed library and resources
  • Very supportive community and developer
  • You have a question to LED and LED related applications - go QuinLED

    Youtube introduction and instructions (click on the text):

    More details and resources here:

    • In depth information on LEDs
    • Wiring diagrams, articles, simply everything related to LEDs
    • https://quinled.info

      Last but not least a great 3D printable case:  https://www.thingiverse.com/thing:4153725

      QuinLED Dig Quad v3 DIGITAL LED controller

      Packed with the feature-set of the well known Dig Uno controller plus 2 times the output channels and a blasting current of up to 30A show the muscles of this controller.

      $39.50

      Packed with the feature-set of the well known Dig Uno controller plus 2 times the output channels and a blasting current of up to 30A show the muscles of this controller.

      The onboard QuinLED ESP32 module with generic WLED support comes in 3 different variants and preloaded software.

      QuinLED Dig Quad perfectly integrates into your home automation or performs as a stand alone solution!

      Technical details:

      • QuinLED ESP32 based programmable LED controller with 4 independent output channels
      • Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
      • Integrates with MQTT or Home Assistant native API (use WLED FW)
      • Remote control available via Android or iOS app (WLED FW)
      • Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
      • High current handling (up to 30A)
      • On-board 5x 5A fuse and reverse polarity protection
      • Compatible to 5V*, 12V**, 24V*** LED strips, strings or panels
      • On-board DS18B20 temperature sensor
      • 6 GPIO pins (e.g. Audio, PS Relay, IR control or I2C display)
      • Works with most currently available LED strips/strings or panels*

      * ws2811, ws2812b, sk6812, APA102

      **ws2811, ws2815

      ***ws2811, sk6812, tm1814

      Product content:

      • QuinLED Dig Quad LED controller board
      • QuinLED ESP32 WIFI module with USB-C interface (3 different variants available)
      • 5x 5A fuses
      • NEW - bigger screw terminals for easier cable management
      • Pre flashed WLED firmware for instant use

      OUTSTANDING!

      • With a few simple steps to a working system
      • Easy to use and at the same time ready for complex setups
      • Extremely detailed library and resources
      • Very supportive community and developer
      • You have a question to LED and LED related applications - go QuinLED

        Youtube introduction and instructions (click on the text):

        More details and resources here:

        • In depth information on LEDs
        • Wiring diagrams, articles, simply everything related to LEDs
        • https://quinled.info
        QuinLED Data Booster
        Translation missing: en.products.product.regular_price $3.99

        The perfect add on for adapting the data signal to your wiring setup!

        Once the data signal cable gets longer than 3m/10ft LEDs can start to flicker or become dysfunctional. QuinLED Data Booster adds features to your setup to get this under control.

        Translation missing: en.products.product.regular_price $3.99

        The perfect add on for adapting the data signal to your wiring setup!

        Once the data signal cable gets longer than 3m/10ft LEDs can start to flicker or become dysfunctional. QuinLED Data Booster adds features to your setup to get this under control.

        QuinLED Data Booster adds the following features to your setup to manage and overcome these  limitations.

        • Supports power in/out of 5v – 48v
          • High current carrying board design
        • Power injection points with M3 bolt
          • Use direct solder to pad/hole
          • Use crimped fork connector
            • M3 nut (on bottom) with M3 screw (on top)
        • Re-broadcast Data Signal
          • Onboard level-shifter to take in signal and send it out again
          • “Cleans up” data signals
            • Basically able to discern better between a 1 and 0 then a pixel and send it out strong again
        • Data Signal cable conditioner
          • Switch selectable 33Ω and 249Ω resistor output

        Product content:

        QuinLED Data Booster board
        Crimp fork connectors
        Screws



        For more details please refer to:

         QuinLED-Data-Booster

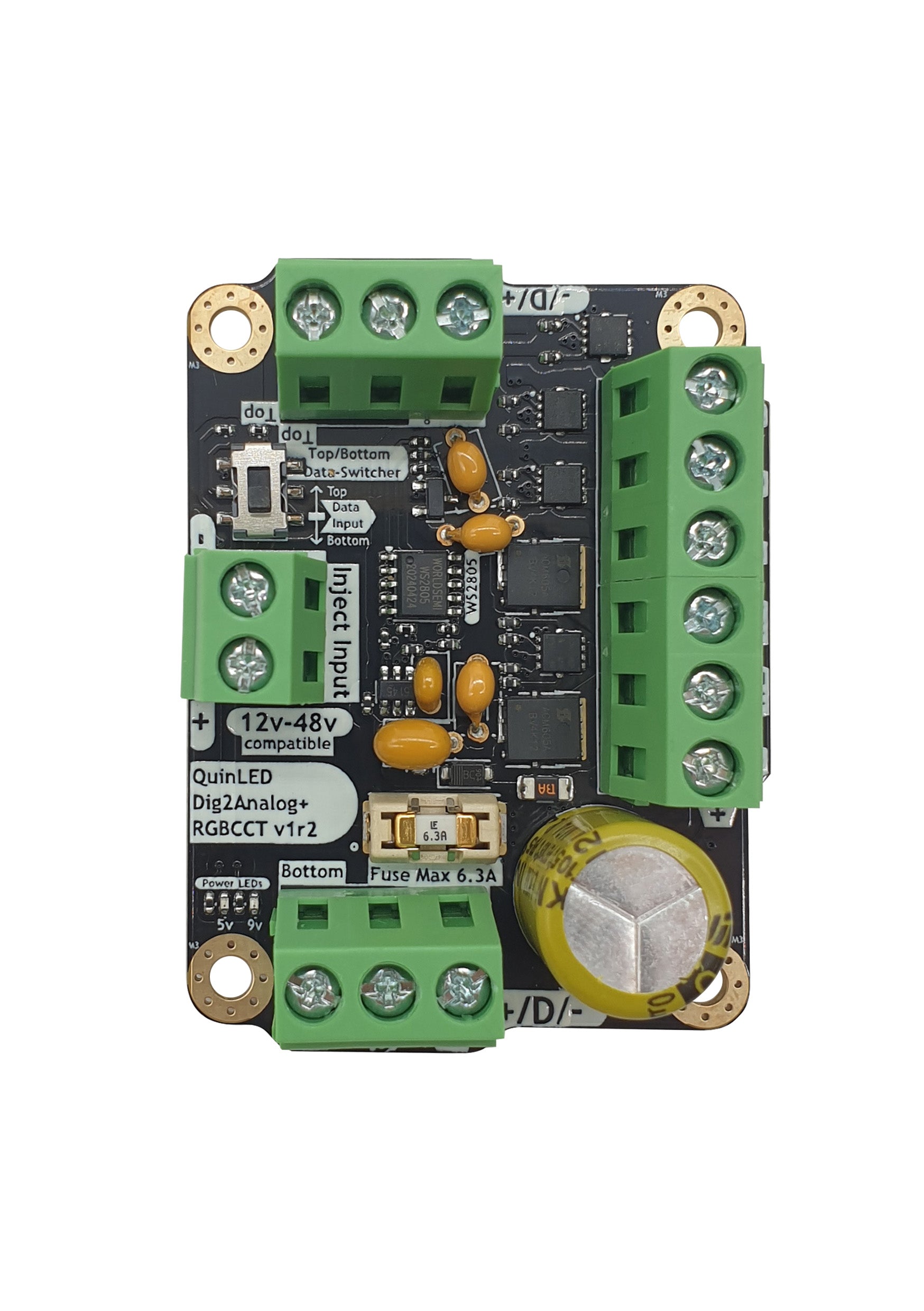

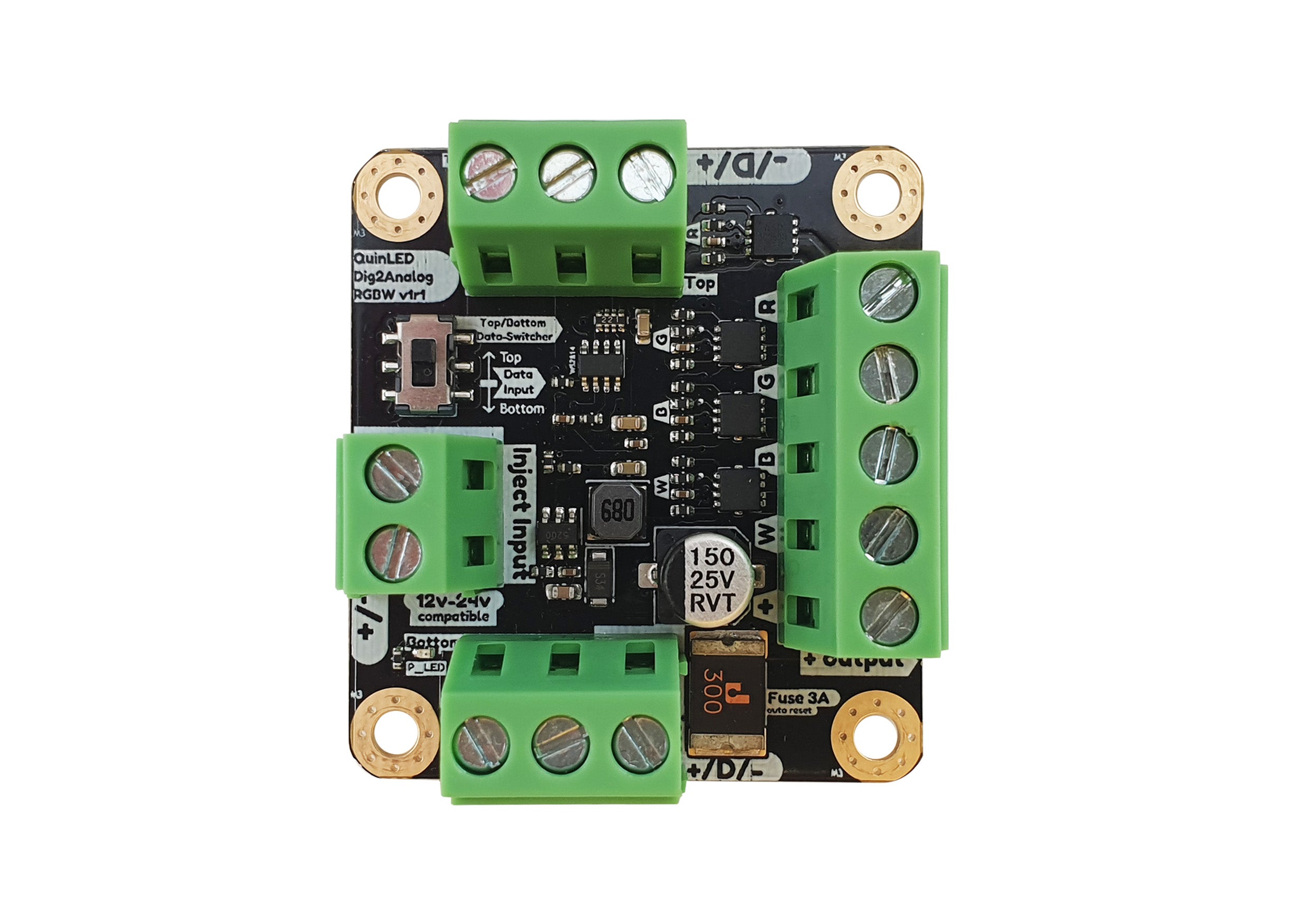

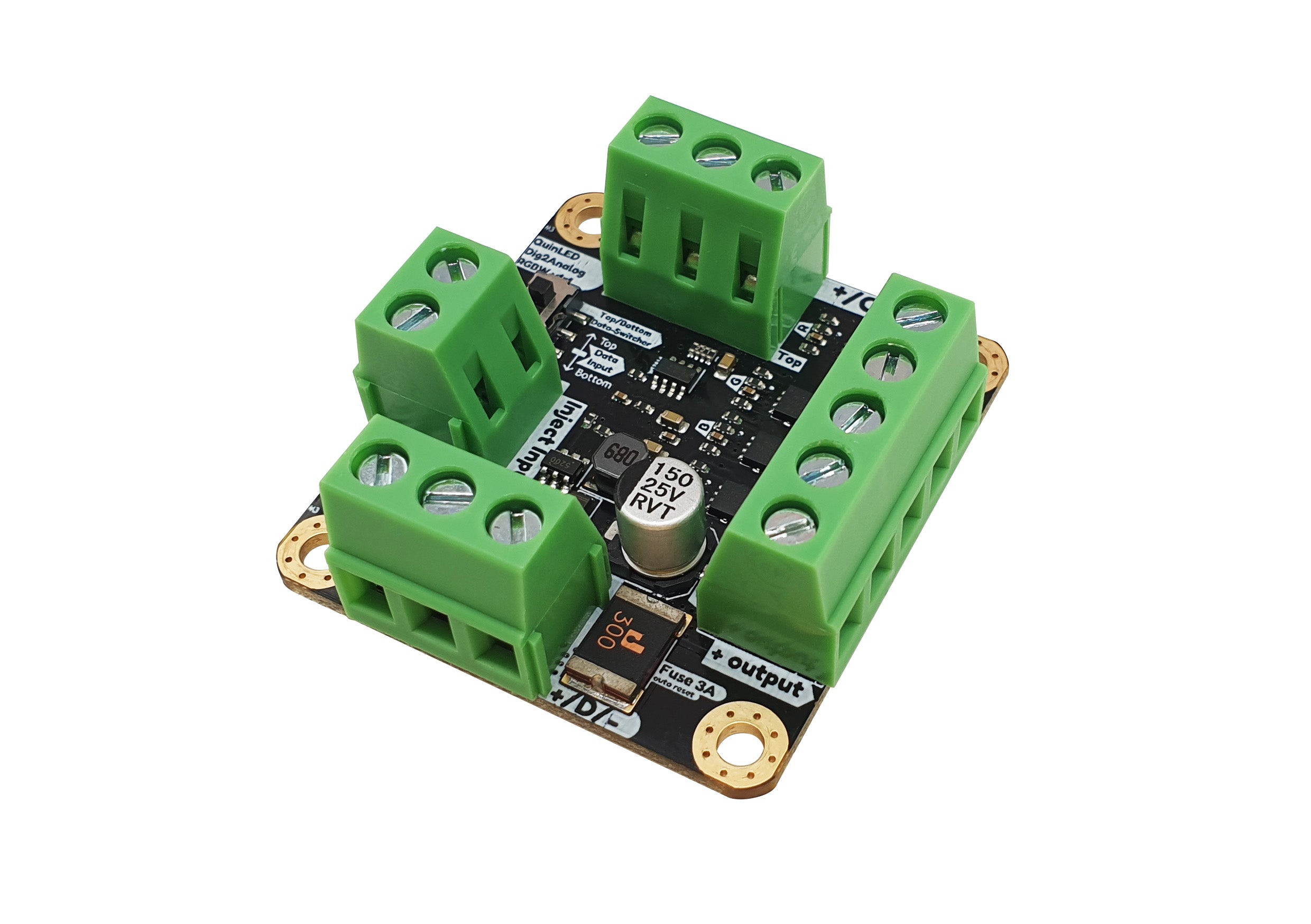

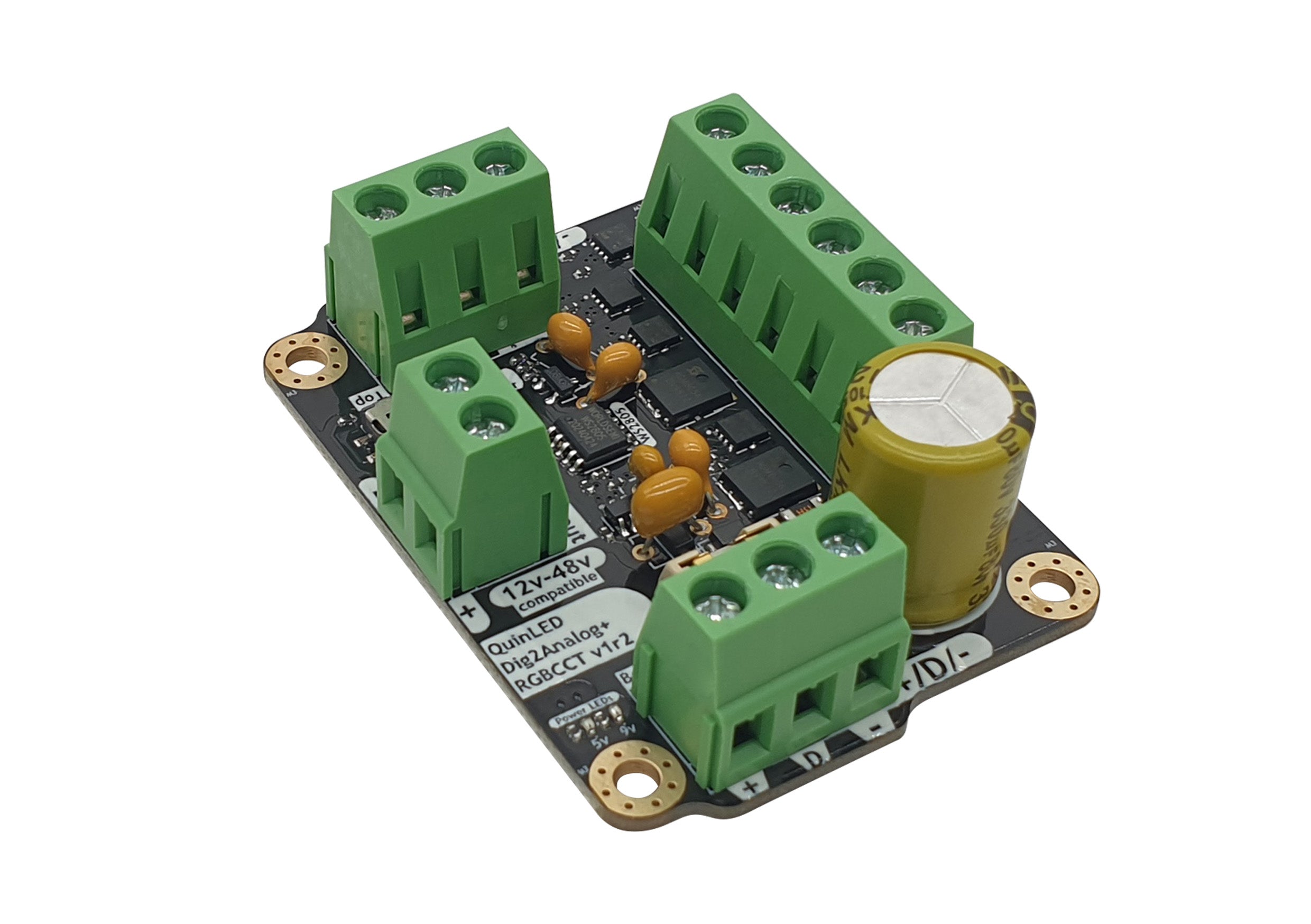

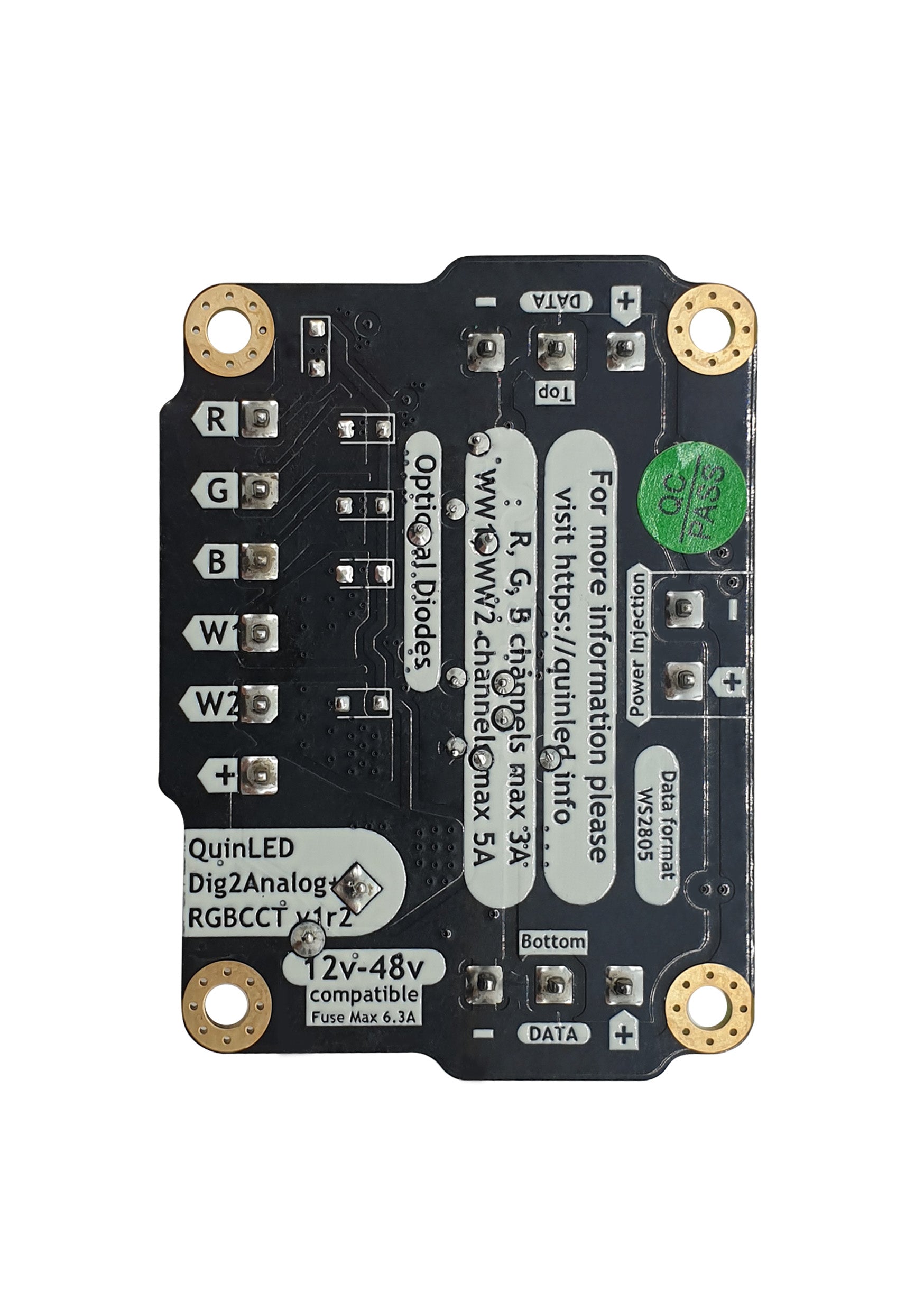

        QuinLED Dig2analog

        Dig2analog enables your digital QuinLED controllers to manage analog LED strips!

        The dig2analog is based on the WorldSemi WS2814F chip. This chip is used to “extract” the data for a single digital LED/Pixel and the board converts it to a PWM output, able to drive Dumb/Analog 12v or 24v LED strips with PWM up to RGBW.

        $7.49

        Dig2analog enables your digital QuinLED controllers to manage analog LED strips!

        The dig2analog is based on the WorldSemi WS2814F chip. This chip is used to “extract” the data for a single digital LED/Pixel and the board converts it to a PWM output, able to drive Dumb/Analog 12v or 24v LED strips with PWM up to RGBW.

        The board acts like a single digitally addressable LED and converts it to control dumb style RGBW LED strips.

        Dig2analog boards can be daisy chained and each acts as it´s own Pixel or LED.

        Sample use cases:

        • Use high quality, white Analog/Dumb LED strips (with CRI95) without any additional controller
        • Use much higher brightness Analog/Dumb LED strips
        • Hybrid staircase installations with “unlimited” number of steps (each step can do RGBW individually)
        • Long distance location from controller - if the spot you wish to control your analog strips is far away you can send the data signal there (including differentially) and then do the PWM dimming locally near the LED strip
        • You need lots of channels? - each dig2analog provides 4 individual channels but you can chain up to 400 of them on a single data connection!

        There are plenty of other use cases - please find the complete overview and set up instructions here:

        https://quinled.info/quinled-dig2analog/
